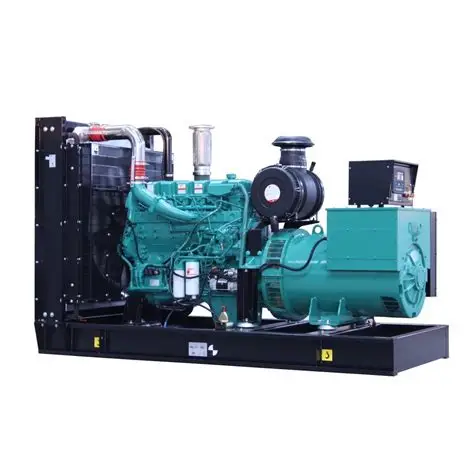

50HZ Cummins 6ZTAA13-G2 340kW/425kVA Diesel Generator Set

50HZ  340kW/425kVA Diesel Generator Set

1. Technical Parameter

2. Product Features

The Cummins 6ZTAA13-G2 340kW/425kVA diesel generator set is a high-power industrial power generation equipment built on Dongfeng Cummins mature 13L Z-series engine platform. As a mainstream 425kVA Cummins diesel generator in the medium and high-power power supply market, this unit focuses on high load capacity, stable continuous operation and strong environmental adaptability. It makes up for the power shortage of conventional 300kW-class units, and is widely favored in industrial standby power, off-grid main power supply and large-scale engineering power support scenarios, with reliable field operation performance verified by countless engineering projects.

2.1 Abundant Power Reserve, Strong Load Impact Resistance

Equipped with genuine Dongfeng Cummins 6ZTAA13-G2 turbocharged intercooled engine, the unit boasts 340kW prime continuous power and 380kW emergency standby power, with sufficient power margin reserved for complex load working conditions. Adopting professional air-air intercooling and turbocharging technology, the intake air density is effectively improved, fuel combustion is more sufficient, and power output is more explosive. It can cope with instantaneous impact load caused by simultaneous start-up of multiple large industrial equipment, without voltage drop or frequency fluctuation. The matched brushless self-excited alternator features fast excitation response and stable power output, which can fully meet the high-standard power demand of precision industrial equipment and automated production lines.

2.2 Optimized Fuel Control, Balanced Power and Energy Saving

This generator set is equipped with BYC PD fuel pump and GAC electronic governor, which can intelligently adjust fuel supply according to real-time load changes and realize precise fuel metering. Compared with traditional mechanical governor generator sets, it avoids excessive fuel consumption under low and medium load conditions. The full-load fuel consumption is controlled at 87.1L/H, achieving a good balance between high power output and economic operation. For large factories, mining projects and long-term field construction scenarios that require high-power continuous power supply, it can effectively reduce daily operating costs while ensuring stable power supply, with outstanding comprehensive cost performance.

2.3 Integrated Reinforced Structure, Low Failure Rate and Long Service Life

The 6ZTAA13-G2 engine adopts high-strength integral cast iron cylinder block and forged steel crankshaft, with excellent rigidity and vibration resistance, adapting to long-term high-load operation. The optimized integrated pipeline design reduces scattered external pipelines, effectively avoiding common faults such as pipeline aging, oil leakage and water leakage. The brushless self-excited alternator eliminates carbon brush wear, ablation and poor contact faults, greatly reducing daily maintenance frequency. The whole machine has fewer failure points and more stable mechanical performance, which can adapt to long-term uninterrupted operation and frequent start-stop standby working modes.

2.4 High-Grade Protection, Adaptable to Complex Harsh Working Conditions

The alternator adopts H-grade ultra-high temperature resistant insulation material, which can resist long-term high-temperature aging and maintain stable insulation performance in high-temperature workshops, outdoor hot environments and continuous high-load operation scenarios. The IP23 professional dustproof and waterproof protection grade can effectively block external dust, debris and splashing water, preventing internal circuit and mechanical failure caused by environmental erosion. Whether it is dusty open-air construction sites, humid coastal working environments or high-temperature industrial workshops, the unit can maintain stable operating state without frequent failures.

2.5 Simple Daily Maintenance and Complete After-Sales Support

Cummins 6ZTAA series engines feature high part universality and standardized modular design, making daily inspection, maintenance and parts replacement more convenient. The brushless alternator structure saves the regular carbon brush replacement work required by traditional generators, greatly reducing labor and material maintenance costs. Dongfeng Cummins has a complete national after-sales service system and sufficient spare parts inventory, which can quickly respond to user maintenance and overhaul demands, effectively shortening equipment downtime and ensuring long-term stable operation of the generator set.

3. Application Scenarios

With its 340kW high stable power output and strong environmental adaptability, the Cummins 6ZTAA13-G2 425kVA diesel generator set covers high-demand power supply scenarios in industry, engineering, commerce, public utilities and emergency rescue. It can be used as both long-term main power supply for off-grid areas and emergency standby power supply for grid-connected facilities, with extremely wide application coverage.

3.1 Large Industrial Factory Standby Power Supply

It is the preferred standby power equipment for large manufacturing plants, chemical enterprises, mining enterprises, building materials factories and mechanical processing bases. Large-scale industrial production involves numerous high-power equipment and continuous assembly line operation, and sudden grid power outage will cause huge economic losses and production stagnation. This high-power Cummins generator set can realize fast start and automatic switching, provide uninterrupted emergency power support for production lines, frequency conversion equipment and workshop supporting facilities, and guarantee the continuous and stable operation of industrial production.

3.2 Large-Scale Engineering & Mining Field Power Supply

Widely used in municipal key projects, highway and bridge engineering, railway infrastructure construction, open-pit mining, water conservancy projects and field exploration operations. Most remote construction and mining areas have no stable municipal grid coverage, and the 340kW prime power of the unit can be used as the main power source to provide stable power for large drilling equipment, hoisting machinery, on-site office systems and temporary living facilities. Its vibration-resistant and durable structure can fully adapt to harsh outdoor working conditions such as wind, sand, humidity and uneven foundation.

3.3 High-Standard Commercial & Public Facility Backup Power

Suitable for large comprehensive shopping malls, five-star hotels, high-rise office buildings, tertiary hospitals, campus facilities and government public institutions. These scenarios have dense personnel and involve key public service functions, requiring extremely high power supply stability and safety. In case of grid failure, seasonal power restriction, line overhaul and sudden power outage, the 380kW standby power reserve of the unit can be quickly put into operation to ensure the normal operation of medical rescue equipment, fire protection systems, elevator equipment and lighting ventilation systems, avoiding public safety accidents and service interruption losses.

3.4 Emergency Rescue & Off-Grid Remote Power Supply

The unit is also commonly used for flood prevention and disaster relief emergency power supply, field rescue temporary power consumption, remote mountain area power supply, pastoral area production power consumption and communication base station standby power. It features strong power performance, stable operation and convenient mobile deployment, which can solve the problem of independent power consumption in off-grid, remote and emergency scenarios, and provide reliable power guarantee for rescue work and remote area production and life.

4. Core Purposes

The Cummins 6ZTAA13-G2 340kW/425kVA diesel generator set is positioned as a high-power universal power generation device for industrial and engineering scenarios. It mainly solves the pain points of insufficient grid power supply capacity, sudden power outage risks and no grid power coverage in high-demand scenarios, and provides stable, efficient and low-maintenance power support for various industries. Its core purposes are divided into three categories.

4.1 Grid-Connected Emergency Standby Power Guarantee

This is the most mainstream core usage of the unit. For grid-connected industrial enterprises, commercial complexes and public service institutions with high power supply continuity requirements, it acts as professional emergency backup power equipment. When encountering sudden power outage, grid voltage fluctuation, seasonal peak power restriction and line failure, the generator set can start quickly and complete automatic power switching, effectively avoiding production shutdown, business interruption and safety hazards caused by power interruption, and ensuring the continuous operation of core equipment and key businesses.

4.2 Off-Grid Long-Term Main Power Supply

In remote mining areas, field construction bases, unconnected mountainous areas and water conservancy project sites without municipal grid coverage, the 340kW stable prime power of the unit can be used as long-term main power supply. Relying on mature power output technology and durable operation performance, it can support 24-hour uninterrupted power generation for a long time, fully meeting the daily production and living power demand of off-grid scenarios, and is a high-reliability independent power generation solution.

4.3 Power Grid Peak Shaving & Load Supporting

In regions with tight seasonal power supply and prominent peak power consumption pressure, the unit can be used as peak shaving power equipment. It can be started in time during industrial peak power consumption periods to share the overload pressure of municipal power grid, effectively solve the problem of enterprise production restriction and equipment shutdown caused by grid power shortage, and ensure the smooth progress of peak production tasks of industrial enterprises.

5. Common FAQ

5.1 What is the actual usage difference between prime power and standby power of 6ZTAA13-G2 generator set?

The 340kW/425kVA prime power is the rated continuous power of the unit, supporting 24-hour long-term uninterrupted operation and allowing short-term 10% overload operation, which is specially designed for off-grid main power supply and long-term continuous power generation scenarios. The 380kW/475kVA standby power belongs to emergency peak power, only applicable to short-time power supply when municipal grid fails. It cannot operate continuously for a long time, otherwise it will cause excessive engine load, accelerate wear of internal parts, and greatly shorten the overall service life of the generator set. In actual use, users need to select the power mode according to daily operation demands to avoid long-term overload operation.

5.2 What core advantages does Cummins 6ZTAA13-G2 generator set have in power stability?

This unit adopts Dongfeng Cummins 6ZTAA13-G2 professional generator drive engine, matched with GAC electronic governor and AVR automatic voltage regulation system. The electronic governor can accurately control speed fluctuation within a small range and intelligently adjust fuel supply with load changes. The turbocharged intercooled intake structure ensures sufficient and stable power output. Even in the state of sudden load increase or mixed load operation, the voltage and frequency can remain stable without obvious fluctuation, which can well protect precision electrical equipment and industrial production lines from power quality problems.

5.3 What harsh working environments can IP23 protection grade and H-grade insulation adapt to?

The IP23 protection grade can effectively block large solid dust particles and prevent splashing water from all directions, which can adapt to open-air construction sites, dusty mining areas, humid coastal environments and semi-outdoor workshop power supply scenarios. The H-grade high-temperature resistant insulation is a high-standard generator insulation material, which can maintain stable insulation performance in the temperature range of -20℃ to +45℃, and will not have insulation aging, breakdown and short-circuit faults after long-term high-load and high-temperature operation. The dual high-standard configuration greatly improves the environmental tolerance of the unit and ensures stable and fault-free operation in various complex working conditions.
