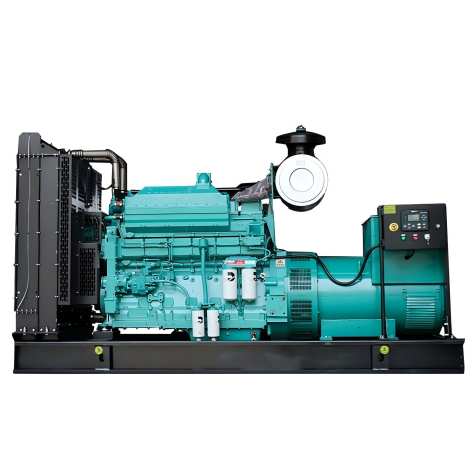

50HZ Cummins KT38-G 500kW/625kVA Diesel Generator Set

50HZ Cummins  500kW/625kVA Diesel Generator Set

1. Technical Parameter

2. Product Features

The Cummins KT38-G 500kW/625kVA diesel generator set is a large-displacement heavy-duty power generation unit of Cummins classic K38 series. As a high-performance 625kVA Cummins diesel generator widely used in large industrial parks, super engineering projects and key national infrastructure, this model adopts a 12-cylinder V-type large-displacement engine structure. It features ultra-strong power reserve, excellent full-load continuous operation capability and extreme working condition adaptability. After decades of market verification and field iteration, this generator set has stable mechanical performance and low failure rate, and is recognized as a reliable high-power power supply solution for long-term high-load and high-standard power guarantee scenarios.

2.1 37.8L Super Large Displacement, Surplus Power Reserve

Powered by genuine CCEC KT38-G professional generator-specific engine, the unit adopts 12-cylinder V-type four-stroke structure, matched with turbocharging and air-air intercooled intake technology. The 37.8L ultra-large displacement and 14.5:1 high-efficiency compression ratio achieve thorough diesel combustion and efficient power conversion. It stably outputs 500kW long-term prime power and supports 560kW/700kVA emergency standby power supply. Compared with conventional inline six-cylinder generators of the same power level, it has more sufficient power margin, which can easily cope with instantaneous impact load caused by simultaneous startup of multiple large-scale heavy equipment. It maintains zero power attenuation and stable voltage and frequency output during 24-hour full-load continuous operation, fully meeting the ultra-high load power demand of large industrial projects.

2.2 Mature PT Mechanical System, Extremely High Operational Stability

Equipped with Cummins classic PT mechanical fuel direct injection system, the KT38-G generator set realizes precise fuel metering and stable mechanical speed regulation. Different from mainstream electronic control generators that are sensitive to complex environments, the pure mechanical control structure has no vulnerable electronic control modules, with strong anti-interference ability. It can operate stably for a long time in dusty mining areas, humid coastal environments, high-temperature industrial workshops and unstable power grid conditions. The mechanical speed regulation response is accurate and sensitive, effectively avoiding voltage flicker and frequency drift during frequent load switching, providing high-quality pure sine wave power supply for precision instruments and automated production lines.

2.3 Heavy-Duty Reinforced Structure, Super Durability

The whole engine adopts high-strength cast iron cylinder block and integral forged steel crankshaft, with overall structural rigidity far exceeding ordinary medium-power generator sets. The V-type 12-cylinder symmetrical layout effectively reduces unit vibration and operating noise during high-load operation. The wear-resistant cylinder liner and reinforced transmission components are specially optimized for long-term heavy-duty working conditions, resisting mechanical fatigue and part aging. Matched with genuine Cummins Fleetguard dual high-precision filter system, it effectively intercepts fuel and oil impurities, protects internal precision parts, greatly extends equipment service life, and adapts to years of uninterrupted continuous power generation in heavy industrial scenarios.

2.4 High-Standard Protection Configuration, All-Weather Adaptability

The matched brushless self-excited alternator completely abandons traditional carbon brush vulnerable parts, eliminating common faults such as carbon brush ablation, poor contact and sudden power failure. It adopts H-grade ultra-high temperature resistant insulation material, which can resist long-term high-temperature aging and maintain stable insulation performance under continuous full-load operation. The IP23 professional dustproof and waterproof protection grade can effectively block external dust, debris and splashing water, avoiding circuit short circuit and mechanical damage caused by environmental erosion. Whether it is open-air engineering sites, semi-outdoor equipment rooms, dusty mining workshops or humid coastal areas, the unit can realize all-weather stable startup and continuous operation.

2.5 Low Maintenance Cost & High Long-Term Cost Performance

As a mature classic model of Cummins K38 series, the KT38-G generator set has extremely high market popularity and complete after-sales service system nationwide. Spare parts are highly universal and adequately supplied, with low replacement and maintenance costs. The brushless alternator design saves regular carbon brush replacement and circuit debugging work, reducing daily maintenance workload. The simple and reliable mechanical structure does not require complex professional debugging, which is convenient for on-site personnel to conduct daily inspection and fault troubleshooting. With ultra-low failure rate and long service cycle, it effectively reduces later equipment downtime loss and comprehensive operating costs.

3. Application Scenarios

Relying on its 625kVA high-power stable output, 700kVA super standby reserve and strong harsh environment adaptability, the Cummins KT38-G 500kW diesel generator set is widely used in large heavy industry, national key infrastructure, mining development, urban core public facilities and emergency disaster relief fields. It can freely switch between off-grid long-term main power supply and grid-connected emergency standby power modes, covering all high-standard and high-load industrial power demand scenarios.

3.1 Large Heavy Industrial Production Standby Power

It is the core emergency backup power equipment for large chemical industrial parks, metallurgical and smelting bases, cement building material factories, large machinery manufacturing plants and new energy industrial bases. Large-scale heavy industrial production relies on uninterrupted operation of high-power assembly lines, smelting equipment and automated control systems. Sudden grid power outage, peak power restriction or grid voltage fluctuation will cause massive production shutdown and huge economic losses. This high-reserve Cummins generator set can start quickly and complete automatic power switching in a short time, providing continuous and stable power guarantee for core production equipment, workshop safety monitoring systems and fire protection linkage facilities, ensuring zero interruption of industrial production.

3.2 Super Large Engineering & Mining Main Power Supply

Widely used as long-term main power supply for large open-pit mining, deep tunnel engineering, national water conservancy hubs, long-distance highway and railway construction and large-scale field exploration projects. Most remote mining areas and super engineering construction sites lack stable municipal grid coverage, and have characteristics of harsh environment, long construction cycle and continuous high-load power consumption. The 500kW stable prime power of the unit can support 24-hour uninterrupted power supply for large drilling equipment, hoisting machinery, mixing systems and on-site living facilities. Its strong vibration resistance, dust resistance and high-temperature resistance fully adapt to extreme field working conditions.

3.3 Core Urban Public & Transportation Facility Emergency Power

Applicable to urban tertiary comprehensive hospitals, large airport hubs, railway stations, urban subway operation centers, super high-rise business districts and government key institutions. These core public facilities have extremely strict requirements for power supply safety and continuity, and any power interruption will trigger public safety risks and social service paralysis. In case of sudden power outage, grid line failure and routine power grid maintenance, the 560kW/700kVA standby power reserve can be quickly put into operation to ensure the normal operation of medical rescue equipment, traffic dispatching systems, fire protection systems and emergency lighting, guaranteeing the stable operation of urban core functional facilities.

3.4 Emergency Rescue & Off-Grid Key Project Power Guarantee

The unit is also commonly configured for flood control and drought relief emergency power supply, post-disaster reconstruction temporary power consumption, remote island development, pastoral large-scale breeding bases and national large communication base station cluster standby power. It features fast startup, stable operation and strong load resistance, which can solve the problem of independent power consumption in off-grid, remote and emergency scenarios, providing reliable high-power power support for key emergency work and remote economic construction.

4. Core Purposes

The Cummins KT38-G 500kW/625kVA diesel generator set is positioned as a large-displacement heavy-duty high-power power generation equipment for high-load, long-duration and high-standard power guarantee scenarios. It focuses on solving the industry pain points of insufficient power reserve, poor continuous load resistance and unstable operation of medium and small-power generators, and provides all-weather, low-failure and high-reliability power support for large industrial and key engineering projects.

4.1 Grid-Connected High-Level Emergency Standby Power Guarantee

This is the most mainstream core usage of the unit. For grid-connected large industrial enterprises, urban core public facilities and key transportation hubs with zero power interruption requirements, it acts as a high-standard emergency backup power source. When encountering sudden grid power failure, seasonal peak power rationing, line aging faults and grid voltage instability, the generator set can realize instant startup and automatic switching, effectively avoiding production shutdown, public service suspension and safety accidents caused by power interruption, and ensuring the continuous and stable operation of core equipment and key businesses.

4.2 Off-Grid Long-Term High-Load Main Power Supply

In remote mining areas, super large field engineering bases, unconnected islands and water conservancy project sites without municipal grid coverage, the 500kW stable prime power of the unit serves as long-term main power supply. Relying on 37.8L ultra-large displacement power advantage and mature PT mechanical fuel supply technology, it can support 24-hour uninterrupted full-load power generation all year round, adapt to complex and harsh extreme working environments, and fully meet the long-term high-load power demand of off-grid key projects.

4.3 Power Grid Peak Shaving & Industrial Load Peak Supplement

In industrial-intensive regions with tight seasonal power supply and severe power shortage, the unit can be used as professional grid peak shaving power equipment. It can be quickly started during industrial peak power consumption periods to share municipal grid load pressure, make up for grid power supply gaps, effectively solve the problem of enterprise production restriction and equipment shutdown caused by power shortage, and ensure the smooth progress of peak production tasks of large industrial enterprises.

5. Common FAQ

5.1 What is the actual usage difference between prime power and standby power of KT38-G generator set?

The 500kW/625kVA prime power is the rated continuous operating power of the unit, supporting 24-hour long-term uninterrupted power generation and allowing short-term 10% overload operation. It is mainly used for off-grid main power supply, mining continuous power supply and long-term industrial high-load production scenarios. The 560kW/700kVA standby power is emergency peak power, only designed for short-time power supply when the municipal grid fails. Long-term continuous operation at standby power is strictly prohibited, which will cause excessive engine load, accelerated wear of internal moving parts, increased fuel consumption and shortened overall service life of the Cummins diesel generator set. Users must select the corresponding power mode according to actual working conditions to ensure stable equipment operation.

5.2 What core advantages does KT38-G have over ordinary 625kVA diesel generators?

Compared with conventional ordinary 625kVA generator sets on the market, the KT38-G model has obvious comprehensive advantages. First, it adopts 37.8L super large-displacement 12-cylinder V-type heavy-duty engine, with 700kVA ultra-high standby power reserve, far stronger overload resistance and high-load sustainability than ordinary inline six-cylinder units. Second, the mature full mechanical PT fuel system has extremely low failure rate in dusty, humid and high-temperature harsh environments, with stronger environmental adaptability than electronic control generators. Third, the heavy-duty reinforced structure and genuine Cummins supporting accessories greatly improve equipment durability, reduce later maintenance frequency and comprehensive operating costs, and have higher cost performance for long-term large-scale industrial and engineering applications.

5.3 What working conditions can IP23 protection grade and H-grade insulation adapt to?

The IP23 dustproof and waterproof protection grade can effectively block large solid dust particles and all-directional splashing water, fully adapting to open-air construction sites, dusty mining workshops, semi-outdoor equipment rooms and humid coastal working environments. The H-grade high-temperature resistant insulation material can maintain stable insulation performance in the temperature range of -20℃ to +45℃, and will not age or break down after long-term high-load and high-temperature continuous operation. Matched with the professional closed-circuit forced water cooling system and vibration-resistant heavy-duty structure, the unit can operate stably in extreme high-temperature, low-temperature, dusty and humid complex environments, realizing all-weather reliable power supply for various key scenarios.
