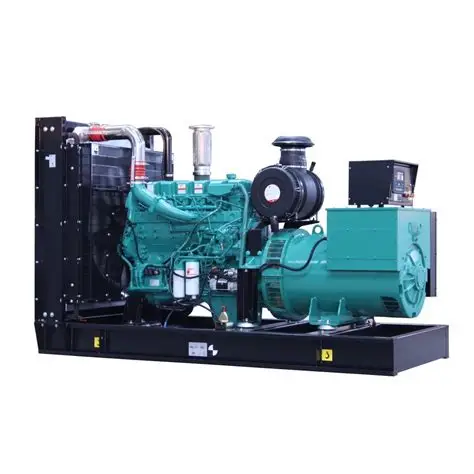

50HZ Cummins KT38-GA 580kW/725kVA Diesel Generator Set

50HZ Cummins 580kW/725kVA Diesel Generator Set

1.  Technical Parameter

2. Product Characteristics of Cummins KT38-GA Diesel Generator Set

As a high-power industrial power supply equipment, Cummins KT38-GA 580kW/725kVA prime power diesel generator set is widely recognized in the power equipment industry for its stable performance, energy-saving economy and strong environmental adaptability. This 800kVA standby power diesel generator set adopts original Cummins KT38-GA dedicated G-drive engine, with mature and reliable core technology, and is suitable for long-term continuous power supply and emergency standby power scenarios.

First of all, the unit has excellent power output stability. Equipped with brushless self-excited alternator and H-grade high-temperature resistant insulation structure, it effectively avoids power failure and voltage fluctuation caused by insulation aging during long-term high-load operation. The IP23 protection grade can resist dust and splashing water in outdoor and industrial environments, greatly improving the equipment's environmental tolerance. With precise electronic speed regulation and voltage regulation technology, the steady-state voltage and frequency deviation are controlled within ultra-low range, which can perfectly adapt to sensitive electrical equipment and avoid equipment damage caused by unstable power supply.

Secondly, the unit has outstanding fuel economy and operational durability. The Cummins KT38-GA engine adopts four-stroke turbocharged intercooled design and direct injection fuel supply system, with full-load fuel consumption of only 170L/H. While ensuring strong power output, it effectively reduces the operating cost of long-term power generation. The 12-cylinder V-type cylinder arrangement structure makes the engine run more smoothly, with low vibration and low noise, and the overall failure rate is far lower than similar high-power generator sets. It supports 24-hour continuous operation, and the overhaul cycle is long, which greatly reduces later maintenance and after-sales cost.

In addition, the unit has strong overload capacity and safety performance. The prime power is 580kW (725kVA), and the standby power can reach 640kW (800kVA), realizing 110% short-term overload operation, which can cope with instantaneous power surge of industrial equipment. The built-in multi-dimensional protection system includes overvoltage, undervoltage, overcurrent, overload, overheating and automatic shutdown protection functions. The intelligent control system supports real-time data monitoring, fault alarm and remote start-stop, which is convenient for centralized management of equipment and improves the safety and intelligence level of power supply.

Finally, the unit has good scalability and adaptability. It can be matched with silent enclosure, mobile trailer, parallel cabinet and other accessories according to user needs, realizing silent power generation, mobile power supply and multi-unit parallel operation. It can adapt to high altitude, high temperature and harsh industrial working conditions, and is a cost-effective high-power diesel generator set in the industrial power supply market.

3. Application Scenarios

Cummins KT38-GA 725kVA industrial diesel generator set, with its high power, high stability and high reliability, covers multiple fields of industrial production, infrastructure construction and emergency power guarantee, and is the mainstream power supply equipment for medium and large-scale power demand scenarios.

Industrial Manufacturing Field: It is widely used in factory production lines, processing workshops, mechanical equipment supporting power supply in chemical plants, mining plants, metallurgical plants and manufacturing parks. For industrial enterprises with high requirements for power supply continuity, this 580kW prime power generator set can be used as the main power supply to ensure the stable operation of production equipment and avoid production shutdown losses caused by grid power failure.

Engineering Construction Field: It is suitable for temporary power supply of outdoor engineering projects such as road and bridge construction, municipal engineering, railway engineering and oil and gas field exploration. The mobile and adaptable characteristics of the unit can adapt to complex construction site environments without fixed power grid support, providing stable power guarantee for construction machinery, living facilities and engineering equipment.

Commercial and Public Infrastructure: It serves as emergency standby power supply for large shopping malls, hospitals, schools, office buildings, data centers and communication base stations. Once the municipal power grid is cut off, the 800kVA standby diesel generator set can start quickly to ensure the normal operation of fire protection system, medical equipment, communication equipment and emergency lighting, reducing public safety risks and economic losses.

Special Industry Scenarios: It is applicable for power guarantee of new energy supporting projects, rental power supply projects, field exploration operations and remote island power supply. For non-grid or unstable grid areas, the unit can be used as long-term main power supply; for peak power shortage periods of industrial parks, it can be used as peak shaving power supply to supplement grid power shortage.

4. Core Purpose

The core purpose of Cummins KT38-GA 580kW/725kVA diesel generator set is to provide stable, efficient and safe continuous and emergency power guarantee for medium and large-scale power demand scenarios, solving the problems of insufficient grid power, unstable power supply and power failure emergency response in various industries.

As a prime power generation equipment, it can replace the municipal power grid for long-term continuous power supply in remote areas, industrial parks and field operation sites without complete power grid facilities, meeting the daily production and operation power demand of enterprises and projects, and solving the power supply dilemma of off-grid scenarios.

As a standby emergency power supply equipment, it is the core power guarantee for key industries and important places. When the municipal power grid fails, trips or is overhauled, the unit can start rapidly to take over the power supply, ensure the uninterrupted operation of key equipment, avoid production suspension, data loss and safety accidents caused by power failure, and maximize the economic and safety benefits for users.

At the same time, the unit can also be used as peak shaving power supply for industrial power consumption peaks. In the peak period of regional power grid tension and power limit, it can supplement power supply for enterprises, ensure the continuous progress of production tasks, and effectively avoid production losses caused by power grid peak limit.

5. Common FAQ

Q1: What is the difference between prime power and standby power of Cummins KT38-GA generator set?

Prime power (580kW/725kVA) refers to the long-term continuous usable power of the unit, which supports 24-hour uninterrupted operation and occasional short-term overload, suitable for long-term main power supply scenarios. Standby power (640kW/800kVA) is the maximum emergency power of the unit, which is only used for short-time power supply in case of grid power failure, and cannot operate continuously for a long time. In actual use, the long-term operating load of the unit is recommended to be controlled within 80% of the prime power to extend the service life of the equipment.

Q2: What are the daily maintenance key points of KT38-GA diesel generator set?

Daily maintenance mainly includes regular inspection of engine oil, coolant and diesel fuel level to ensure sufficient and clean materials; check the tightness of pipeline joints to avoid oil leakage and water leakage; clean the air filter regularly to prevent dust blockage from affecting combustion efficiency; inspect the alternator and control system lines to ensure stable circuit connection. In addition, after 200 hours of operation, replace the engine oil and filter element, and conduct a comprehensive inspection of turbocharger and fuel injection system every 1000 hours to ensure the stable performance of the unit.

Q3: Is this generator set suitable for high-altitude and high-temperature working environments?

Yes, the Cummins KT38-GA unit has strong environmental adaptability. The optimized turbocharger and intercooling system can adapt to high-altitude low-pressure environments, and the water-cooled heat dissipation system can effectively cope with high-temperature working conditions. The H-grade insulation alternator and IP23 protection structure can resist high temperature aging and outdoor dust splashing. It can operate stably in most complex working environments such as high altitude, high temperature and outdoor open-air sites, meeting the power supply needs of harsh industrial scenarios.
