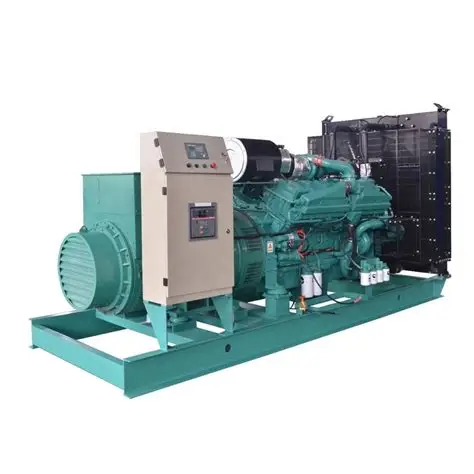

50HZ Cummins KTA19-G3 360kW/450kVA Diesel Generator Set

50HZ Cummins  360kW/450kVA Diesel Generator Set

1. Technical Parameter

2. Product Features

The Cummins KTA19-G3 360kW/450kVA diesel generator set is a classic heavy-duty industrial power generation device launched by Chongqing Cummins. As a hot-selling 450kVA Cummins diesel generator widely used in high-load industrial and engineering scenarios, this unit adopts the mature KTA19 heavy-duty engine platform with 18.9L large displacement design. It delivers strong power output, ultra-high operational reliability and excellent load resistance, making up for the power shortage and insufficient durability of medium-displacement generator sets. After decades of market verification, this model has stable performance, low failure rate and strong scene adaptability, and is widely recognized in the field of industrial standby power and off-grid main power supply.

2.1 Large Displacement Heavy-Duty Engine, Strong Power Reserve

Powered by genuine Chongqing Cummins KTA19-G3 professional generator drive engine, the unit features 6-cylinder inline layout and 18.9L super large displacement, matched with turbocharging and water-air intercooled intake technology. It greatly improves air intake efficiency and fuel combustion adequacy, realizing strong and continuous power output. The rated 360kW prime power supports 24-hour long-term uninterrupted operation, while the 400kW/500kVA standby power provides sufficient emergency power margin. It can easily cope with instantaneous load surge and frequent load changes caused by simultaneous start-up of multiple high-power equipment, with far stronger impact resistance than ordinary same-power generator sets.

2.2 Mature PT Fuel System, Stable and Reliable Operation

Equipped with Cummins exclusive PT mechanical fuel injection system and dual flyweight governor, the KTA19-G3 unit achieves precise fuel metering and sensitive speed regulation response. The self-adjusting fuel supply structure can adapt to different load working conditions, effectively avoiding power jitter and speed fluctuation. Different from electronic control engines that are sensitive to environmental interference, the mature mechanical fuel system has fewer vulnerable parts and stronger anti-interference ability, and can operate stably in dusty, humid and high-temperature harsh environments for a long time. The full-load fuel consumption is stably controlled at 97L/H, maintaining a reasonable energy consumption level while ensuring high-power output.

2.3 Reinforced Structural Design, Super Durability

The engine adopts high-strength alloy cast iron cylinder block and forged steel crankshaft, equipped with replaceable wet cylinder liner and gallery-cooled piston structure. This optimized structural design enhances the overall rigidity and vibration resistance of the unit, effectively reducing mechanical wear during long-term high-load operation. The independent dual overspeed protection device can realize automatic shutdown protection in case of abnormal speed, avoiding equipment damage caused by overspeed failure. The whole machine has compact layout and firm structure, which can adapt to long-duration continuous power generation and frequent start-stop standby modes, with a service life far exceeding conventional generator sets of the same power level.

2.4 High-Standard Protection Configuration, Wide Environmental Adaptability

The matched brushless self-excited alternator uses H-grade ultra-high temperature resistant insulation materials, which can resist long-term high-temperature aging and maintain stable insulation performance in high-temperature workshops and continuous high-load operation scenarios. The IP23 professional dustproof and waterproof protection grade can effectively block external dust, debris and splashing water, preventing internal circuit short circuit and mechanical failure caused by environmental erosion. Whether it is open-air construction sites, dusty mining areas, humid coastal environments or semi-outdoor industrial workshops, the unit can maintain stable operating state all year round without frequent failures.

2.5 Low Maintenance Difficulty, High Cost Performance

The KTA19 series engine has a highly mature mechanical structure with simple maintenance logic and strong part universality. The brushless alternator cancels traditional carbon brush wearing parts, eliminating frequent carbon brush replacement and maintenance work. Cummins has a complete nationwide after-sales service system and sufficient spare parts supply, which can quickly respond to daily maintenance and fault overhaul demands. The low failure rate and convenient maintenance features greatly reduce the later operation and maintenance costs for users, making it very suitable for long-term industrial and engineering application scenarios.

3. Application Scenarios

Benefiting from large displacement power advantage, high operational stability and strong harsh environment adaptability, the Cummins KTA19-G3 360kW/450kVA diesel generator set covers multiple high-demand fields such as heavy industry manufacturing, large-scale engineering construction, public facility power guarantee and emergency disaster relief. It can be used as both long-term main power supply for off-grid areas and emergency standby power supply for grid-connected facilities, with extremely wide market applicability.

3.1 Heavy Industrial Manufacturing Standby Power

It is the preferred emergency backup power equipment for large chemical plants, metallurgical enterprises, mining processing plants, building material factories and heavy machinery manufacturing bases. Heavy industrial production involves high-power equipment and continuous assembly line operation, and sudden grid power outage will cause huge economic losses and production safety risks. This high-power Cummins generator set can start quickly and realize automatic power switching, providing uninterrupted power support for production lines, frequency conversion equipment, workshop fire protection systems and safety monitoring facilities, ensuring stable and continuous operation of heavy industrial production.

3.2 Large-Scale Engineering & Mining Field Main Power

Widely used as the main power supply for municipal key projects, highway and bridge engineering, railway infrastructure, open-pit mining, water conservancy hubs and field geological exploration operations. Most remote construction sites and mining areas lack stable municipal grid coverage. The 360kW continuous prime power of the unit can provide long-term stable power for large drilling machinery, hoisting equipment, mixing equipment, on-site office systems and construction living facilities. Its high vibration resistance and harsh environment adaptability can fully cope with outdoor wind, sand, humidity and high-temperature working conditions.

3.3 High-End Public & Commercial Facility Backup Power

Suitable for large commercial complexes, five-star hotels, high-rise office buildings, comprehensive tertiary hospitals, urban traffic hubs and government public institutions. These personnel-intensive and service core scenarios have ultra-high requirements for power supply stability and safety. In case of sudden power outage, seasonal peak power restriction, grid voltage fluctuation and line maintenance, the 400kW standby power reserve can be quickly put into operation to ensure the normal operation of medical rescue equipment, elevator systems, fire protection linkage devices and emergency lighting systems, avoiding public safety accidents and service interruption losses.

3.4 Emergency Rescue & Off-Grid Remote Power Supply

The unit is also commonly used for flood prevention and disaster relief emergency power supply, field rescue temporary power consumption, remote mountain area power supply, pastoral area production power consumption and communication base station standby power. It features stable operation, low failure rate and convenient mobile deployment, which can solve the problem of independent power consumption in off-grid, remote and emergency scenarios, providing reliable power guarantee for emergency rescue work and remote area production and living needs.

4. Core Purposes

The Cummins KTA19-G3 360kW/450kVA diesel generator set is positioned as a high-reliability heavy-duty power generation equipment for high-load industrial and engineering scenarios. It focuses on solving the industry pain points of insufficient grid power supply capacity, poor power supply stability and no grid coverage in high-demand scenarios, and provides stable, efficient and low-maintenance power support for various industries.

4.1 Grid-Connected Emergency Standby Power Guarantee

This is the most mainstream core usage of the unit. For grid-connected heavy industrial enterprises, commercial complexes and public service institutions with high power supply continuity requirements, it acts as professional emergency backup power equipment. When encountering sudden power outage, seasonal peak power restriction, grid voltage instability and line failure, the generator set can start quickly and complete automatic power switching, effectively avoiding production shutdown, business suspension and safety hazards caused by power interruption, and ensuring continuous operation of core production equipment and key public service businesses.

4.2 Off-Grid Long-Term Independent Main Power Supply

In remote mining areas, field construction bases, unconnected mountainous areas and water conservancy project sites without municipal grid support, the 360kW stable prime power of the unit can be used as long-term main power supply. Relying on the 18.9L large-displacement heavy-duty engine and mature PT fuel supply technology, it can support 24-hour uninterrupted power generation all year round, fully meeting the daily production and living power demand of off-grid scenarios. It is a high-cost-performance and high-reliability independent power generation solution for remote field projects.

4.3 Power Grid Peak Shaving & Industrial Load Support

In regions with tight seasonal power supply and prominent industrial peak power consumption pressure, the unit can be used as grid peak shaving power equipment. It can be started in time during industrial peak power consumption periods to share municipal grid load pressure, effectively solve the problem of enterprise production restriction and equipment shutdown caused by grid power shortage, and ensure the smooth progress of peak production tasks of heavy industrial manufacturing enterprises.

5. Common FAQ

5.1 What is the difference between prime power and standby power of KTA19-G3 generator set in actual use?

The 360kW/450kVA prime power is the rated continuous power of the unit, supporting 24-hour long-term uninterrupted operation and allowing short-term 10% overload operation, which is suitable for off-grid main power supply and long-term continuous power generation scenarios. The 400kW/500kVA standby power is emergency peak power, only designed for short-time power supply when municipal grid fails. It cannot operate continuously for a long time, otherwise it will cause excessive engine load, accelerate wear of internal moving parts, and greatly shorten the overall service life of the Cummins diesel generator set. Users must distinguish the two power modes according to actual working conditions to avoid long-term overload operation.

5.2 What core advantages does Cummins KTA19-G3 large-displacement generator have over same-power models?

Compared with conventional medium-displacement generator sets of the same power, the KTA19-G3 unit adopts 18.9L large-displacement heavy-duty engine with 13.5:1 reasonable compression ratio, featuring stronger power reserve and better load impact resistance. The mature Cummins PT mechanical fuel system has higher operational stability and lower failure rate in harsh environments than electronic control systems. Equipped with dual overspeed protection and reinforced structural design, the whole machine has higher durability and longer service life. Although the full-load fuel consumption is 97L/H, its stable high-load operation capability and ultra-low maintenance frequency bring higher comprehensive cost performance for long-term industrial use.

5.3 What complex working conditions can IP23 protection and H-grade insulation adapt to?

The IP23 dustproof and waterproof protection grade can effectively block large solid dust particles and all-directional splashing water, fully adapting to open-air construction sites, dusty mining areas, humid coastal environments and semi-outdoor workshop power supply scenarios. The H-grade high-temperature resistant insulation is a high-standard generator insulation material, which can maintain stable insulation performance in the temperature range of -20℃ to +45℃, and will not age or break down after long-term high-load and high-temperature operation. Cooperated with closed-circuit water cooling system, the unit can operate stably in summer high-temperature environments without overheating protection, ensuring reliable operation in various complex harsh working conditions.
