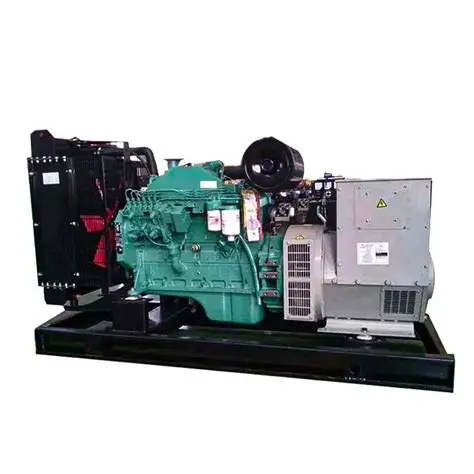

50HZ Cummins KTA38-G2B 640kW/800kVA Diesel Generator Set

50HZ Cummins 640kW/800kVA Diesel Generator Set

1. Technical Parameter

2. Product Features of Cummins KTA38-G2B 800kVA Diesel Generator Set

The Cummins KTA38-G2B 640kW prime power diesel generator set is a heavy-duty industrial high-power power generation device developed for high-load and continuous power supply scenarios. Equipped with the original CCEC Cummins KTA38-G2B dedicated generator engine, this 880kVA standby diesel generator set has stable power output, strong overload resistance and extremely high operational reliability, and is one of the most widely used high-power generator models in industrial heavy-load power supply fields.

In terms of power performance, this 800kVA industrial diesel generator set adopts a classic 12-cylinder V-type layout with turbocharging and aftercooling technology. The matched Cummins PT fuel injection system can achieve precise fuel supply and efficient combustion, ensuring sufficient and continuous power output under full-load working conditions. The rated prime power reaches 640kW, which can support long-term uninterrupted power supply, while the 704kW standby power provides sufficient power margin, effectively coping with instantaneous power surge and heavy equipment startup impact in industrial production, avoiding sudden voltage drop and power supply instability.

In terms of structural durability and maintenance convenience, the KTA38-G2B engine adopts replaceable wet cylinder liner design. This structure delivers excellent heat dissipation performance during high-load operation and allows quick disassembly and replacement during later maintenance, greatly shortening equipment maintenance time and reducing enterprise operating costs. The integral alloy cast iron cylinder block and built-in pressure lubrication pipeline effectively reduce operational vibration and mechanical failure rate, making the whole unit run more stably and adapt to long-term high-intensity industrial operation.

In terms of power generation stability and safety protection, the unit is equipped with a high-performance brushless self-excited alternator. Compared with traditional brushed alternators, it eliminates carbon brush wear, poor contact and frequent failure problems, realizing maintenance-free excitation operation. Combined with H-grade ultra-high temperature resistant insulation material, it can resist insulation aging and electrical breakdown caused by long-term high-load and high-temperature operation. The IP23 professional protection grade can block outdoor dust, floating debris and splashing water, adapting to open-air construction sites, factory workshops and other complex working environments. The built-in multi-dimensional intelligent protection system supports automatic alarm and shutdown for overload, overvoltage, undervoltage, low oil pressure and overheating faults, which effectively guarantees the safe operation of the unit and on-site equipment.

In terms of equipment scalability and practicability, this heavy-duty Cummins generator set supports 24-hour full-load continuous operation and multi-unit parallel power expansion, which can meet the power supply demand of large-scale industrial park cluster power consumption. Users can also configure silent enclosure, mobile trailer, automatic transfer switch and remote monitoring system according to actual project needs, realizing silent power generation, mobile emergency power supply and unattended automatic switching operation, fully adapting to diversified power supply demands of different industries.

3. Main Application Scenarios

With ultra-high load resistance and stable continuous power supply capability, the Cummins KTA38-G2B 640kW diesel generator set is mainly oriented to heavy industrial production, large-scale engineering construction, key public infrastructure and emergency power guarantee fields, and is widely recognized in high-power continuous power supply and backup power industries.

Heavy Industrial Production Power Supply: It is widely used as the main power supply for large chemical plants, coal mines, metal smelting plants, building material processing bases and large industrial manufacturing parks. For industrial enterprises with high continuous power consumption and strict requirements on power supply stability, the 640kW prime power can replace municipal power grid for long-term operation, ensuring the continuous operation of production lines, mechanical processing equipment and supporting systems, and avoiding huge economic losses caused by power grid failure and production shutdown.

Large Engineering Construction Temporary Power Supply: This 800kVA Cummins diesel generator set is the preferred power supply equipment for large municipal engineering, highway and bridge construction, railway hub projects, water conservancy facilities construction and oil and gas field exploration and development. Most remote construction sites have no stable grid support, and the unit’s strong environmental adaptability and high-load operation capability can provide stable and reliable power guarantee for large construction machinery, on-site temporary living facilities and engineering testing equipment.

Key Public Infrastructure Emergency Backup: It serves as core standby power equipment for urban large-scale data centers, communication hub base stations, tertiary hospitals, comprehensive shopping malls, office buildings and subway operation systems. Once the municipal power grid trips, fails or is shut down for maintenance, the 880kVA standby power unit can start quickly and complete power switching in a short time, ensuring the normal operation of medical rescue equipment, data storage systems, communication equipment and fire protection linkage systems, and maintaining the normal operation of urban key public facilities.

Off-grid and Peak-shaving Power Supply Scenarios: It is suitable for long-term independent power supply in remote islands, mountainous mining areas, field operation bases and other areas without grid coverage. At the same time, in the peak power consumption period of industrial parks and regional grid power shortage, it can be used as peak-shaving power supply to make up for grid power supply gap, solve the problem of enterprise production restriction and shutdown due to power limit, and ensure the continuity of industrial production tasks.

4. Core Product Purpose

The core purpose of the Cummins KTA38-G2B 640kW/800kVA diesel generator set is to provide high-reliability continuous main power supply and emergency standby power guarantee for high-load, high-demand and high-standard industrial and public scenarios, solving the pain points of insufficient grid power, unstable power supply and difficult emergency response in large-scale power consumption scenarios.

As a heavy-duty prime power generation equipment, this high-power Cummins generator set relies on 640kW stable continuous output and 24-hour full-load operation capability to provide long-term stable power support for off-grid industrial bases, remote field operation sites and large factories with insufficient grid capacity. It completely meets the high-intensity power consumption demand of heavy industrial equipment, and is the core power guarantee for off-grid production and operation scenarios.

As a high-power emergency standby power equipment, the 704kW/880kVA standby power reserve provides sufficient power safety margin for key scenarios. When the municipal power grid fails unexpectedly, the unit can respond and start quickly to take over the power supply, effectively avoiding production suspension, data loss, medical treatment interruption and safety accidents caused by power outages, and protecting the operational safety and economic benefits of enterprises and public institutions.

As an industrial peak-shaving power supply device, it can effectively supplement the power shortage during the peak period of regional power grid tension. It helps enterprises get rid of the restriction of grid power consumption peaks, ensures uninterrupted progress of production tasks, and improves the overall production efficiency and economic benefits of industrial projects.

5. Common FAQ

Q1: What is the difference between prime power and standby power of KTA38-G2B generator set in actual use?

The 640kW/800kVA prime power is the long-term sustainable operating power of the unit, supporting 24-hour uninterrupted continuous operation and daily conventional load operation, which is suitable for long-term main power supply scenarios. The 704kW/880kVA standby power is the short-term emergency peak power, only used for temporary power supply when the municipal power grid fails, and does not allow long-term continuous full-load operation. In daily use, it is recommended to control the operating load within 80% of the prime power to reduce unit wear and prolong service life.

Q2: What are the core maintenance advantages of Cummins KTA38-G2B engine?

The biggest maintenance advantage of the KTA38-G2B engine is the adopt of replaceable wet cylinder liner structure. Compared with dry cylinder liner engines, it has better heat dissipation effect under high load, and the cylinder liner can be replaced independently without disassembling the whole engine block, which greatly reduces maintenance difficulty and time cost. In addition, the engine has high parts generalization degree, stable PT fuel system performance and low daily failure rate, effectively reducing the later operation and maintenance cost of the generator set.

Q3: What kind of working environment is this 800kVA diesel generator set suitable for?

This industrial-grade generator set has excellent environmental adaptability. The water circulation cooling system can cope with long-term high-temperature operation conditions, and the IP23 protection grade can resist daily dust erosion and water splash. The H-grade high-temperature resistant alternator can work stably under high-load and high-temperature environments for a long time. It is fully applicable to harsh scenarios such as industrial workshops, open-air construction sites, mining sites and chemical plants, and can adapt to most conventional industrial and engineering power supply environments.
