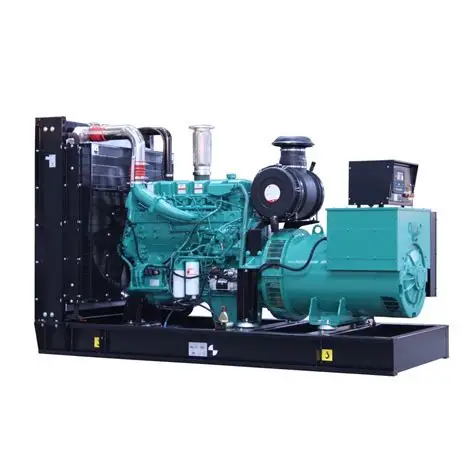

50HZ Cummins QSK60-G4 1600kW/2000kVA Diesel Generator Set

50HZ Cummins 1600kW/2000kVA Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The Cummins QSK60-G4 1600kW/2000kVA diesel generator set is a premium heavy-duty industrial power generation unit built on Cummins mature Quantum series technology platform. As a high-performance 2000kVA prime power diesel generator widely favored in ultra-large industrial and critical infrastructure projects, this model adopts exclusive HPI high-pressure injection technology and full-authority electronic control system. It delivers exceptional long-running durability, precise load response and stable high-power output, effectively solving the common drawbacks of insufficient power reserve and short service life of conventional large-displacement generator sets, making it a cost-effective and reliable high-power power solution for continuous prime power and mission-critical standby power applications.

In terms of power performance and load adaptability, this industrial Cummins diesel generator set features a 16-cylinder 60° V-type layout and 60.2L large displacement design with extended stroke structure, bringing stronger low-speed torque reserve and load impact resistance. Equipped with a high-efficiency pulse turbocharger and aftercooled air intake system, the engine ensures sufficient oxygen supply and complete fuel combustion even under 100% full-load long-term operation. The 1600kW stable prime power rating supports round-the-clock non-stop heavy-duty production, fully meeting the high-intensity power demand of large automated production lines, heavy mining machinery and super industrial equipment. Meanwhile, the 1760kW/2200kVA high standby power reserve provides ample safety margin, enabling instant response to sudden load surges and large equipment startup shocks with minimal voltage and frequency fluctuation during dynamic load switching.

In terms of fuel control and operational economy, the QSK60-G4 engine is equipped with Cummins professional HPI high-pressure direct injection system and G-Drive dedicated governor control system. Different from traditional mechanical fuel regulation structures, the full electronic fuel supply system intelligently adjusts injection volume and timing in real time according to actual operating load, realizing precise fuel distribution and ultra-fine atomization. With a controlled full-load fuel consumption of 394L/H, the unit maintains efficient combustion status during long-term high-power operation, effectively reducing carbon accumulation and unnecessary fuel waste. Matched with an electric priming dual-stage fuel filter and water separator, it effectively removes diesel impurities and moisture, greatly improving adaptability to on-site industrial diesel quality and lowering daily fuel system failure risks.

In terms of structural durability and maintenance advantages, the QSK60-G4 heavy-duty engine adopts a reinforced cast iron cylinder block, regrindable heavy-duty crankshaft and high-strength connecting rod structure, which significantly enhances mechanical rigidity and vibration resistance during high-intensity operation. Benefiting from optimized dual-pump dual-loop closed cooling system and full-pressure circulating lubrication system, the unit achieves balanced heat dissipation and lubrication protection under high-temperature and heavy-load working conditions. The most prominent advantage is its ultra-long 20,000-hour overhaul service life, which greatly reduces long-term equipment maintenance frequency and comprehensive operational costs for industrial users.

In terms of power generation safety and environmental adaptability, the supporting brushless self-excited alternator eliminates traditional carbon brush and slip ring wearing parts, achieving long-term maintenance-free excitation operation and cutting down daily inspection and maintenance workload. Adopting premium H-grade high-temperature resistant insulation materials, the alternator can resist insulation aging and electrical breakdown caused by persistent high-load and high-temperature operation. The IP23 industrial protection grade effectively blocks outdoor dust, floating debris and splashing rainwater, allowing stable operation in open-air construction yards, dusty mining workshops and outdoor fixed generator rooms. Complying with EPA Tier 2 emission standards, the unit features low smoke and low pollutant discharge, fully meeting green environmental assessment requirements for modern industrial parks and national key engineering projects.

In terms of flexible expandability and intelligent operation, this electronically controlled Cummins high-power generator supports multi-unit parallel operation to expand system power supply capacity, satisfying cluster power demand for super-large industrial bases and large-scale data center parks. Users can optionally configure silent canopy, mobile trailer chassis, ATS automatic transfer switch and remote cloud monitoring system to realize unattended automatic grid switching, silent power generation and mobile emergency power supply, adapting to diversified high-power power supply scenarios.

3. Main Application Scenarios

Thanks to its ultra-long service life, stable full-load continuous operation capability, precise electronic control and low-emission environmental performance, the Cummins QSK60-G4 1600kW diesel generator set is widely deployed in super-heavy industrial continuous production, national key infrastructure construction, large-scale IDC data center clusters, urban lifeline facilities and remote off-grid power supply projects, covering all high-standard power guarantee scenarios requiring high stability and long-duration operation.

Super Heavy Industrial Continuous Power Supply: It serves as the core prime power source for large mining groups, metallurgical smelting bases, ultra-large chemical industrial parks, building material manufacturing bases and heavy machinery processing factories. These heavy industrial scenarios require 24-hour uninterrupted power supply and cannot tolerate sudden power outages. The 1600kW stable continuous output can completely replace municipal grid power for long-term off-grid operation, ensuring continuous operation of automated production lines and large heavy-duty equipment, and avoiding huge economic losses caused by production suspension.

National Key Large-scale Engineering Construction: This 2000kVA Cummins diesel generator set is the preferred power guarantee equipment for cross-sea bridge projects, large water conservancy hubs, onshore and offshore oil and gas field exploitation, high-speed railway construction bases and remote field exploration operations. Most remote large-scale projects lack stable municipal grid coverage and have strict environmental protection standards. The QSK60-G4’s excellent harsh environment adaptability and EPA Tier 2 low-emission performance can provide stable and reliable high-power power support for large construction machinery and on-site supporting facilities.

Large IDC Data Center & Communication Hub Emergency Backup: It acts as the critical emergency standby power unit for ultra-large cloud data center clusters, 5G core communication hubs and network operation centers. Data center power supply demands extreme continuity and stability. The 2200kVA high standby power margin and fast electronic load response enable seamless grid switching within milliseconds once mains power fails, ensuring uninterrupted operation of server clusters, data storage systems and communication transmission equipment, and preventing data loss and network system paralysis.

Urban Core Lifeline Infrastructure Power Guarantee: The unit is widely applied in Grade-A tertiary hospitals, urban rail transit systems, large financial centers, commercial complexes and government emergency command centers. As an indispensable backup power source for urban lifeline facilities, it can quickly take over power supply during grid trips, sudden faults or routine power maintenance, guaranteeing normal operation of medical rescue equipment, fire linkage systems and public service equipment, and safeguarding urban operational safety.

Off-grid Power Supply & Grid Peak Shaving: It is ideal for long-term independent power supply in remote islands, plateau mining areas and field operation bases without grid coverage. During peak power consumption periods with municipal grid tension and power shortage, it can be used as a high-power peak-shaving power unit to fill grid power gaps, relieve regional power supply pressure, solve enterprise production restriction problems caused by power rationing, and ensure continuous industrial production tasks.

4. Core Product Purpose

The core purpose of the Cummins QSK60-G4 1600kW/2000kVA diesel generator set is to provide long-life, high-stability, low-emission continuous prime power support and high-reliability emergency standby power guarantee for super-large industrial projects and mission-critical public infrastructure, solving the industry pain points of short overhaul cycle, poor high-load durability and slow load response of traditional large-displacement generator sets.

As a long-life heavy-duty prime power generation unit, this Cummins QSK60-G4 industrial generator relies on 60.2L large displacement and 1600kW stable continuous power output to provide 24-hour uninterrupted main power for off-grid super industrial parks and heavy production bases with insufficient grid capacity. The HPI high-pressure injection system and full-authority electronic control ensure efficient and stable operation under long-term variable-load and high-temperature conditions, meeting the high-efficiency and low-consumption operation requirements of modern heavy industry.

As a 2200kVA high-capacity emergency standby power device, the 1760kW ultra-high standby power reserve fully meets the strict power safety standards of large data centers, medical institutions and rail transit facilities. It features fast startup and seamless switching capability during mains failure, effectively avoiding major losses such as data paralysis, medical treatment interruption and large-scale production shutdown, and greatly improving the emergency risk resistance capability of key facilities.

As an intelligent grid peak shaving and off-grid power supply equipment, it can accurately compensate for peak power shortages of municipal grids. With real-time fault self-diagnosis, predictive maintenance and adaptive load adjustment functions, it realizes unattended intelligent operation, effectively relieving grid power supply pressure, helping enterprises avoid peak power limit restrictions, and maximizing operational safety, environmental benefits and long-term economic returns of power supply projects.

5. Common FAQ

Q1: What practical advantages does QSK60-G4 have over QSK50 series generator engines?

The QSK60-G4 belongs to Cummins higher-grade 60-series heavy-duty G-Drive engine, which is an upgraded iteration of the conventional QSK50 series. It adopts a larger 60.2L displacement and extended stroke design, delivering stronger torque reserve and higher full-load operational stability. Equipped with exclusive HPI high-pressure direct injection and professional G-Drive governor system, it achieves more precise fuel control and faster load response. The dual-pump dual-loop cooling structure ensures more balanced heat dissipation under long-term heavy load. Most importantly, it supports a 20,000-hour ultra-long overhaul cycle, far exceeding the service life of QSK50 series units, which significantly reduces long-term maintenance costs for industrial users.

Q2: What is the recommended daily operating load range for this 2000kVA diesel generator set?

Based on actual industrial operation experience and factory maintenance specifications, the optimal continuous operating load of this unit is controlled between 50% and 80% of the 1600kW rated prime power. This load range allows the HPI fuel system and electronic control system to operate in the best matching state, minimizing carbon deposition, mechanical wear and ineffective fuel consumption. In emergency power failure scenarios, the unit supports 110% short-term overload operation relying on 2200kVA standby power, but continuous overload operation exceeding 1 hour is strictly prohibited to prevent irreversible damage to the high-pressure fuel system and H-grade alternator insulation structure.

Q3: What harsh working environments can this IP23 brushless generator set adapt to?

This industrial-grade QSK60-G4 high-power generator has passed strict environmental adaptation tests and has outstanding field reliability. The IP23 protection grade can effectively resist daily dust accumulation, floating debris and splashing rainwater, adapting to open-air construction sites, mining operation yards and outdoor fixed generator rooms. The H-grade high-temperature resistant alternator maintains stable power generation efficiency under long-term high-load and high-temperature conditions. Matched with the engine’s dual-stage air filtration, water separation device and efficient dual-loop cooling system, it can operate reliably in high-temperature, high-dust, high-altitude and humid harsh environments, fully meeting the power supply needs of heavy industry, field engineering and urban core emergency standby scenarios.
