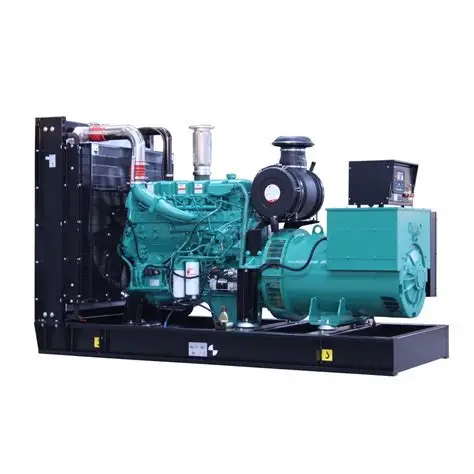

50HZ Cummins QST30-G4 800kW/1000kVA Diesel Generator Set

50HZ Cummins 800kW/1000kVA Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The Cummins QST30-G4 800kW/1000kVA diesel generator set is a new generation of high-efficiency, low-emission industrial power generation equipment launched for medium and large-scale heavy-load power supply scenarios. Equipped with the original Cummins QST30-G4 Quantum series G-Drive professional power generation engine, this 1100kVA standby diesel generator set stands out in the 1000kVA high-power generator market with electronic intelligent control, ultra-low fuel consumption, compact rigid structure and environmentally friendly emission performance, and is widely recognized in industrial continuous power supply and emergency backup power fields.

In terms of power performance and response speed, this 1000kVA industrial diesel generator set adopts a 50° V12 cylinder compact layout, matched with Holset HX82 high-efficiency turbocharger and low-temperature aftercooling system. It fully optimizes air intake efficiency and fuel mixing ratio, achieving rapid power response and stable power output. The 800kW long-term sustainable prime power can meet 24-hour uninterrupted heavy-load power demand of large industrial equipment, while the 880kW/1100kVA standby power provides sufficient power margin. It can instantly cope with equipment startup impact and instantaneous power surge, with extremely low transient voltage and frequency deviation, perfectly adapting to industrial sensitive loads and high-precision electrical equipment.

In terms of energy saving and environmental protection advantages, the QST30-G4 engine is equipped with Cummins exclusive Quantum high-pressure electronic fuel system, with an injection pressure up to 1100bar. It realizes full-authority electronic fuel regulation without mechanical linkage adjustment, making fuel injection more accurate and combustion more sufficient. The full-load fuel consumption is only 202L/H, which has obvious energy-saving advantages compared with traditional same-power generator sets. Meanwhile, the unit supports Tier 4 Final and Stage V emission standards, effectively reducing exhaust emissions and operating noise, meeting the environmental protection requirements of modern industrial parks and urban key projects.

In terms of structural durability and maintenance convenience, the whole machine adopts high-strength cast iron pistons and integral rigid cylinder block structure, with strong compression resistance and wear resistance, adapting to long-term high-intensity industrial operation. The dual-loop independent cooling system separates engine body cooling and aftercooler cooling, ensuring stable temperature control under full-load and high-temperature working conditions and avoiding power attenuation caused by overheating. The electronic control module integrates PGI power generation interface, which supports real-time fault diagnosis, data monitoring and remote intelligent management, greatly reducing daily inspection and maintenance difficulty. Compared with traditional mechanical engines, it has fewer vulnerable parts and lower long-term operation failure rate.

In terms of power generation stability and safety protection, the unit is equipped with a mature brushless self-excited alternator. It eliminates carbon brush wear, poor contact and spark failure problems of traditional brushed generators, realizing long-term maintenance-free excitation operation. Supported by H-grade ultra-high temperature resistant insulation materials, it can resist insulation aging and electrical breakdown under long-term high-load and high-temperature environments. The IP23 industrial protection grade can effectively block outdoor dust, floating debris and splashing rainwater, adapting to open-air construction sites, dusty workshops and other harsh working conditions. The built-in multi-dimensional intelligent protection system covers overload, overvoltage, undervoltage, low oil pressure, overheating and short-circuit automatic alarm and shutdown functions, fully ensuring the safe and stable operation of the unit and on-site electrical equipment.

In terms of scenario adaptability and scalability, this heavy-duty Cummins generator set supports multi-unit parallel operation to expand power supply capacity, and can be freely matched with silent canopy, mobile trailer, ATS automatic transfer switch and remote monitoring system according to project needs. It can flexibly switch between main power supply and emergency standby power modes, adapting to diversified power supply demands such as industrial continuous power supply, engineering temporary power supply and urban emergency backup power.

3. Main Application Scenarios

Relying on intelligent electronic control, low fuel consumption, low emission and strong heavy-load resistance, the Cummins QST30-G4 800kW diesel generator set covers multiple high-standard power supply fields such as heavy industrial production, large-scale key engineering, urban core infrastructure, new energy supporting facilities and remote off-grid power supply, and is the preferred high-power power supply equipment for high-standard environmental protection projects.

Heavy Industrial Continuous Power Supply: It is widely used as the main power supply equipment for large mining enterprises, chemical industrial parks, metallurgical bases, building material factories and large manufacturing parks. For modern industrial scenarios with high requirements for power supply stability, energy consumption control and environmental protection indicators, the 800kW stable prime power output can replace municipal grid power supply for a long time, ensuring continuous operation of production lines and large mechanical equipment, and avoiding economic losses caused by grid power failure and power restriction.

Large Key Engineering Temporary Power Supply: This 1000kVA low-emission diesel generator set is suitable for power guarantee of national key projects, highway and bridge construction, railway engineering, water conservancy and hydropower projects, and oil and gas field exploration and development. Many outdoor construction sites have no stable grid support and have strict environmental protection requirements. The unit’s low-noise and low-emission performance can meet on-site environmental protection standards, while its strong load resistance ensures stable power supply for construction machinery and on-site living facilities.

Urban Core Infrastructure Emergency Standby: It serves as the core emergency standby power source for large data centers, communication hub base stations, tertiary hospitals, urban rail transit, commercial complexes and government office buildings. In case of municipal grid trip, sudden failure or routine maintenance power outage, the 1100kVA standby power unit can start quickly and complete seamless power switching, ensuring the normal operation of medical rescue equipment, data storage systems, communication transmission and fire protection linkage systems, and safeguarding urban public operation safety.

Off-grid Power Supply and Grid Peak Shaving: It is applicable to long-term independent power supply in remote islands, plateau field operation bases, mountain mining areas and other off-grid regions. In addition, during the peak power consumption period of regional grid tension, it can be used as grid peak-shaving power supply to make up for grid power shortage, relieve municipal power supply pressure, solve enterprise production restriction problems, and ensure the continuity of industrial production tasks.

4. Core Product Purpose

The core purpose of the Cummins QST30-G4 800kW/1000kVA diesel generator set is to provide intelligent, energy-saving and environmentally friendly high-reliability power guarantee for modern high-standard industrial production and key public scenarios, solving the pain points of high energy consumption, high emission, slow response and difficult maintenance of traditional high-power generator sets.

As a high-efficiency heavy-duty prime power generation equipment, this Cummins QST30-G4 electronic control generator set relies on 800kW long-term stable output and 24-hour heavy-duty operation capability to provide long-term independent main power supply for off-grid industrial bases, remote engineering projects and large factories with insufficient grid capacity. The precise electronic fuel control system effectively reduces operating fuel consumption, helping enterprises reduce long-term production costs and meet green production standards.

As a low-emission emergency standby power equipment, the 880kW/1100kVA standby power reserve provides sufficient safety power margin for key scenarios with high power supply reliability and environmental protection requirements. It can respond and start rapidly when the municipal power grid fails, effectively avoiding data loss, medical interruption and production shutdown losses caused by power outages, while ensuring that the power generation process meets urban environmental protection emission standards.

As an intelligent grid peak-shaving power supply device, it can accurately compensate power shortage during grid peak periods. With fast transient load response and intelligent diagnosis function, it realizes unattended operation, relieves municipal grid power supply pressure, helps industrial enterprises get rid of peak power restriction constraints, and maximizes project operational economic benefits and environmental benefits.

5. Common FAQ

Q1: What are the core advantages of QST30-G4 engine compared with traditional KTA series engines?

The QST30-G4 is a new generation Quantum electronic control engine, completely different from traditional mechanical KTA series models. It adopts 1100bar high-pressure electronic fuel injection and full-authority electronic control, with more accurate fuel supply, lower fuel consumption of 202L/H under full load, and more sufficient combustion. Equipped with dual-loop independent cooling and low-temperature aftercooling technology, it has more stable temperature control and no power attenuation under high temperature and heavy load. In addition, it supports Tier 4 Final ultra-low emission standards, with lower noise and exhaust pollution, which is more in line with modern green industrial production requirements.

Q2: What is the recommended load range for daily operation of this 1000kVA diesel generator set?

For long-term continuous main power supply, it is recommended to control the daily operating load between 50% and 80% of the 800kW prime power. This optimal load range can give full play to the electronic control fuel-saving advantage, reduce engine carbon deposition and mechanical wear, and extend the service life of the unit. In emergency situations, the unit supports 110% short-term overload operation with 1100kVA standby power, but continuous overload for more than 1 hour is not allowed to avoid damage to the alternator insulation and engine fuel system.

Q3: What complex working environments can this IP23 brushless generator set adapt to?

This industrial-grade generator set has excellent comprehensive environmental adaptability. The IP23 protection grade resists daily dust accumulation and splashing rainwater, suitable for open-air construction sites, mining sites and factory workshops. The H-grade high-temperature resistant alternator operates stably under long-term high-load and high-temperature conditions. Matched with the QST30-G4 engine’s high-efficiency cooling system and high-altitude adaptive performance, it can work normally in high temperature, high dust and high-altitude harsh environments, fully meeting the power supply needs of industrial production, engineering construction and urban emergency standby scenarios.
