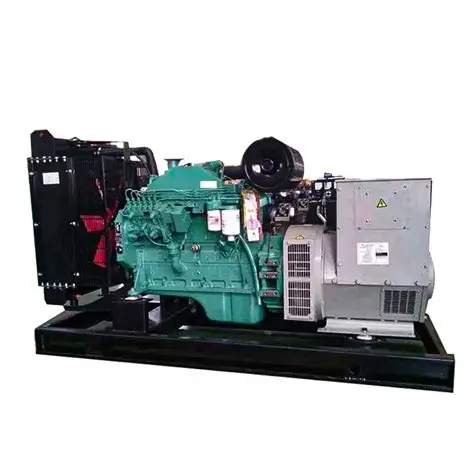

60Hz Cummins 6LTAA8.9-G2 208kW/260kVA Diesel Generator Set

60Hz Cummins 208kW/260kVA  Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The 60Hz Cummins 6LTAA8.9-G2 208kW/260kVA diesel generator set is a high-performance medium-to-large power generation equipment upgraded based on Cummins mature 8.9L displacement engine technology. Tailored for global 60Hz power grid standards, this industrial genset balances strong power output, stable continuous operation and economical fuel consumption. It has always been a hot-selling medium-large Cummins diesel generator set in the industrial power supply market, widely recognized for its reliable quality, low failure rate and long service life.

Powered by genuine Dongfeng Cummins 6LTAA8.9-G2 industrial engine, the unit adopts an advanced 6-cylinder in-line 4-stroke structure and professional turbocharged after-cooled air intake system. The optimized 16.6:1 compression ratio and BYC P7100 high-precision fuel injection pump realize uniform fuel atomization and sufficient combustion, effectively improving power conversion efficiency while reducing incomplete combustion energy loss. The 8.9L large-displacement design provides abundant power reserve, enabling the genset to maintain stable 208kW prime power output under long-term full-load and variable-load working conditions. It effectively avoids power attenuation and operation jitter common in ordinary medium-power generator sets during high-intensity continuous operation.

Matched with high-quality brushless self-excited alternator, this 260kVA Cummins genset abandons the traditional brushed excitation structure with vulnerable carbon brushes and slip rings. Without wearable excitation components, the equipment failure rate is greatly reduced, and daily maintenance difficulty and cost are effectively lowered. Equipped with H-class ultra-high temperature resistant insulation materials and IP23 dustproof and rainproof protection grade, the alternator can resist harsh working environments such as high temperature, humidity, dust and outdoor wind erosion. The full copper winding design features low heat generation and high conductivity, cooperating with intelligent AVR automatic voltage regulation system to control voltage and frequency within standard fluctuation range, ensuring high-quality and stable power supply for precision industrial and commercial equipment.

In terms of intelligent safety protection, the unit is equipped with a professional integrated electronic control system, supporting one-key start-stop, real-time operating data monitoring, remote operation linkage and automatic fault diagnosis. It has comprehensive safety protection functions including over-speed, over-voltage, under-voltage, over-current, low oil pressure and high water temperature automatic shutdown. Once abnormal operating conditions occur, the system will immediately trigger alarm and protection shutdown to avoid equipment burnout and operational safety accidents. The factory-matched integrated water cooling system has efficient heat dissipation performance, adapting to long-term high-temperature outdoor operation and ensuring the continuous and stable operation of the whole unit.

In terms of practicality and economy, the 100% full-load fuel consumption is only 59L/H, achieving a perfect balance between high power output and low operating energy consumption. Compared with same-power competing gensets, this 6LTAA8.9-G2 model has higher power density and better load adaptability. The whole machine adopts serialized and standardized accessory configuration, with complete global after-sales service network and convenient spare parts procurement. Its ultra-low failure rate and long service cycle greatly reduce the long-term operation and maintenance cost for users, making it highly cost-effective for long-term industrial fixed operation and mobile field power supply.

3. Main Application Scenarios

As a mainstream 260kVA 60Hz industrial diesel generator set, Cummins 6LTAA8.9-G2 has excellent power stability and environmental adaptability. It can be used as both long-term prime power supply and emergency standby power supply, covering industrial manufacturing, commercial supporting, infrastructure construction, public facilities and off-grid power supply fields, and is suitable for all medium and large load power demand scenarios.

Industrial Manufacturing Scenarios: This 208kW prime power diesel generator set is widely applied in machinery processing factories, chemical plants, building materials production bases, food processing enterprises and medium-sized industrial parks. For industrial sites with large power consumption and high requirements for power supply continuity, the unit can serve as the main power generation equipment to support long-term stable operation of production lines, mechanical equipment and supporting electrical systems. It can also act as emergency backup power to prevent production shutdown and economic losses caused by sudden municipal power failure or grid fluctuation.

Commercial & Public Service Scenarios: Relying on 228kW/285kVA sufficient standby power reserve, the genset is very suitable for high-rise office buildings, large shopping malls, star hotels, municipal hospitals, schools and comprehensive public buildings. These scenarios have strict requirements for power supply safety and continuity. In case of power grid maintenance, sudden power failure or line failure, the unit can start quickly and switch power supply automatically, ensuring the normal operation of fire protection systems, elevator equipment, medical rescue instruments, monitoring systems and public lighting facilities, avoiding public safety risks and operational paralysis.

Field Engineering Construction Scenarios: It is the preferred temporary power supply equipment for road and bridge engineering, municipal infrastructure construction, oil field exploitation, mining operations and remote field construction projects. Most outdoor construction sites are far away from urban power grids and lack stable municipal power support. The rugged structure and strong environmental adaptability of the 6LTAA8.9-G2 genset enable it to operate stably in high temperature, low temperature, dusty and windy complex environments, fully meeting the power demand of construction machinery, welding equipment, engineering detection tools and on-site temporary living electricity.

Off-grid & Special Industry Scenarios: The unit is widely used in remote mountainous areas, islands, pastoral areas and other off-grid power supply areas, as well as unattended scenarios such as communication base stations, water pump stations, environmental monitoring stations and power transmission facilities. The Cummins 6LTAA8.9-G2 engine has excellent low-temperature start-up performance and extreme environment resistance, which can provide 24-hour stable independent power guarantee for special equipment that cannot be powered off, ensuring the normal operation of regional production and unattended equipment.

4. Core Product Purpose

The core purpose of the Cummins 6LTAA8.9-G2 208kW/260kVA 60Hz diesel generator set is to provide stable, efficient and cost-effective medium-large power supply solutions for global 60Hz power standard areas and medium and high load power demand scenarios. It solves the common pain points of insufficient power reserve, unstable output and high energy consumption of ordinary medium-power generator sets in industrial continuous power supply and emergency backup scenarios.

In off-grid areas, power-deficient industrial zones and remote field operation bases, this genset acts as reliable prime power generation equipment. With 208kW continuous stable prime power output, it supports long-term uninterrupted power supply for industrial production, engineering construction and staff daily life, ensuring the sustainable progress of production and construction tasks. The optimized fuel combustion technology effectively controls full-load fuel consumption, helping enterprises reduce daily power supply operating costs and improve operational benefits.

In urban commercial areas and industrial parks with complete power grid facilities, the unit serves as professional emergency standby power equipment. The 228kW/285kVA sufficient standby power reserve can quickly respond to sudden power failure, power grid overhaul and grid fluctuation emergencies, instantly take over the power supply of core production equipment and key public service facilities, effectively avoiding equipment damage, production stagnation and safety accidents caused by power interruption, and guaranteeing the continuity and safety of enterprise operation and public services.

With mature Cummins engine technology, low-maintenance brushless alternator structure and intelligent safety protection system, this 260kVA diesel generator set has extremely low failure rate and long service life. It reduces equipment maintenance frequency and later human and material resource investment, and has become one of the most popular and cost-effective medium-large power Cummins gensets in the 60Hz market, meeting the long-term power guarantee needs of small and medium-sized enterprises, engineering projects and public institutions.

5. Frequently Asked Questions (FAQ)

Q1: What is the difference between prime power and standby power of the 6LTAA8.9-G2 diesel generator set?

Prime power (208kW/260kVA) is the rated continuous operating power of the genset, supporting 24-hour long-term uninterrupted operation and standard short-time overload operation, which is mainly used for long-term main power supply in off-grid areas, power-deficient industrial zones and field construction scenarios. Standby power (228kW/285kVA) is the maximum emergency power reserve of the unit, only applicable for short-time power supply during municipal power failure or unexpected emergencies, and does not support long-term full-load operation. In actual daily use, it is recommended to control the operating load within the prime power range to reduce engine wear and prolong the overall service life of the generator set.

Q2: What practical advantages does the brushless self-excited alternator of this 260kVA Cummins genset bring?

The brushless self-excited alternator equipped on 6LTAA8.9-G2 genset cancels traditional carbon brushes and slip ring wearable parts, fundamentally eliminating common faults such as carbon brush wear, poor contact and spark ignition during long-term operation. Matched with H-class high-temperature resistant insulation and IP23 dustproof and waterproof protection grade, it can adapt to harsh industrial and outdoor working environments. Equipped with AVR automatic voltage regulation technology, it outputs stable voltage and frequency with low power supply distortion, which can well protect precision electrical equipment. Meanwhile, it features low daily maintenance workload and low failure rate, perfectly adapting to long-term unattended continuous operation of industrial sites.

Q3: What is the standard daily maintenance cycle for Cummins 6LTAA8.9-G2 generator set?

This Cummins industrial genset implements standardized graded maintenance. Routine inspection is required before each start-up, including checking fuel volume, lubricating oil level, cooling water capacity and circuit connection tightness, and cleaning surface dust and sundries after shutdown. The first maintenance including engine oil and filter replacement shall be carried out after 50 hours of initial operation. Oil filter, fuel filter and air filter need to be replaced every 250 hours of operation. A comprehensive inspection and maintenance of fuel injection system, turbocharger, cooling system and electronic control system shall be completed every 500 hours. Strictly following the factory maintenance cycle can effectively maintain the unit’s power performance and stable operation state.
