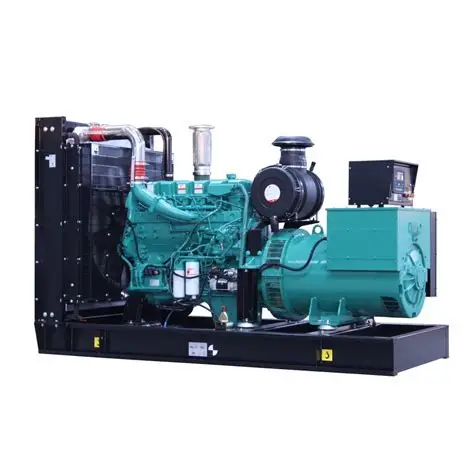

60Hz Cummins 6LTAA9.5-G1 256kW/320kVA Diesel Generator Set

60Hz Cummins  256kW/320kVA  Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The 60Hz Cummins 6LTAA9.5-G1 256kW/320kVA diesel generator set is a high-performance medium-large power generation unit tailored for global 60Hz power grid markets. Adopting Cummins mature 9.5L large-displacement industrial engine technology, this G1 model delivers stronger power reserve, faster transient load response and more stable continuous operation compared with conventional medium-power gensets. As a hot-selling 320kVA Cummins diesel generator set for industrial and commercial power supply, it stands out for high power density, reliable mechanical performance and low long-term failure rate, perfectly fitting medium and high-load power demand scenarios that require long-duration stable operation.

Powered by authentic Dongfeng Cummins 6LTAA9.5-G1 industrial diesel engine, the unit features a rugged 6-cylinder in-line 4-stroke structure and professional turbocharged after-cooled air intake design. The 9.5L large displacement and 16.6:1 optimized compression ratio work with Bosch high-precision direct injection fuel system to achieve uniform fuel atomization and full combustion, effectively improving energy conversion efficiency and reducing incomplete combustion loss. Equipped with an electronic governor, the engine realizes sensitive speed regulation and precise power output adjustment, which can instantly respond to sudden load increases and frequent load fluctuations in industrial production. Even during long-term full-load operation, the unit maintains stable 256kW prime power output without obvious power attenuation or operational jitter, showing excellent high-load durability.

Matched with premium brushless self-excited alternator, this 320kVA industrial genset eliminates traditional carbon brush and slip ring wearable components. The brushless excitation structure avoids common faults such as carbon brush wear, poor contact and electric sparks, greatly lowering daily maintenance frequency and operational failure risks. With H-class ultra-high temperature resistant insulation materials and IP23 dustproof and rainproof protection grade, the alternator can withstand harsh working conditions including high temperature, high humidity, dust accumulation and outdoor wind erosion. The full pure copper winding design ensures low heat generation, high conductivity and anti-aging performance, cooperating with intelligent AVR automatic voltage regulation system to keep voltage and frequency fluctuation within minimal range, supplying clean and stable power for precision automation equipment and core electrical systems.

In terms of intelligent control and safety protection, the genset is equipped with a dedicated electronic monitoring controller, supporting one-key start-stop, real-time operating data display, remote linkage control and automatic fault diagnosis. It integrates comprehensive safety protection functions including over-speed, over-voltage, under-voltage, over-current, low oil pressure, high water temperature and overload automatic shutdown. Once abnormal operating parameters are detected on site, the system triggers real-time alarm and emergency shutdown to protect the unit from burnout and prevent operational safety accidents. The factory-matched integrated water cooling system provides efficient and stable heat dissipation, ensuring 24-hour uninterrupted stable operation in high-temperature environments without overheating shutdown.

In terms of on-site adaptability and economic performance, the cast iron cylinder block structure of the 6LTAA9.5-G1 engine features strong vibration resistance and structural stability, adapting to complex working environments of industrial workshops and field construction sites. The optimized fuel calibration controls 100% full-load fuel consumption at 68L/H, achieving a balanced combination of high power output and controllable operating cost. With standardized serialized accessories and a complete global Cummins after-sales network, spare parts replacement and daily maintenance are highly convenient. This 256kW Cummins diesel generator set has a longer service life and lower comprehensive operation cost than similar products, delivering outstanding cost performance in medium-large power genset applications.

3. Main Application Scenarios

This Cummins 6LTAA9.5-G1 320kVA 60Hz diesel generator set has excellent high-load resistance and variable-load operation stability. It can serve as both long-term prime power supply and emergency standby power supply, covering heavy industrial manufacturing, large commercial facilities, field engineering construction, municipal public utilities and off-grid power supply fields, and is widely applicable for all medium and high-load scenarios requiring high-reliability uninterrupted power supply.

Medium and Heavy Industrial Manufacturing Scenarios: The stable 256kW prime power makes it ideal for mechanical processing plants, chemical production bases, building materials factories, textile manufacturing enterprises and medium-sized industrial parks. Industrial production features large instantaneous load and long-duration continuous power consumption, requiring strict power supply stability. This high-power genset can act as the main power generation equipment in power-deficient industrial zones to support stable operation of production lines, transmission machinery and supporting electrical facilities. It also serves as core emergency backup power to prevent large-area production shutdown and economic losses caused by sudden grid failure or power fluctuation.

Large Commercial & Municipal Public Facilities: Benefiting from 280kW/350kVA sufficient standby power reserve, the unit is widely adopted in super high-rise office buildings, large shopping malls, star hotel clusters, municipal hospitals, campus facilities and comprehensive stadiums. Public and commercial scenarios have zero tolerance for power interruption, as blackouts may trigger safety hazards and operational paralysis. During grid maintenance, line faults or sudden blackouts, the genset can start quickly and complete automatic power switching, ensuring normal operation of fire linkage systems, high-rise elevators, medical rescue instruments, security monitoring systems and public lighting equipment.

Field Engineering & Remote Construction Scenarios: It is the preferred temporary power supply equipment for road and bridge projects, municipal infrastructure renovation, oil field exploitation, open-pit mine operation and remote field construction sites. Most outdoor engineering sites are far from urban power grids with harsh environmental conditions and unstable power resources. The 6LTAA9.5-G1 genset features strong environmental adaptability, vibration resistance and load impact resistance, capable of stable operation in high-temperature, low-temperature, dusty and windy environments, fully meeting the power demand of large construction machinery, welding equipment, engineering detection tools and on-site living electricity.

Off-grid & Unattended Special Power Scenarios: The unit is widely used in remote mountainous areas, islands, pastoral areas and other off-grid power-shortage regions, as well as unattended scenarios such as large communication base station clusters, water conservancy pump stations, environmental monitoring stations and remote power transmission facilities. The 9.5L large-displacement engine has excellent low-temperature start-up performance and extreme environment resistance, realizing long-term stable independent power supply and solving the persistent power supply dilemma of remote areas and unattended high-power equipment.

4. Core Product Purpose

The core purpose of the Cummins 6LTAA9.5-G1 256kW/320kVA 60Hz diesel generator set is to provide high-stability, high-power-reserve and cost-effective professional power supply solutions for global 60Hz power standard regions and medium-to-high load industrial and commercial scenarios. It effectively compensates for the shortcomings of insufficient transient response and limited high-load resistance of ordinary medium-power gensets, serving as a reliable core power guarantee for industrial continuous power supply and public emergency power backup.

In off-grid areas, power-deficient industrial zones and remote field operation bases, this genset acts as high-performance prime power generation equipment. Relying on 256kW continuous stable prime power output and excellent variable-load adaptation capability, it supports 24-hour uninterrupted power supply for industrial production, large-scale engineering construction and regional daily electricity demand. The optimized Bosch fuel injection system and electronic governance technology ensure sufficient power output while controlling fuel consumption efficiently, helping enterprises reduce long-term power supply operating costs and improve overall production benefits.

In urban commercial areas and standardized industrial parks with complete grid facilities, the unit functions as high-reliabilityemergency standby power equipment. With 280kW/350kVA abundant standby power reserve, it can quickly respond to sudden blackouts, grid overhauls and power fluctuation emergencies, instantly taking over power supply for core production equipment and key public service facilities. It effectively avoids heavy equipment damage, production stagnation and public safety accidents caused by power interruption, fully guaranteeing the continuity and safety of industrial production and municipal public services.

Equipped with Cummins mature 9.5L large-displacement engine technology, maintenance-friendly brushless alternator structure and full intelligent safety protection system, this 320kVA diesel generator set features ultra-low failure rate and long service life. It reduces frequent shutdown maintenance and later manpower and material investment, becoming one of the most cost-effective and widely recognized medium-large power Cummins gensets in the 60Hz market. It perfectly matches the long-term high-load power guarantee needs of medium and large industrial enterprises, key engineering projects and municipal public institutions.

5. Frequently Asked Questions (FAQ)

Q1: What is the practical difference between prime power and standby power of Cummins 6LTAA9.5-G1 genset?

Prime power (256kW/320kVA) refers to the rated continuous operating power of the generator set, supporting 24-hour long-term uninterrupted operation and standard short-time overload operation. It is mainly used for long-term main power supply in off-grid regions, power-deficient industrial parks and remote construction sites. Standby power (280kW/350kVA) is the maximum emergency power reserve of the unit, only applicable for short-time power supply during municipal power failure or unexpected emergencies, and does not support long-term full-load operation. For daily on-site operation, it is recommended to control the operating load within the prime power range to reduce engine wear and extend the overall service life of the genset.

Q2: What are the actual operational advantages of the brushless self-excited alternator on this 320kVA Cummins genset?

The brushless self-excited alternator adopted by the 6LTAA9.5-G1 genset completely removes traditional wearable parts like carbon brushes and slip rings, fundamentally eliminating common faults such as carbon brush aging wear, poor contact and spark ignition during long-term high-load operation. Matched with H-class high-temperature resistant insulation and IP23 dustproof and waterproof protection grade, it can adapt to harsh industrial and outdoor working environments with high temperature, humidity and dust. Supported by AVR automatic voltage regulation technology, the output voltage and frequency remain highly stable with low power distortion, effectively protecting precision electrical and automation equipment. Its maintenance-free design greatly reduces daily operational workload, fully meeting long-term unattended operation requirements of industrial sites and engineering projects.

Q3: What is the standardized maintenance cycle for Cummins 6LTAA9.5-G1 diesel generator set?

This 9.5L large-displacement G1 series industrial genset follows unified Cummins graded maintenance specifications for high-load operation. Basic routine inspection is required before each startup, including checking fuel volume, lubricating oil level, cooling water capacity and circuit tightness, and cleaning surface dust after shutdown. The first maintenance including engine oil and filter replacement shall be performed after 50 hours of initial operation. Conventional wearing parts such as oil filter, fuel filter and air filter need replacement every 250 operating hours. A comprehensive inspection and calibration of the fuel injection system, turbocharger, cooling system and electronic control module is required every 500 hours. Standardized periodic maintenance can effectively retain the unit’s original power performance and ensure long-term stable operation.
