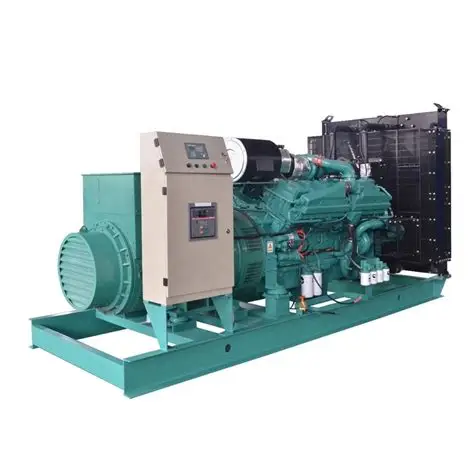

60Hz Cummins 6ZTAA13-G3 310kW/388kVA Diesel Generator Set

60Hz Cummins  310kW/388kVA  Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The 60Hz Cummins 6ZTAA13-G3 310kW/388kVA diesel generator set is a high-power upgraded industrial genset tailored for global 60Hz power grid markets and heavy-load power demand scenarios. Adopting Cummins advanced 13.0L large-displacement G-Drive dedicated engine technology, this G3 upgraded model optimizes fuel injection logic and power output calibration, delivering stronger power reserve, faster transient load response and more stable continuous operation than conventional medium and high-power gensets. As a hot-selling 388kVA Cummins diesel generator set in the industrial power industry, it is widely recognized for high power density, excellent harsh environment adaptability and low long-term operational failure rate, becoming a preferred power solution for heavy industrial and large-scale commercial power guarantee projects.

Powered by authentic Dongfeng Cummins 6ZTAA13-G3 professional generator drive engine, the unit adopts a rugged 6-cylinder in-line 4-stroke structure and advanced turbocharged after-cooled air intake design. The 13.0L large displacement and 17.0:1 high-efficiency compression ratio cooperate with BYC high-precision fuel injection pump to achieve uniform fuel atomization and full combustion, effectively improving energy conversion efficiency and power output stability. Equipped with a high-sensitivity electronic governor, the engine realizes precise speed regulation and rapid power adjustment, which can instantly respond to sudden load surges and frequent load fluctuations in heavy industrial production. Even during long-term 100% full-load operation, the unit maintains stable 310kW prime power output without power attenuation or operational jitter, showing outstanding high-load durability and continuous working performance.

Matched with premium brushless self-excited alternator, this 388kVA industrial generator set completely eliminates traditional wearable components such as carbon brushes and slip rings in brushed alternators. The optimized brushless self-excited structure fundamentally avoids common operational faults including carbon brush wear, poor contact and spark ignition during long-term high-load operation, greatly reducing daily maintenance frequency and long-term equipment failure risks. With H-class ultra-high temperature resistant insulation materials and IP23 dustproof and rainproof protection grade, the alternator can stably operate in harsh working environments such as high temperature, high humidity, heavy dust and outdoor wind and sand erosion. The full pure copper winding design features low heat generation, high conductivity and strong anti-aging performance, cooperating with intelligent AVR automatic voltage regulation system to control voltage and frequency fluctuation within minimal range, supplying clean, stable and distortion-free power for heavy industrial machinery and precision automation equipment.

In terms of intelligent control and safety protection, the genset is equipped with a dedicated intelligent electronic monitoring controller, integrating one-key start-stop, real-time operating data display, remote linkage control and automatic fault diagnosis functions. It supports comprehensive active safety protection mechanisms including over-speed, over-voltage, under-voltage, over-current, low oil pressure, high water temperature and overload automatic shutdown. Once abnormal operating parameters are detected on site, the system will trigger real-time alarm and emergency protection shutdown to avoid equipment burnout and operational safety accidents. The factory-matched integrated water cooling system has efficient and stable heat dissipation performance, which can effectively control operating temperature and ensure 24-hour uninterrupted stable operation in high-temperature harsh working environments, effectively avoiding overheating shutdown failures.

In terms of economic performance and on-site practicality, the upgraded G3 engine calibration technology scientifically controls the 100% full-load fuel consumption at 79.1L/H, achieving a balanced match between ultra-high power output and controllable operating cost. The thick cast iron cylinder block and reinforced structural design greatly improve vibration resistance and impact resistance, adapting to complex working conditions of industrial workshops, field construction sites and mining operations. With standardized serialized accessories and a complete global Cummins after-sales service network, spare parts replacement and daily maintenance are highly convenient. This 310kW Cummins diesel generator set has ultra-low long-term failure rate and super-long service life, effectively reducing enterprise operation and maintenance costs, and has outstanding cost performance in high-power industrial genset products.

3. Main Application Scenarios

This Cummins 6ZTAA13-G3 388kVA 60Hz diesel generator set has excellent heavy-load resistance and ultra-stable continuous operation capability. It can flexibly switch between long-term prime power supply and emergency standby power supply modes, covering heavy industrial manufacturing, large commercial complex facilities, field engineering construction, municipal key infrastructure and off-grid power supply fields, and is widely applicable to all high-load scenarios requiring high-reliability uninterrupted power supply.

Heavy Industrial Manufacturing Scenarios: The stable 310kW prime power makes it the ideal power supply equipment for heavy machinery processing plants, large chemical production bases, mining enterprises, building material production factories and large-scale industrial parks. Heavy industrial production features large instantaneous starting load, long-duration continuous power consumption and extremely strict requirements for power supply stability. This high-power genset can serve as the main power generation equipment in power-deficient industrial zones to support 24-hour stable operation of heavy production lines, large mechanical transmission equipment and supporting electrical facilities. It also acts as core emergency backup power to prevent large-scale production shutdown, precision equipment damage and huge economic losses caused by sudden municipal power failure or grid fluctuation.

Large Commercial & Municipal Public Facilities: Benefiting from 340kW/425kVA sufficient standby power reserve, the unit is widely applied in super high-rise office buildings, large shopping mall clusters, star hotel groups, municipal general hospitals, comprehensive stadiums and government key office buildings. Public commercial and municipal facilities have zero tolerance for power interruption, as sudden blackouts will trigger fire linkage system failures, elevator shutdowns, medical equipment outages and public operational paralysis. During grid maintenance, line faults or unexpected power outages, the genset can start quickly and complete automatic power switching in a short time, fully guaranteeing the normal operation of key public service equipment and ensuring public safety and operational continuity.

Field Engineering & Mining Construction Scenarios: It is the core temporary power supply equipment for large-scale road and bridge engineering, municipal key infrastructure renovation, oil field exploitation, open-pit mine operation and remote field construction projects. Most outdoor engineering sites are far away from urban power grids with unstable power resources and harsh working environments. The 6ZTAA13-G3 genset features strong environmental adaptability, vibration resistance and heavy-load impact resistance, which can operate stably in high-temperature, low-temperature, dusty and windy complex environments, fully meeting the high-power demand of large construction machinery, welding equipment, engineering detection tools and on-site staff living electricity.

Off-grid & Unattended Special Power Scenarios: The unit is widely used in remote mountainous areas, islands, pastoral areas and other off-grid power-shortage regions, as well as unattended scenarios such as large communication base station clusters, water conservancy pump stations, environmental automatic monitoring stations and remote power transmission facilities. The advanced 13L large-displacement G3 series engine has excellent low-temperature start-up performance and extreme environment resistance, realizing long-term stable independent power supply and solving the persistent power supply dilemma of remote areas and unattended high-power equipment.

4. Core Product Purpose

The core purpose of the Cummins 6ZTAA13-G3 310kW/388kVA 60Hz diesel generator set is to provide high-stability, heavy-load-resistant and long-durable high-power professional power supply solutions for global 60Hz power standard regions and heavy industrial and large-scale commercial scenarios. It makes up for the shortcomings of insufficient instantaneous load resistance and poor continuous high-load operation stability of ordinary high-power gensets, and is a reliable core power guarantee equipment for heavy industrial continuous power supply and key project emergency power backup.

In off-grid areas, power-deficient heavy industrial zones and remote field operation bases, this genset acts as professional high-power prime power generation equipment. Relying on 310kW continuous stable prime power output and excellent variable-load adaptation capability, it supports 24-hour uninterrupted power supply for heavy industrial production, large-scale engineering construction and regional daily electricity demand. The optimized BYC high-precision fuel injection system and electronic governance technology ensure sufficient and stable power output while controlling fuel consumption efficiently, helping enterprises reduce long-term power supply operating costs and improve overall production and operational benefits.

In urban core commercial areas and standardized large-scale industrial parks with complete grid facilities, the unit functions as high-reliability emergency standby power equipment. With 340kW/425kVA abundant standby power reserve, it can quickly respond to sudden blackouts, grid overhauls and power fluctuation emergencies, instantly taking over power supply for core production equipment and key public service facilities. It effectively avoids heavy equipment damage, large-area production stagnation and public safety accidents caused by power interruption, fully guaranteeing the continuity and safety of industrial production and municipal public services.

Equipped with Cummins advanced 13.0L large-displacement G-Drive professional engine technology, maintenance-free brushless alternator structure and intelligent full-protection control system, this 388kVA diesel generator set features ultra-low failure rate and long service life. It reduces frequent shutdown maintenance and later manpower and material investment, becoming one of the most mature and cost-effective high-power Cummins gensets in the 60Hz market. It perfectly matches the long-term heavy-load power guarantee needs of large industrial enterprises, key national engineering projects and municipal public institutions.

5. Frequently Asked Questions (FAQ)

Q1: What is the actual operational difference between prime power and standby power of Cummins 6ZTAA13-G3 genset?

Prime power (310kW/388kVA) refers to the rated continuous operating power of the generator set, supporting 24-hour long-term uninterrupted operation and standard short-time overload operation. It is mainly used for long-term main power supply in off-grid regions, heavy industrial parks and remote large-scale construction sites. Standby power (340kW/425kVA) is the maximum emergency power reserve of the unit, only applicable for short-time power supply during municipal power failure or unexpected emergencies, and does not support long-term full-load operation. For daily on-site operation, professional engineering operators recommend controlling the operating load within the prime power range to reduce engine wear and extend the overall service life of the high-power genset.

Q2: What practical benefits does the brushless self-excited alternator bring to the 388kVA Cummins genset?

The brushless self-excited alternator adopted by the 6ZTAA13-G3 genset completely cancels traditional wearable parts such as carbon brushes and slip rings, fundamentally eliminating common faults like carbon brush aging wear, poor contact and spark ignition that frequently occur in brushed alternators during long-term heavy-load operation. Matched with H-class high-temperature resistant insulation and IP23 dustproof and waterproof protection grade, it can adapt to harsh industrial and outdoor working environments with high temperature, humidity and heavy dust. Supported by intelligent AVR automatic voltage regulation technology, the output voltage and frequency remain highly stable with extremely low power distortion, effectively protecting heavy industrial machinery and precision electrical automation equipment. Its low maintenance workload and ultra-low failure rate fully meet the long-term unattended heavy-load operation requirements of large industrial sites and key engineering projects.

Q3: What is the standardized maintenance cycle for Cummins 6ZTAA13-G3 high-power diesel generator set?

This 13.0L large-displacement G3 series high-power genset follows unified Cummins graded maintenance specifications for heavy-load industrial operation. Basic routine inspection is required before each startup, including checking fuel reserve, lubricating oil level, cooling water capacity and circuit connection tightness, and cleaning surface dust and sundries after shutdown. The first maintenance including engine oil and filter replacement shall be performed after 50 hours of initial operation. Conventional wearing parts such as oil filter, fuel filter and air filter need replacement every 250 operating hours. A comprehensive inspection and calibration of the BYC fuel injection system, turbocharger, cooling system and electronic control module is required every 500 hours. Strictly following the factory maintenance cycle can effectively retain the unit’s original high power performance and ensure long-term stable heavy-load operation.
