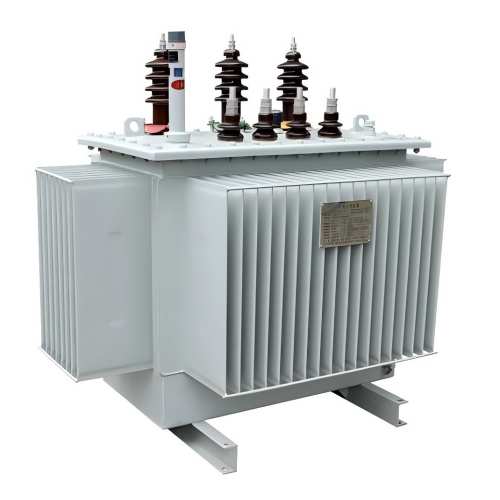

10Kv 1000Kva Oil Immersed Distribution Transformers
10Kv 1000Kva Oil Immersed Distribution Transformers
1. Product Description
10Kv 1000Kva Oil Immersed Distribution Transformers are standard medium-voltage power distribution equipment widely used in municipal power grids and industrial power supply systems. This 10kV class oil immersed transformer is professionally designed for 10kV to 0.4kV voltage step-down conversion, with a rated capacity of 1000kVA, perfectly matching conventional medium and large load power distribution demands. Manufactured in strict accordance with IEC 60076 power transformer standards and national distribution grid specifications, this three-phase distribution transformer adopts mature oil-immersed cooling and fully sealed structural technology, belonging to the mainstream energy-saving power transformation equipment in the current power industry.
Different from ordinary dry-type transformers, this 1000kVA oil immersed distribution transformer uses high-purity oxygen-free copper windings and low-loss cold-rolled silicon steel sheets as core raw materials. The whole machine adopts corrugated oil tank design without oil conservator, relying on the elastic deformation of the tank wall to adapt to the volume change of insulating oil during temperature rise and fall. This structural design effectively isolates internal insulating components from external air, prevents insulating oil aging and moisture invasion, greatly improves the operational stability and service life of the 10kV distribution transformer. It features compact overall layout, strong overload capacity and low operating noise, suitable for long-term continuous outdoor and indoor power distribution operation.
2. Core Product Features
This 10Kv 1000Kva Oil Immersed Distribution Transformer has outstanding performance advantages in energy saving, safety, stability and adaptability, solving many pain points of traditional distribution transformers in grid operation and industrial application, and is a cost-effective upgrade model for urban and rural power grid renovation.
2.1 Ultra-Low Loss and High Energy Efficiency
Adopting optimized five-stage lap joint core structure and high-permeability silicon steel materials, the 1000kVA oil immersed transformer effectively reduces no-load loss, load loss and no-load current. Compared with old-fashioned transformer products of the same capacity, its comprehensive energy consumption is significantly reduced, which can effectively save long-term operation power consumption for power grid enterprises and industrial users. It fully meets the current energy-saving and emission-reduction requirements of power distribution systems and is a typical high-efficiency energy-saving distribution transformer.
2.2 Fully Sealed Maintenance-Free Structure
The fully sealed corrugated tank body completely cuts off the contact between internal insulating oil and outside air, avoiding oil oxidation, moisture absorption and dust pollution. There is no need to replace insulating oil frequently during daily operation, which greatly reduces later maintenance workload and maintenance cost. This maintenance-free design makes the 10kV oil immersed distribution transformer very suitable for unattended substation operation scenarios.
2.3 Stable Voltage Output and Strong Anti-Interference Ability
The product adopts standard Dyn11 vector group design, with balanced three-phase current and stable voltage conversion. It can effectively suppress grid voltage fluctuation and harmonic interference, ensure stable 0.4kV low-voltage output quality, and avoid equipment damage caused by unbalanced voltage. Meanwhile, it is equipped with precision off-circuit voltage regulation taps, which can flexibly adjust voltage according to on-site grid conditions to adapt to different regional grid voltage deviation problems.
2.4 Excellent Environmental Adaptability and High Safety
With professional ONAN oil natural air natural cooling mode, the transformer has uniform heat dissipation and strong continuous heat resistance. The reinforced steel tank body has good mechanical strength, pressure resistance, corrosion resistance and seismic performance, and can operate stably in the temperature range of -25℃ to +45℃. Equipped with pressure relief valve, oil level indicator, temperature detection device and over-current protection function, it can automatically respond to abnormal conditions such as over-temperature, over-load and short circuit, ensuring safe and reliable operation of power distribution system.
2.5 Long Service Life and High Operational Reliability
High-quality insulating materials and copper windings effectively delay insulation aging, and the fully sealed structure avoids internal component corrosion. Under standard installation and operating conditions, the service life of this 1000kVA 10kV oil immersed distribution transformer can reach more than 30 years, with low failure rate and strong operational stability, which can meet the long-term uninterrupted power supply demand of key projects.
3. Core Usage
As the core terminal equipment of medium and low voltage power distribution systems, 10Kv 1000Kva Oil Immersed Distribution Transformers mainly undertake the key function of stepping down 10kV medium voltage industrial and grid electricity to 0.4kV low-voltage civil and industrial electricity. It is an indispensable power transformation device connecting medium-voltage transmission lines and terminal power consumption equipment, responsible for regional power distribution, voltage conversion and load balancing work.
In actual power system operation, this oil immersed distribution transformer can effectively reduce line power loss in the power transmission process, stabilize terminal power supply voltage, and improve the overall power supply quality and power supply reliability of the distribution network. It can reasonably distribute grid load, avoid local overload operation of the power grid, and provide stable and qualified low-voltage power for all kinds of terminal electrical equipment. In addition, it can also be used for power matching and energy conversion of decentralized power generation systems, helping new energy power grid-connected power distribution and improving the utilization rate of clean energy.
4. Application Scenarios
Relying on stable performance, low operation cost and wide environmental adaptability, the 1000kVA 10kV oil immersed distribution transformer covers almost all conventional medium-load power distribution scenarios, and is widely used in municipal power grids, industrial manufacturing, public infrastructure and new energy industries.
4.1 Urban and Rural Municipal Power Grid
It is the mainstream equipment for urban community substations, rural power grid renovation, urban power distribution station construction and residential area power supply transformation. It is used for medium-to-low voltage conversion of regional power grids to provide stable daily power supply for residential users, solving the problems of insufficient power supply capacity and unstable voltage in old urban and rural areas.
4.2 Industrial Park and Factory Power Supply
Suitable for power distribution transformation of large and medium-sized manufacturing factories, processing workshops, industrial parks, mining enterprises and chemical plants. It can bear the long-term operating load of industrial mechanical equipment, production lines and auxiliary electrical facilities, and meet the high stability power demand of industrial production.
4.3 Public Infrastructure Projects
Widely applied in power supply systems of schools, hospitals, shopping malls, office buildings, airports, railway stations and other public places. These scenarios have high requirements for power supply continuity and stability, and this reliable oil immersed distribution transformer can effectively guarantee the normal operation of public facilities and electrical equipment.
4.4 New Energy Power Generation Projects
Matched with distributed photovoltaic power stations, small wind power plants and biomass power generation projects, it is used for step-down conversion and grid-connected power distribution of new energy power. It collects and converts the electric energy generated by new energy equipment into usable 0.4kV low-voltage power, realizing efficient utilization and grid-connected transmission of clean energy.
4.5 Outdoor Engineering and Temporary Power Distribution
Due to its good weather resistance and anti-corrosion performance, the transformer is also suitable for outdoor open-air installation and temporary power supply of large infrastructure projects such as highways, water conservancy and railway construction, providing reliable power guarantee for field engineering construction.
5. FAQ
5.1 What is the difference between 1000kVA oil immersed distribution transformer and dry-type transformer of the same capacity?
The two types of transformers differ greatly in cooling mode, application environment and operation cost. The 10Kv 1000Kva Oil Immersed Distribution Transformer adopts insulating oil circulating cooling, with better heat dissipation effect, stronger overload capacity and lower manufacturing and operation cost, which is more suitable for outdoor installation, industrial sites and large-area regional power distribution. Dry-type transformers rely on air cooling, with higher safety in closed indoor environments, but have higher cost and weaker overload resistance. For conventional outdoor power grid and industrial power distribution scenarios, oil immersed distribution transformers have higher cost performance and wider applicability.
5.2 Does this 10kV 1000kVA oil immersed transformer require frequent maintenance?
This fully sealed oil immersed distribution transformer belongs to low-maintenance equipment. Thanks to the fully enclosed corrugated tank structure, the internal insulating oil and windings are isolated from the outside air, which will not cause oil deterioration and insulation aging due to external dust and moisture. In daily use, only regular visual inspection of oil level, shell oil leakage and operating noise is required. The insulating oil can be replaced every 6-8 years in normal environment, which is far lower than the maintenance frequency of traditional open-type transformers, greatly saving manual and material maintenance costs for users.
5.3 What load range is suitable for the 1000kVA distribution transformer?
The rated effective load of this 10kV oil immersed distribution transformer is about 800kW under conventional operating conditions. In actual operation, the optimal load rate is controlled between 60% and 80%, which can balance energy-saving effect and equipment service life. It can bear short-term 110% overload operation, but long-term full-load or overload operation is not recommended to avoid accelerating insulation aging. Users can reasonably configure the transformer according to the actual peak load and daily average load of the project to ensure stable and efficient operation of the power distribution system.
