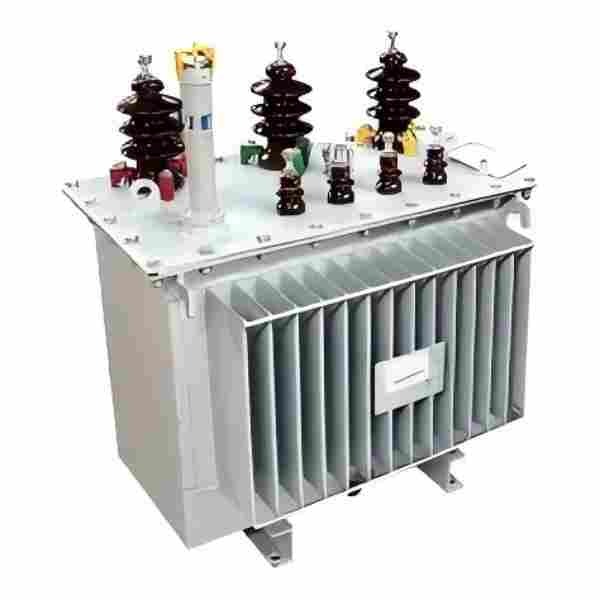

10kV 1000kVA Three Phase Oil Immersed Distribution Transformer with 440V Output
1. Product Description
The 10kV 1000kVA Three Phase Oil Immersed Distribution Transformer with 440V Output is a high-capacity, industrial-grade medium-voltage power distribution device tailored for standard 10kV overhead and indoor grid systems. As a mainstream 1000kVA three-phase oil-filled distribution transformer, it features a precise voltage transformation ratio of 10kV high voltage input to 440V three-phase low voltage output, perfectly matching the power supply requirements of industrial mechanical equipment, commercial power distribution systems and large-scale terminal electrical loads. This grid-grade power conversion equipment strictly complies with IEC 60076, IEEE and GB/T 6451 international and national electrical standards, adopting mature oil natural air cooling (ONAN) technology to support long-term continuous full-load operation.
Manufactured with high-grade oriented silicon steel core and pure copper low-resistance windings, this 10kV step-down transformer effectively minimizes no-load loss, load loss and magnetic flux leakage, achieving superior energy-saving performance compared with traditional old-generation transformers. The whole machine adopts a fully sealed corrugated oil tank structure without an oil conservator, which completely isolates internal insulating oil from external air and moisture, preventing oil oxidation and insulation aging. Designed with standard 50Hz operating frequency and conventional industrial impedance parameters, this heavy-duty oil immersed transformer delivers stable three-phase balanced voltage output, ensuring consistent 440V terminal voltage under variable load conditions. It is widely recognized as a reliable, low-maintenance power distribution solution for modern industrial and municipal power grid projects.
2. Core Purposes
The primary core purpose of this 10kV 1000kVA three-phase distribution transformer is to implement safe, efficient and stable medium-to-low voltage power conversion in three-phase AC power systems. It steps down 10kV medium-voltage grid power to standard 440V industrial three-phase voltage, providing compliant, high-quality power supply for downstream industrial loads, distribution panels and centralized power consumption equipment. Different from low-capacity civilian transformers, its 1000kVA large rated capacity is designed for high-power continuous power supply scenarios, solving the voltage and power mismatch problem between municipal 10kV power grids and industrial 440V high-power equipment.
In actual grid operation and industrial power supply, this energy-saving oil immersed transformer undertakes key functions including regional power distribution, grid load balancing, voltage stabilization and fault isolation. It effectively suppresses grid voltage fluctuations and instantaneous line surges, protects expensive industrial machinery and electrical systems from overvoltage and undervoltage damage, and improves the overall power supply quality and stability of distribution networks. Additionally, its low-loss operational design significantly reduces long-term grid transmission loss and enterprise power consumption costs, helping industrial and power grid users achieve energy conservation and operational cost reduction. As a critical intermediate power conversion device, it bridges medium-voltage power transmission networks and low-voltage industrial power consumption terminals, ensuring safe and orderly power transmission and distribution.
3. Typical Application Scenarios
3.1 Industrial Factory Power Distribution
This 10kV 1000kVA 440V output oil immersed transformer is the preferred power supply equipment for medium and large manufacturing factories, processing plants, mechanical workshops and production bases. Most industrial production equipment such as large motors, conveyor systems, welding equipment and automated production lines adopt 440V three-phase power standards. The 1000kVA sufficient rated capacity can fully meet the simultaneous high-power operation of multiple industrial devices, adapting to long-term continuous production power demand and ensuring stable operation of industrial production lines without frequent load tripping.
3.2 Urban and Rural Power Grid Renovation Projects
It is widely applied in urban distribution substations, township power grid upgrading and industrial park power supporting projects. Municipal and rural mainstream power transmission lines adopt 10kV medium-voltage power supply, and this three-phase oil-filled transformer can convert grid voltage to standard 440V industrial power for park public facilities, factory clusters and regional centralized loads. Its fully sealed structure and strong environmental adaptability make it suitable for both indoor substation installation and outdoor open-air layout, greatly improving the coverage and reliability of regional power distribution networks.
3.3 New Energy Power Station Supporting System
Serving as core power distribution equipment for large-scale photovoltaic power stations, wind power plants and energy storage systems, this high-efficiency distribution transformer completes voltage conversion and grid connection matching for new energy power generation. New energy power output has obvious intermittency and fluctuation, and the equipment’s excellent voltage stabilization and anti-fluctuation performance can stabilize chaotic power quality, convert generated power into standard 440V industrial electricity for local load consumption or grid-connected transmission, effectively solving the power matching problem of new energy decentralized power generation projects.
3.4 Large Commercial and Public Infrastructure
The transformer is applicable to power supporting of large shopping malls, logistics parks, hospital central power supply systems, school campus power distribution centers, airport auxiliary facilities and railway station equipment rooms. These public and commercial scenarios have concentrated power loads and high requirements for power supply continuity and stability. The 1000kVA high capacity and strong overload resistance can cope with peak power consumption pressure, providing reliable 440V three-phase power for central air conditioning systems, power distribution cabinets, mechanical equipment and public auxiliary electrical facilities.
3.5 Mining and Metallurgical Industrial Scenarios
With excellent dust resistance, corrosion resistance and stable load performance, this industrial-grade oil immersed transformer adapts to harsh working environments of mines, metallurgical plants and chemical enterprises. It can stably supply power for mining machinery, crushing equipment, metallurgical processing devices and chemical production equipment, maintaining safe and efficient power operation in high-dust, high-humidity and slightly corrosive industrial environments.
4. Core Product Features
4.1 Ultra-Low Loss & High Energy Efficiency
Adopting advanced low-loss silicon steel core and optimized electromagnetic winding design, this 10kV three-phase distribution transformer greatly reduces no-load current and operating loss. Its energy efficiency indicators exceed traditional industry standards, effectively lowering daily operational power consumption and long-term grid loss. The optimized magnetic circuit structure avoids magnetic flux leakage in all load ranges, achieving high-efficiency energy conversion whether under half-load or full-load operation, perfectly matching the energy-saving upgrading requirements of modern power grids and industrial enterprises.
4.2 Excellent Structural Stability & Anti-Short Circuit Capability
The transformer coil adopts integral fastening technology and high-strength insulating materials, with strong mechanical toughness and impact resistance. It can withstand instantaneous short-circuit impact and frequent load surges in industrial power grids, effectively preventing coil deformation, insulation damage and equipment failure. The fully sealed corrugated oil tank structure eliminates contact between insulating oil and air, delaying insulation aging and oil deterioration, ensuring long-term structural stability and trouble-free operation.
4.3 Low Operating Noise & Low Partial Discharge
Through precision core stacking process and professional vibration damping structure design, the operating noise of the equipment is effectively controlled at a low level, meeting urban environmental protection noise standards and suitable for noise-sensitive areas such as urban substations and residential adjacent industrial parks. Strict production and testing processes control internal partial discharge values within standard ranges, avoiding internal insulation breakdown caused by long-term partial discharge and extending the overall service life of the transformer.
4.4 Strong Environmental Adaptability & Durability
The whole machine undergoes shot blasting rust removal, phosphating treatment and multi-layer anti-corrosion electrostatic spraying, with excellent waterproof, moisture-proof, dust-proof and salt-fog resistance. It can operate stably in extreme environments such as high temperature, severe cold, high humidity and dusty industrial sites. The standard ONAN natural heat dissipation system has stable heat dissipation performance without relying on auxiliary cooling equipment, adapting to long-term unattended outdoor and indoor operation, with a service life of more than 20 years under normal working conditions.
4.5 Complete Safety Protection & High Operation Reliability
Equipped with standard pressure relief valve, signal thermometer, oil level detection device and overcurrent/overvoltage protection functions, the transformer can monitor operating temperature, oil pressure and load status in real time. It can automatically trigger protection and power-off response in case of overload, short circuit and overvoltage faults, avoiding equipment burnout and power system accidents. High-strength insulating structure and sealed oil insulation technology ensure excellent electrical insulation performance, effectively preventing electric leakage and improving overall operational safety.
4.6 Low Maintenance & Cost-Effective Operation
The maintenance-free fully sealed design eliminates the need for frequent oil replenishment, oil filtration and internal cleaning work, greatly reducing daily operation and maintenance costs and labor investment. The compact overall structure saves installation space, and the standardized size design is compatible with most indoor distribution rooms and outdoor substation installation environments. Simple installation and commissioning procedures shorten project construction cycles, bringing high economic benefits to grid and industrial power supply projects.
5. Frequently Asked Questions (FAQ)
Q1: What is the safe and optimal operating load range for the 10kV 1000kVA 440V three-phase oil immersed transformer?
A: This industrial distribution transformer has a rated capacity of 1000kVA. For long-term stable and safe operation, the optimal continuous load range is 70% to 85% of the rated capacity, which balances operating efficiency and equipment service life. It supports 110% short-term overload operation within 2 hours to cope with instantaneous peak power consumption of industrial equipment and grid load surges. Continuous full-load or overload operation is not recommended, as it will cause long-term overheating, accelerate insulation aging, increase operating loss and raise equipment failure risks.
Q2: Is this 1000kVA oil immersed transformer suitable for outdoor long-term operation and humid coastal environments?
A: Yes, this fully sealed three-phase oil-filled transformer is fully adaptable to long-term outdoor operation and humid coastal working conditions. The integrated fully sealed structure completely isolates internal insulating oil and windings from external humid air, salt fog and dust. The multi-layer anti-corrosion and weather-resistant coating effectively resists ultraviolet erosion, rainwater corrosion and coastal salt-fog oxidation. Compared with ordinary open-type transformers, it has stronger environmental adaptability and can maintain stable performance in high-humidity, high-salt and dusty outdoor environments without frequent failure.
Q3: What are the key daily maintenance and regular inspection items for this 10kV 440V distribution transformer?
A: This low-maintenance oil immersed transformer features simple daily management. Daily routine inspections mainly include checking for oil leakage on the tank body, observing real-time oil level and oil color, confirming normal operating temperature and no abnormal noise or vibration. It is necessary to regularly check the firmness of wiring terminals and grounding devices to avoid poor contact. Professional comprehensive testing including insulation resistance, winding resistance and voltage transformation ratio is recommended every six months. Insulating oil filtration or replacement is required every 3 to 5 years according to operating environment to ensure long-term stable and efficient operation of the equipment.
