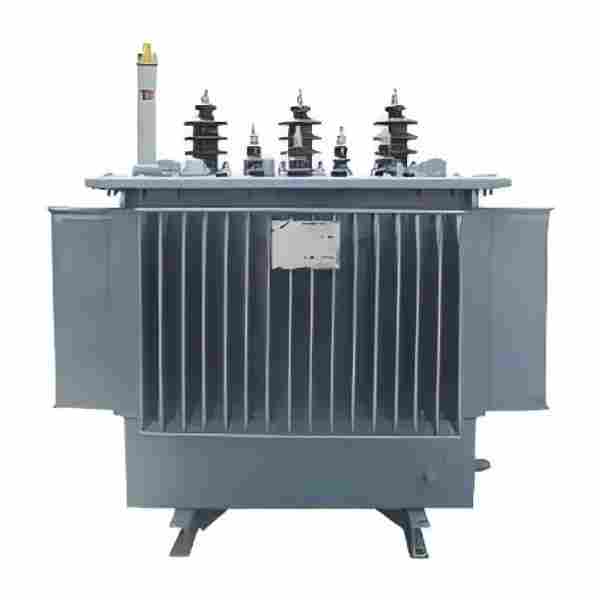

10KV 240V Three Phase Oil Immersed Transformers
1. Product Overview
The 10KV 240V three phase oil immersed transformer is a practical and reliable medium-voltage distribution transformer designed for global industrial and municipal power systems. This standard oil filled power transformer features a classic voltage conversion ratio of 10kV high voltage input and 240V low voltage three-phase output, perfectly matching overseas civil power standards, industrial terminal power supply requirements and special regional power grid specifications. Built to comply with IEC 60076 international electrical standards and local power grid operation norms, this sealed oil immersed distribution transformer has become a mainstream power conversion device for 10kV medium-voltage power distribution systems.
Adopting mature industrial manufacturing technology, the equipment uses high-permeability cold-rolled silicon steel sheet core and high-purity copper winding structure, effectively optimizing internal magnetic circuit and conductive performance. It adopts universal ONAN oil-natural air-natural cooling mode and fully sealed corrugated oil tank design, which solves the heat dissipation and insulation aging problems of traditional open-type transformers during long-term continuous operation. Different from conventional 10kV/400V distribution transformers, this 10kV to 240V step-down oil transformer targets regions and equipment that support 240V low-voltage standard, filling the market gap of customized low-voltage output power transformation equipment for international power projects.
Suitable for both 50Hz and 60Hz AC power grid operation, this heavy-duty three-phase oil immersed power transformer boasts compact structural layout, stable output voltage and low operating loss. It supports long-term outdoor unattended operation and frequent load fluctuation operation, with strong environmental adaptability and operational stability. It is widely customized and applied in overseas engineering construction, foreign-invested factory power supply and regional special power grid renovation projects, and is a cost-effective upgraded alternative to traditional low-efficiency distribution transformers.
2. Core Product Purposes
The core purpose of the 10KV 240V three phase oil immersed transformer is to realize safe, stable and accurate voltage step-down conversion and terminal power distribution in 10kV medium-voltage power grids, converting high-voltage grid electric energy into standard 240V three-phase low-voltage power that meets international power consumption standards.
In actual power system operation, this oil immersed distribution transformer undertakes the key task of medium and low voltage matching for special standard power grids. It efficiently steps down 10kV medium-voltage electric energy transmitted by overhead lines and cable lines to 240V usable voltage, providing compliant and stable power supply for overseas residential living facilities, small and medium industrial equipment, commercial electrical devices and public infrastructure. It effectively solves the problem of voltage mismatch between domestic 10kV power grids and foreign 240V standard electrical equipment, avoiding equipment failure and power consumption abnormality caused by non-standard voltage access.
Meanwhile, this low-loss oil filled power transformer optimizes the overall operation quality of regional power grids. It can effectively suppress grid voltage fluctuation, filter low-frequency harmonic interference generated by load changes, and reduce electric energy loss during power conversion and transmission. With reliable overload resistance and short-circuit protection performance, it can buffer instantaneous current impact caused by equipment startup and grid peak load changes, isolate circuit fault risks, protect subsequent power distribution equipment and terminal electrical appliances, and ensure the continuity and safety of regional power supply. It also balances local power grid load, improves power distribution efficiency, and reduces long-term grid operation and maintenance costs.
3. Typical Application Scenarios
3.1 Overseas Municipal & Residential Power Grid Projects
This 10KV 240V three phase oil immersed transformer is the core power transformation equipment for overseas urban and rural power grid construction and renovation projects. Many countries and regions adopt 240V three-phase low-voltage power supply standards for civil and commercial use, while the main power transmission grid maintains 10kV medium-voltage specification. This customized oil immersed transformer can perfectly adapt to this dual-standard power system, providing stable 240V power for residential communities, urban commercial streets, residential supporting facilities and municipal public equipment, meeting the daily power consumption needs of overseas urban and rural residents.
3.2 Foreign-Invested & Export-Oriented Industrial Parks
It is widely used in export processing zones, foreign-invested factories and overseas small and medium-sized industrial production bases. A large number of imported industrial machinery, automated production equipment and factory auxiliary electrical facilities are designed based on 240V voltage standards. The 10kV medium-voltage power grid is used for long-distance power transmission in industrial parks, and this professional step-down oil transformer can accurately convert grid voltage to 240V industrial power, ensuring the normal start-up and stable operation of imported precision equipment and production lines, and avoiding equipment damage caused by voltage inconsistency.
3.3 International Engineering & Temporary Field Power Supply
The transformer is highly suitable for overseas infrastructure construction, field engineering operation, mining exploration projects and cross-border engineering temporary power supply scenarios. With fully sealed outdoor waterproof and dustproof design, it can adapt to harsh field environments such as high temperature, low temperature, humidity and dust. It can stably provide 240V power for engineering construction machinery, field office equipment, temporary living facilities and engineering monitoring systems, and its flexible installation and stable operation performance fully meet the power supply requirements of mobile and temporary engineering projects.
3.4 Special Commercial & Public Facility Power Distribution
It also serves as supporting power distribution equipment for international schools, foreign hospitals, cross-border shopping malls and special public facilities. These public and commercial facilities are equipped with a large number of imported electrical equipment and intelligent systems that require 240V standard power supply. This 10kV/240V oil immersed distribution transformer can achieve precise voltage matching, ensure the stable operation of facility lighting, air conditioning, intelligent monitoring and office systems, and improve the safety and stability of public facility power supply.
4. Core Product Features
4.1 Customized 10KV/240V Accurate Voltage Matching
Different from conventional 10kV/400V general-purpose transformers, this three phase oil immersed transformer adopts customized voltage conversion design, with accurate 10kV high voltage input and 240V low voltage output. It perfectly fits international 240V power consumption standards, completely solving the voltage mismatch problem of imported equipment and overseas power grid projects. The precise voltage output effectively avoids voltage deviation, overvoltage and undervoltage faults, ensuring the safe and efficient operation of 240V standard electrical equipment, with higher matching accuracy than universal power transformers.
4.2 Low Energy Loss & High Power Conversion Efficiency
Equipped with high-quality low-loss silicon steel core and precision wound copper winding, this oil filled power transformer effectively reduces no-load loss, load loss and magnetizing current during operation. The optimized magnetic circuit structure avoids magnetic flux leakage, and the overall power conversion efficiency is significantly improved compared with traditional old-fashioned transformers. It can maintain high-efficiency power conversion under long-term partial load and full-load operation, effectively reducing daily power consumption and long-term operation costs for power grid enterprises and industrial users, with excellent energy-saving and environmental protection effects.
4.3 Fully Sealed Structure & Superior Environmental Adaptability
The whole machine adopts fully sealed welded oil tank and corrugated heat dissipation structure, without oil conservator design, which effectively prevents rainwater, dust and humid air from invading the interior. It avoids insulating oil damp, deterioration and oxidation, and maintains stable insulation and heat dissipation performance for a long time. The surface is coated with weather-resistant and anti-corrosion protective paint, which can adapt to outdoor open-air environment, high-temperature and high-humidity areas, cold low-temperature regions and dusty industrial sites. It supports long-term unattended outdoor operation with strong environmental tolerance and wide application range.
4.4 Stable Operation & Excellent Safety Performance
The internal winding adopts integral fastening and multi-layer composite insulation structure, with strong mechanical stability and short-circuit impact resistance. It can effectively resist instantaneous short-circuit current and grid voltage surge, prevent coil deformation and equipment burnout, and improve the overall fault resistance of the transformer. Equipped with standard pressure relief device, oil level monitoring system and temperature sensing protection components, it can automatically release internal overpressure and monitor operating status in real time, realizing active fault early warning. The low partial discharge design ensures safe and stable long-term operation in 10kV medium-voltage grid systems.
4.5 Simple Maintenance & Long Service Life
This three-phase oil immersed distribution transformer has a mature and simplified internal structure without complex vulnerable electronic parts, with low daily failure rate and stable overall performance. The fully sealed design does not require frequent oil replacement and internal cleaning, and daily maintenance only needs regular oil level inspection, oil quality detection and sealing performance check. The high-purity copper winding and high-quality insulating oil effectively delay component aging, greatly extend the service life of the equipment, and reduce later operation and maintenance manpower and material investment, with high comprehensive cost performance.
5. Frequently Asked Questions (FAQ)
Q1: What projects are suitable for 10KV 240V oil immersed transformers instead of conventional 10KV/400V models?
The 10KV 240V three phase oil immersed transformer is specially customized for scenarios requiring 240V low-voltage standard output. It is the preferred choice for overseas power grid construction, foreign-invested factories equipped with 240V imported equipment, international public facilities and cross-border engineering power supply projects. Conventional 10KV/400V transformers cannot match 240V standard electrical equipment, which will cause equipment failure, low operation efficiency and even burnout. For projects with dedicated 240V power demand, this customized voltage transformer can ensure precise voltage matching and stable power supply, which is irreplaceable by universal voltage transformers.
Q2: Can this 10KV/240V oil immersed transformer adapt to both 50Hz and 60Hz power grids?
Yes, this three phase oil immersed power transformer supports stable operation for both 50Hz and 60Hz AC power systems, with strong frequency compatibility. The optimized electromagnetic winding and magnetic circuit design avoids core overheating, efficiency attenuation and voltage deviation caused by frequency changes. It can be widely used in domestic 50Hz test power supply projects and overseas 60Hz regional power grids, perfectly meeting the frequency standards of most countries and regions in the world. No structural modification or parameter adjustment is required for frequency switching, which greatly improves the versatility of the equipment in international projects.
Q3: What are the key daily maintenance points for outdoor installed 10KV 240V oil immersed transformers?
Daily maintenance focuses on three core links to ensure long-term stable operation. First, regularly check the sealing performance of the oil tank, welding seams and gaskets to eliminate hidden dangers of insulating oil leakage, and observe the oil level and oil clarity to replace deteriorated and turbid insulating oil in time. Second, clean the surface and radiator dust regularly to ensure unobstructed natural heat dissipation and prevent equipment overheating under long-term load operation. Third, periodically test the insulation resistance of high and low voltage windings and verify the stability of 240V output voltage, check the integrity of safety protection devices, and eliminate abnormal noise and temperature rise faults to ensure safe and fault-free operation of the equipment all year round.
