1. Product Description

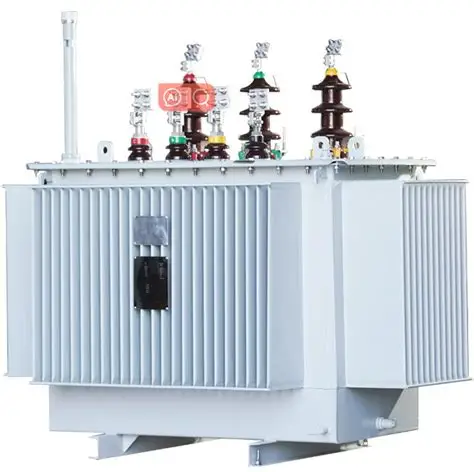

11/0.4 kv 315kVA 400kVA Oil Immersed Transformer Three Phase Power Transformer is a standard medium and small capacity three-phase distribution transformer widely used in municipal power grids, industrial power distribution and commercial power supply projects. This series of oil immersed power transformers features a standard 11kV high voltage input and 0.4kV low voltage output ratio, covering two mainstream rated capacities of 315kVA and 400kVA to match medium-load power demand in most civil and industrial scenarios. Manufactured in strict accordance with IEC 60076 international standards and S11/S13 energy-saving specifications, this three-phase power transformer adopts mature oil-immersed insulation and natural cooling technology, serving as the core step-down conversion equipment for 11kV medium-voltage power distribution systems.
Built with high-permeability low-loss grain-oriented silicon steel core and high-purity oxygen-free copper windings, the 11kV 0.4kV oil immersed distribution transformer optimizes internal magnetic circuit and coil layout to effectively reduce no-load loss, load loss and magnetic leakage. The fully sealed corrugated steel tank is filled with high-quality mineral insulating oil, providing stable electrical insulation and passive circulating heat dissipation for internal components. Different from customized special transformers, this universal three-phase oil type power transformer supports long-term continuous full-load operation, with stable 0.4kV three-phase balanced output. It is a cost-effective and highly versatile power transformation solution for conventional grid upgrading, factory power renovation and community power supply expansion projects.
2. Core Product Features
This 315kVA and 400kVA 11/0.4kV three-phase oil immersed power transformer integrates energy-saving design, reliable sealing structure and strong environmental adaptability. It solves common pain points of traditional old transformers such as high power consumption, easy oil leakage and poor weather resistance, and has become the most popular upgraded power distribution equipment for modern urban and rural power grids.
2.1 Ultra-Low Loss and High Energy-Saving Performance
Adopting full-mitered step lap core stacking technology and optimized three-phase winding balance design, this 11kV oil immersed transformer greatly reduces no-load current and operating power loss. Compared with traditional S9 series transformers, the no-load loss and load loss are significantly reduced, fully meeting national and international energy-saving standards for distribution equipment. Whether it is 315kVA conventional load operation or 400kVA medium-heavy load continuous operation, the equipment maintains high power conversion efficiency, effectively cutting down long-term operating electricity costs for power grid stations and industrial users.
2.2 Fully Sealed Maintenance-Free Structure
The integral fully welded sealed tank body completely isolates internal windings, iron core and insulating oil from external air, moisture and dust. This hermetically sealed design prevents insulating oil oxidation, moisture absorption and aging deterioration, avoiding frequent oil replacement and internal cleaning required by open-type transformers. The precision flange sealing process eliminates common oil leakage faults, realizing long-term maintenance-free daily operation and greatly reducing later operation and maintenance workload and comprehensive investment.
2.3 Stable ONAN Natural Cooling System
Equipped with standard Oil Natural Air Natural cooling mode, the insulating oil forms automatic natural circulation flow with temperature changes, achieving uniform and efficient passive heat exchange without auxiliary cooling fans or power equipment. The large-area corrugated radiator ensures fast heat dissipation even during peak load operation, keeping internal temperature rise within a safe range. With no mechanical wearing parts, the cooling system has extremely low failure rate and strong continuous operation stability, supporting 24-hour unattended operation.
2.4 Excellent Short-Circuit Resistance and Safety Performance
Reinforced coil support structure and high-strength insulating materials greatly enhance the transformer’s short-circuit impact resistance and mechanical stability. The equipment can effectively resist sudden grid short-circuit faults and current surge impact, avoiding coil deformation and burnout. Matched with built-in overload protection, over-temperature protection and pressure relief protection devices, it forms a multi-dimensional safety protection system to ensure safe and stable operation of the 11kV/0.4kV power distribution system.
2.5 Strong Weather Resistance and Long Service Life
The outer shell undergoes professional derusting, anti-corrosion and electrostatic spraying treatment, with excellent ultraviolet resistance, rain erosion resistance and rust resistance. It can operate stably in outdoor open-air environments, adapting to high temperature, low temperature and humid harsh climatic conditions. With high-quality aging-resistant insulating materials and stable internal structure, the service life of this three-phase oil immersed power transformer can reach more than 30 years under standard operating conditions.
3. Core Usage
As a key terminal step-down device in 11kV medium-voltage power distribution networks, the 11/0.4 kv 315kVA 400kVA Oil Immersed Transformer Three Phase Power Transformer mainly undertakes the core function of converting 11kV medium-voltage grid electricity into standard 0.4kV three-phase low-voltage power. It acts as a critical power conversion hub connecting urban and rural medium-voltage transmission lines and terminal civil and industrial power consumption equipment.
In actual power grid operation, this oil immersed distribution transformer can effectively stabilize terminal output voltage, restrain grid voltage fluctuation and harmonic interference, and balance regional power load distribution. It reduces electric energy loss in medium-to-low voltage power transmission links and improves overall power supply quality and reliability. The 315kVA model is suitable for conventional stable load power supply, while the 400kVA model reserves sufficient load margin for power demand growth, flexibly meeting the power matching needs of power grid renovation, industrial upgrading and community expansion projects.
4. Application Scenarios
With moderate capacity, high stability and wide adaptability, 315kVA and 400kVA 11/0.4kV three-phase oil immersed transformers cover most mainstream medium-load power distribution scenarios, and are widely adopted in municipal power grids, industrial parks, commercial facilities and rural power grid renovation projects.
4.1 Urban and Rural Power Grid Renovation
It is the most widely used scenario for this series of transformers. Both 315kVA and 400kVA specifications are ideal for rural power grid upgrading, urban community power supply renovation and suburban power grid expansion. They effectively solve the problems of insufficient power supply capacity and voltage instability in old power grids, ensuring stable daily power consumption for residential lighting, household appliances and community public equipment.
4.2 Small and Medium Industrial Parks & Workshops
Suitable for power distribution supporting of small processing factories, mechanical workshops, food processing plants and light industrial parks. The 315kVA oil immersed transformer matches stable conventional industrial loads, while the 400kVA three-phase power transformer is applicable for production lines with slight peak load fluctuation, providing continuous and stable power guarantee for industrial production equipment and auxiliary facilities.
4.3 Commercial and Public Infrastructure
Widely deployed in shopping malls, office buildings, schools, hospitals and community service centers. These public and commercial scenarios require long-term stable and uninterrupted power supply. The low-noise, low-consumption and high-reliability operation performance of 11/0.4kV oil immersed transformers fully meets the power demand of public facilities and commercial electrical systems, avoiding power supply faults that affect daily operation.
4.4 Construction Site and Temporary Engineering Power Supply
Commonly used for temporary power distribution of road construction, municipal engineering and field construction projects. With excellent outdoor weather resistance and strong overload resistance, the equipment can adapt to complex construction site environments, providing reliable medium-load power support for construction machinery, temporary office equipment and on-site living facilities.
4.5 Small Distributed New Energy Projects
Matched with small rooftop photovoltaic power stations and micro distributed new energy systems. This three-phase oil immersed power transformer completes step-down conversion and grid-connected power distribution of new energy power, stabilizes intermittent power output of photovoltaic systems, and improves the utilization rate and grid-connected safety of clean energy.
5. FAQ
5.1 What is the difference and selection basis between 315kVA and 400kVA 11/0.4kV oil immersed transformers?
Both models adopt the same 11kV/0.4kV voltage ratio, oil immersed sealing structure and energy-saving manufacturing process, with consistent safety performance and service life. The core difference lies in rated load capacity and application margin. The 315kVA three-phase power transformer is suitable for scenarios with stable and fixed medium load, such as mature residential communities and fixed small workshops, with higher cost performance. The 400kVA specification has a 25% higher load margin, making it more suitable for sites with obvious peak load fluctuation and future power expansion demand, including new industrial parks and expanding commercial districts. Users can select the model according to current actual load and 3–5 years of power growth plans.
5.2 Why are 11/0.4kV oil immersed transformers still widely used compared with dry-type transformers?
In conventional outdoor power grid and industrial medium-load scenarios, three-phase oil immersed transformers have irreplaceable practical advantages. The oil circulation cooling system has larger heat capacity and stronger overload tolerance, which can cope with long-term outdoor high-temperature operation and sudden load surge better than air-cooled dry-type transformers. In addition, 315kVA and 400kVA oil immersed distribution transformers have lower manufacturing cost, simpler daily maintenance and longer service life. Dry-type transformers are only limited to indoor fire-proof occasions, while oil type models support pole-mounted and outdoor open-air installation with wider environmental adaptability, which is more in line with the needs of municipal and rural power grid construction.
5.3 How to maintain the 11/0.4kV 315kVA/400kVA oil immersed transformer in daily operation?
This fully sealed three-phase oil immersed power transformer belongs to low-maintenance power equipment with simple daily management. Daily inspection only requires regular visual checks for oil tank leakage, shell corrosion and loose terminal connections, and monitoring operating noise and oil temperature for abnormalities. It is necessary to clean radiator surface dust regularly to ensure unobstructed heat dissipation. Thanks to the fully sealed structure, internal insulating oil is isolated from outside air, so there is no need for annual oil replacement. Professional oil quality testing and partial discharge inspection can be conducted every 6–8 years. Standard simple maintenance can effectively avoid operational faults and extend the overall service life of the equipment.
