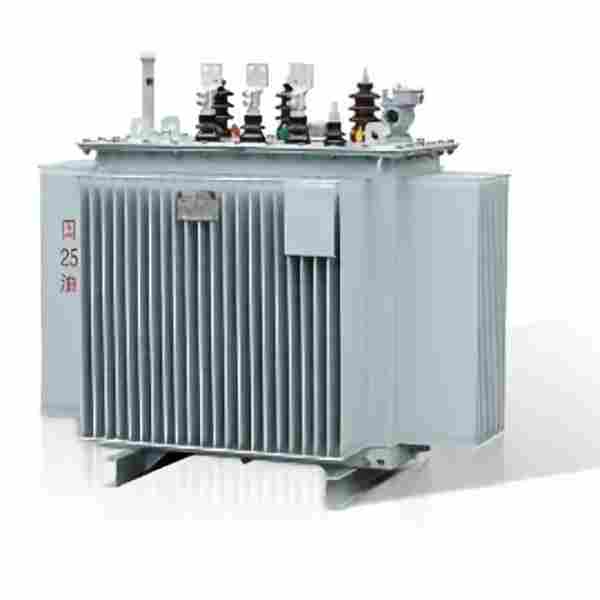

11kV Input 400V/440V Output Three-Phase Oil Immersed Transformers
1. Product Description
This three-phase oil immersed transformer is a standard medium-voltage step-down distribution transformer designed for global industrial and utility power grid systems, featuring fixed 11kV high voltage input and dual flexible low voltage output of 400V and 440V. Built to comply with IEC 60076 international power equipment standards and local grid operation specifications, this 11kV oil immersed power transformer serves as the core terminal voltage conversion device for 11kV medium-voltage overhead line and cable distribution networks, perfectly bridging the gap between municipal medium-voltage power transmission and on-site low-voltage power consumption equipment.
Manufactured with premium industrial-grade materials, the unit adopts high-performance low-loss grain-oriented silicon steel core and high-purity copper winding structure, effectively minimizing no-load loss, load loss and magnetic flux leakage during long-term continuous operation. Adopting proven ONAN oil-natural air-natural cooling technology and fully sealed corrugated oil tank design, this three-phase oil filled transformer eliminates the need for a conservator, effectively preventing insulating oil moisture, oxidation and external dust erosion. Compared with conventional 11kV distribution transformers with single 400V output, this model adds a dedicated 440V industrial voltage output, solving the voltage mismatch issue for imported mechanical equipment and international standard production lines.
Engineered for universal grid adaptability, the transformer supports stable operation under both 50Hz and 60Hz power frequencies, covering most regional power grid standards across Asia, Europe, Africa and the Middle East. With reliable mechanical stability, strong short-circuit resistance and low partial discharge performance, this 11kV step-down oil immersed transformer can handle long-term full-load operation and occasional grid load fluctuations. It is a mainstream cost-effective power transformation solution widely used in urban grid upgrading, rural electrification, industrial park power supply and commercial building power distribution projects.
2. Core Product Purposes
The primary purpose of the 11kV input 400V/440V output three-phase oil immersed transformer is to implement safe, stable and energy-efficient medium-to-low voltage conversion and terminal power distribution for 11kV medium-voltage power grids, delivering standardized low-voltage power for civil, commercial and industrial loads while optimizing overall grid operation efficiency.
In practical power system operation, this industrial oil immersed distribution transformer undertakes precise step-down conversion of 11kV medium transmission voltage. It converts high 11kV grid voltage into standard 400V three-phase voltage for conventional domestic industrial equipment, building power distribution and public facility power consumption, while providing dedicated 440V output for heavy-duty industrial machinery, imported automated production lines and overseas standard electrical devices. This dual-output design integrates universal civil power and special industrial power supply functions, avoiding redundant equipment configuration and simplifying on-site power distribution system layout.
Beyond basic voltage transformation, this low-loss oil immersed power transformer plays a vital role in grid stability and power safety protection. It effectively suppresses low-frequency harmonic interference and voltage fluctuation caused by load switching, compensates minor line voltage drop during power transmission, and maintains consistent low-voltage output quality. With excellent overload tolerance and short-circuit impact resistance, the equipment buffers instantaneous current surges from equipment startup and grid peak load changes, isolates circuit fault risks, and protects subsequent distribution cabinets, motors and terminal electrical appliances. It also reduces long-term power transmission loss, helping power grids and enterprises lower daily energy consumption and operational costs.
3. Typical Application Scenarios
3.1 Urban & Rural 11kV Power Grid Distribution Projects
This 11kV three-phase oil immersed transformer is the most commonly used terminal distribution equipment for urban and rural 11kV medium-voltage power grids. It is widely deployed in community substations, township power supply stations and rural electrification renovation projects. The stable 400V output fully meets residential lighting, household appliance power consumption and public facility power demands for schools, hospitals and street lighting systems, while the optimized sealed structure adapts to long-term unattended outdoor operation in suburban and rural areas, ensuring reliable daily power supply for regional residents.
3.2 Industrial Park & Manufacturing Factory Power Supply
Ideal for medium and small industrial parks, processing factories, machinery workshops and manufacturing bases relying on 11kV grid access, this dual-output oil immersed transformer meets mixed industrial power demands. The 400V voltage supplies power for conventional workshop equipment, ventilation systems and factory auxiliary facilities, while the 440V output perfectly matches imported automated equipment, heavy-duty compressors and international standard production lines. Its strong continuous load capacity adapts to 24-hour uninterrupted production operation, effectively solving voltage instability and equipment mismatch problems in industrial production scenarios.
3.3 Commercial Building & Public Infrastructure Power Distribution
The transformer is extensively applied in large shopping malls, office buildings, comprehensive commercial complexes and municipal public infrastructure projects. These facilities feature mixed loads of office equipment, lighting systems, central air conditioning and mechanical supporting devices. The dual 400V/440V output design can flexibly match different power equipment parameters, ensuring stable and safe operation of building power distribution systems. The fully sealed weather-resistant structure adapts outdoor and semi-outdoor substation installation environments, with low noise and high safety performance suitable for densely populated commercial and public areas.
3.4 Overseas Engineering & International Industrial Projects
Thanks to its 50Hz/60Hz dual-frequency compatibility and 440V international industrial voltage support, this 11kV oil immersed distribution transformer is highly popular in overseas municipal construction, cross-border factory projects and regional power grid renovation. It perfectly adapts to 11kV grid standards prevalent in Southeast Asia, the Middle East and Africa, solving the matching problem between local medium-voltage grids and international standard 440V industrial equipment, and providing compliant and stable power guarantee for global engineering and industrial investment projects.
4. Core Product Features
4.1 Dual 400V/440V Output for Diversified Power Matching
Different from traditional single-output 11kV distribution transformers, this three-phase oil immersed transformer is equipped with dual low-voltage output specifications of 400V and 440V. It covers both domestic universal industrial voltage and international special industrial voltage standards, realizing one-piece multi-purpose power supply. It can simultaneously support conventional domestic equipment and imported high-precision machinery, eliminating the need for separate customized transformers for different load devices, greatly improving project matching flexibility and reducing overall equipment procurement costs.
4.2 Ultra-Low Loss & High Energy-Saving Efficiency
Adopting high-grade low-loss silicon steel sheet core and precision pure copper winding process, this 11kV step-down transformer effectively reduces core loss and copper loss during operation. The optimized magnetic circuit and winding layout avoid magnetic flux leakage and abnormal heat generation, maintaining power conversion efficiency above 98% under long-term partial load and full-load operation. Compared with traditional old-fashioned transformers, it delivers more prominent energy-saving effects, effectively reducing long-term power consumption loss for power grid operation and industrial production, bringing significant economic benefits for end users.
4.3 Fully Sealed Structure & Excellent Environmental Adaptability
Featuring a fully sealed welded corrugated oil tank and standard ONAN natural cooling system, the transformer body has excellent waterproof, dustproof, moisture-proof and anti-corrosion performance. The external weather-resistant protective coating resists ultraviolet aging, rain erosion, high-temperature exposure and low-temperature freezing, adapting to outdoor open-air substations, dusty industrial sites and humid subtropical environments. The sealed design isolates internal insulating oil from external air, slowing oil aging and deterioration, and greatly extending equipment service life with low environmental adaptability limitations.
4.4 Stable Operation & Superior Safety Performance
The internal winding adopts multi-layer composite insulation and integral fastening technology, with strong mechanical stability and short-circuit impact resistance. It can effectively resist instantaneous short-circuit current and grid voltage surges caused by load mutations and grid fluctuations, avoiding coil deformation and equipment burnout. Equipped with standard pressure relief valves, oil level monitoring gauges and temperature sensing protection devices, the equipment can automatically release internal overpressure and monitor real-time operating status. The low partial discharge design ensures safe and reliable long-term operation under 11kV medium-voltage working conditions.
4.5 Dual-Frequency Universal Compatibility
Optimized electromagnetic parameters enable stable operation of this three-phase oil immersed transformer under both 50Hz and 60Hz global power grid frequencies. There is no efficiency attenuation, overheating or voltage deviation during frequency switching, perfectly adapting to domestic conventional 50Hz power grids and overseas 60Hz industrial power systems. The wide frequency compatibility makes it applicable for cross-regional power projects and international engineering construction, greatly improving the global versatility of 11kV medium-voltage distribution equipment.
4.6 Low Maintenance & High Comprehensive Cost Performance
This industrial-grade oil immersed distribution transformer has a mature and simplified internal structure without fragile vulnerable electronic components, with extremely low daily failure rate. The fully sealed structure avoids frequent insulating oil replacement and internal cleaning work, and daily maintenance only requires regular oil level inspection, oil quality testing and sealing performance checks. It supports long-term unattended outdoor operation, greatly saving later operation and maintenance manpower and material costs. With stable performance, flexible voltage matching and long service life, it has outstanding comprehensive cost performance in medium-voltage power distribution projects.
5. Frequently Asked Questions (FAQ)
Q1: What is the practical difference between 400V and 440V output of this 11kV oil immersed transformer?
The two low-voltage outputs serve completely different application scenarios while sharing the same high-voltage input and equipment safety standards. The 400V three-phase output is the mainstream standard for domestic industrial production, municipal power distribution and conventional mechanical equipment, suitable for most ordinary factory devices and public facility power loads. The 440V output is specially customized for imported automated equipment, international standard production lines and overseas industrial power consumption requirements. Mixing voltage usage will cause equipment under-voltage operation or burnout, so users need to select the corresponding output voltage strictly according to terminal equipment parameters.
Q2: Can this 11kV three-phase oil immersed transformer adapt to both indoor and outdoor installation?
Yes, this dual-output oil immersed distribution transformer supports both indoor power distribution room installation and outdoor open-air substation installation. The fully sealed anti-corrosion structure and weather-resistant shell enable stable operation in outdoor complex environments such as high temperature, humidity, dust and strong wind, with excellent lightning protection and anti-interference capabilities. For indoor installation, its low noise and low partial discharge performance meet indoor fire protection and environmental requirements. It is a versatile device with no strict installation environment restrictions, suitable for most conventional power distribution scenarios.
Q3: What daily maintenance work is required to ensure long-term stable operation of the 11kV 400V/440V transformer?
Daily maintenance is simple and standardized, focusing on three key inspection points. First, regularly check the oil tank welding seams, sealing gaskets and radiator components to eliminate insulating oil leakage risks, and observe oil level height and oil clarity, replacing deteriorated and turbid insulating oil in time. Second, clean dust and sundries on the radiator surface regularly to ensure unobstructed natural heat dissipation and prevent equipment overheating under long-term high-load operation. Third, periodically test winding insulation resistance and verify the stability of 400V and 440V output voltage, check the integrity of safety protection devices, and troubleshoot abnormal operating noise and temperature rise to avoid grid faults and equipment damage.
