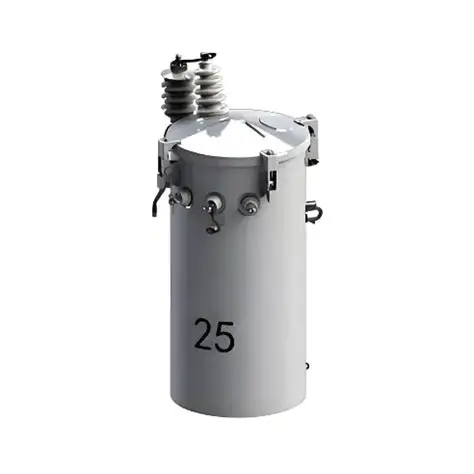

13.2Kv 13.8Kv 10Kva Single Phase Pole Transformer Outdoor for 50Hz and 60Hz Frequency

13.2Kv 13.8Kv 10Kva Single Phase Pole Transformer Outdoor for 50Hz and 60Hz Frequency

1. Product Description

The 13.2Kv & 13.8Kv 10Kva Single Phase Pole Transformer is a compact, outdoor-grade oil-immersed distribution transformer built for global single-phase power grid systems. Designed to support dual working frequencies of 50Hz and 60Hz, this overhead pole-mounted transformer features two mainstream primary high voltage ratings at 13.2kV and 13.8kV, making it fully compatible with North American, Southeast Asian and regional municipal medium-voltage distribution networks. Rated at 10Kva standard capacity, this lightweight single-phase power transformer delivers stable voltage stepping for low-load outdoor power supply scenarios, meeting ANSI, IEEE and CSA industry manufacturing standards.

Manufactured with high-grade CRGO silicon steel core and high-purity copper windings, this outdoor single phase pole transformer effectively reduces no-load loss and operational heat generation during long-term service. It adopts proven ONAN oil natural air natural cooling technology and fully sealed oil tank structure, which prevents internal insulating oil from moisture ingress, oxidation and aging under outdoor exposed conditions. Different from indoor transformers, this 50Hz/60Hz dual-frequency pole mounted unit is structurally reinforced with anti-corrosion coating and wind-resistant mounting brackets, ensuring consistent performance in variable outdoor climates. The flexible 13.2kV and 13.8kV voltage compatibility allows it to replace and upgrade most conventional single-phase distribution transformers used in rural and suburban overhead line systems.

2. Core Uses

The primary core purpose of this 10Kva single phase pole transformer is reliable medium-to-low voltage conversion for outdoor single-phase overhead power lines. It steps down 13.2kV or 13.8kV medium-voltage grid electricity into standard low-voltage power for residential households, small outdoor electrical devices and scattered terminal loads, solving high line loss and unsafe high-voltage direct supply issues in decentralized power supply areas. As a key outdoor distribution device, it stabilizes grid voltage, balances single-phase line load and optimizes end-user power quality for both 50Hz utility grids and 60Hz regional power systems.

Beyond basic voltage transformation, this dual-frequency outdoor pole transformer undertakes continuous power regulation and grid protection functions in remote and suburban power networks. Its 10Kva rated capacity is precisely calibrated for low and steady power consumption demands, avoiding energy waste common with oversized transformers. The sealed oil-immersed design maintains stable insulation and heat dissipation performance during long unattended outdoor operation, effectively reducing grid operation failure rates. It also supports minor load fluctuation adaptation, ensuring smooth and uninterrupted power delivery during daily power consumption peaks for single-family and small cluster users.

3. Application Scenarios

3.1 Rural & Suburban Residential Power Distribution

This 13.2Kv/13.8Kv 10Kva single phase pole transformer is the ideal power distribution solution for scattered rural households, suburban villas and remote residential clusters. Most rural overhead power grids adopt 13.2kV or 13.8kV medium-voltage transmission, and this outdoor pole-mounted equipment perfectly matches the grid voltage standards. With universal 50Hz and 60Hz frequency adaptability, it can be deployed in different countries and regions to provide stable low-voltage power for household lighting, home appliances and daily residential power consumption. The pole-mounted installation saves ground space and adapts to sparse rural building layouts.

3.2 Outdoor Municipal & Public Facility Power Supply

It is widely applied in municipal outdoor power supply projects including rural road street lighting, rural monitoring systems, scenic area outdoor equipment, highway roadside auxiliary facilities and village public service equipment. These public facilities feature low and stable power load, which perfectly fits the 10Kva capacity grade of this dual-frequency pole transformer. The all-weather outdoor structure resists wind, rain, high temperature and low temperature erosion, ensuring long-term stable operation of unattended public power equipment and reducing frequent maintenance work for municipal engineering teams.

3.3 Remote Area & Off-Grid Micro Power Systems

For remote mountainous areas, pastoral zones and island micro-grid projects with decentralized power loads, this outdoor single phase pole transformer serves as a core voltage conversion unit. It cooperates with small-scale off-grid photovoltaic power generation and wind power generation equipment to convert generated electric energy into usable standard low voltage, matching local single-phase power demand. The dual 50Hz and 60Hz frequency design adapts to different micro-grid operation standards, while the compact pole-mounted structure enables quick installation in areas with limited construction conditions.

3.4 Temporary Outdoor Engineering Power Supply

Thanks to its portable installation, stable performance and strong environmental adaptability, this 10Kva pole mounted transformer is also commonly used for temporary power supply in field construction, rural infrastructure renovation and outdoor engineering projects. It can quickly access 13.2kV and 13.8kV overhead lines to provide safe and stable power for small construction tools, temporary office equipment and on-site lighting systems. After project completion, the equipment can be easily disassembled and reused, delivering excellent cost performance for short-term engineering power supply scenarios.

4. Product Features

4.1 Dual 50Hz/60Hz Frequency Universal Compatibility

Specially optimized for global grid standards, this outdoor single phase pole transformer supports stable operation at both 50Hz and 60Hz power frequencies without any structural modification or parameter adjustment. It maintains precise voltage conversion accuracy between 13.2kV, 13.8kV high voltage and standard low-voltage output under different frequency conditions, with no voltage deviation, overheating or efficiency drop. This dual-frequency advantage enables wide global applicability, covering most Asia, Europe and American regional power grid operation standards.

4.2 Dual 13.2kV/13.8kV High Voltage Adaptability

Covering two mainstream medium voltage grades of 13.2kV and 13.8kV, this 10Kva pole transformer features flexible grid access capability. It can be directly connected to 13.2kV rural distribution lines and 13.8kV municipal overhead grids, eliminating the need for equipment replacement according to different grid voltage specifications. The internal winding and insulation structure is strictly calibrated for dual voltage input, ensuring safe isolation and stable power conversion in different medium-voltage line environments.

4.3 Outdoor All-Weather Sealed & Corrosion-Resistant Structure

Built with fully sealed integral oil tank and thickened anti-rust metal shell, this outdoor pole mounted transformer delivers superior waterproof, dustproof, moisture-proof and anti-corrosion performance. The vacuum oil injection process prevents insulating oil deterioration and emulsification under long-term outdoor humid and temperature-changing conditions. Equipped with professional wind-resistant pole mounting fixtures, it can withstand strong wind, heavy rain and extreme temperature weather, ensuring stable outdoor operation all year round with strong environmental tolerance.

4.4 Low Loss & Energy-Saving Operation Performance

Adopting high-quality low-loss silicon steel core and high-conductivity pure copper winding, the equipment minimizes magnetic flux leakage and no-load loss. Compared with traditional old-fashioned single-phase pole transformers, it features lower operating noise and higher power transmission efficiency. Even with 24-hour long-term unattended operation, it maintains low energy consumption, effectively reducing long-term grid operation energy costs and meeting modern power grid energy-saving and emission-reduction requirements.

4.5 Compact Size & Maintenance-Free Convenience

With optimized 10Kva capacity structural design, the whole machine is lightweight and compact, featuring simple installation and firm fixation on utility poles. The fully sealed design cancels traditional breathing devices and oil storage cabinets, realizing long-term maintenance-free operation. Users only need regular visual inspection of external conditions without frequent oil testing or replacement, greatly reducing later operation and maintenance labor and material costs for power departments.

5. Frequently Asked Questions (FAQ)

5.1 Can this 10Kva pole transformer work for both 50Hz and 60Hz grid systems?

Yes, this single phase outdoor pole transformer is professionally optimized for dual-frequency operation, fully compatible with global mainstream 50Hz and 60Hz power grid standards. The internal core magnetic circuit and winding parameters are calibrated to adapt to frequency differences, so it will not generate extra heat, voltage instability or efficiency attenuation during frequency switching. Whether used in 50Hz civil power grids or 60Hz municipal and industrial distribution systems, it can maintain long-term stable 13.2kV/13.8kV voltage conversion performance.

5.2 What is the difference between 13.2kV and 13.8kV input voltage for this transformer?

The 13.2kV and 13.8kV are two common regional medium-voltage grid standards with slight voltage differences, applicable to different countries and municipal power systems. This 10Kva single phase pole transformer supports both voltage grade access without hardware modification. 13.2kV is mostly used in rural and suburban basic distribution networks, while 13.8kV is more common in urban municipal overhead grids. The equipment can automatically adapt to the input voltage and output stable standard low voltage, ensuring consistent power supply quality for end users.

5.3 Is this outdoor pole mounted transformer suitable for long-term unattended operation?

Absolutely. This dual-frequency 10Kva transformer adopts a fully sealed oil-immersed maintenance-free structure, with excellent outdoor weather resistance and stable operational performance. It effectively resists external dust, moisture and corrosive substances, avoiding internal insulation aging and oil deterioration. Under normal grid load conditions, it can operate continuously for years without manual maintenance, only requiring routine external inspection. It is very suitable for unattended outdoor scenarios such as rural power distribution, public facility power supply and remote micro-grid systems.
