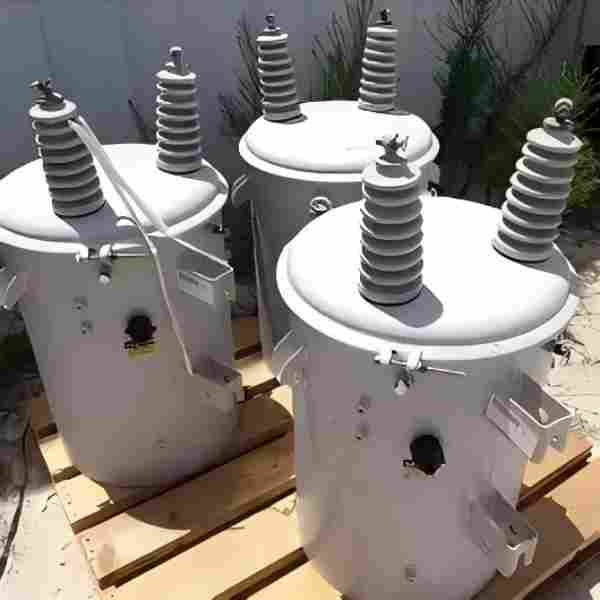

15kVA 16kVA 25kVA 37.5kVA 50kVA Single Phase Pole Mounted Distribution Transformer
15kVA 16kVA 25kVA 37.5kVA 50kVA Single Phase Pole Mounted Distribution Transformer | Oil Immersed Overhead Power Transformer
1. Product Overview
This series covers 15kVA, 16kVA, 25kVA, 37.5kVA and 50kVA single phase pole mounted distribution transformers, serving as standard oil immersed overhead power transformation equipment for global residential and light commercial power distribution systems. Designed specifically for utility pole installation, these compact single phase distribution transformers adopt mature oil immersed cooling technology and fully sealed tank structure, fully compliant with ANSI, IEEE and IEC international industry standards. They are widely deployed in overhead medium voltage distribution networks to step down high line voltage to standard low voltage for end-user power consumption.
Manufactured with high-quality cold-rolled grain-oriented silicon steel core and high-purity copper winding, each small-capacity pole mounted transformer delivers stable electromagnetic performance and low operating loss. Adopting proven ONAN oil-natural air-natural cooling mode, the equipment relies on natural oil circulation and air convection for heat dissipation, eliminating the need for auxiliary cooling fans. The sealed corrugated tank structure effectively isolates internal insulating oil from external air, preventing moisture ingress, dust contamination and oil oxidation during long-term outdoor operation. With multiple capacity grades ranging from 15kVA up to 50kVA, users can select precise models to match low-load single-phase power demands, avoiding capacity waste or insufficient power supply in scattered power distribution scenarios.
Engineered for universal grid compatibility, these overhead single phase transformers support both 50Hz and 60Hz power frequency operation, adapting to most regional power grid standards worldwide. Available in conventional externally protected and CSP completely self-protected configurations, the series integrates lightning protection, overcurrent protection and pressure relief functions to suit unattended outdoor working conditions. Featuring lightweight body, compact layout and standardized mounting structure, this full-range small-capacity pole mounted transformer series has become the most practical and cost-effective solution for rural electrification, suburban grid upgrading and scattered single-phase load power supply projects.
2. Core Product Purposes
The core purpose of these 15kVA to 50kVA single phase pole mounted distribution transformers is to implement safe, reliable and low-loss voltage step-down and terminal power distribution for overhead medium voltage power grids, providing stable single-phase low-voltage power for residential households, small commercial facilities and light industrial single-phase loads.
In daily utility grid operation, these oil immersed overhead transformers undertake basic and critical power conversion tasks. They convert high medium-voltage power transmitted by overhead power lines into usable standard low voltage, solving the voltage mismatch problem between municipal transmission grids and end-user electrical equipment. The diversified capacity design from 15kVA, 16kVA light load grades to 25kVA, 37.5kVA and 50kVA medium load grades enables refined power supply matching: low-capacity models adapt to single-household and ultra-small load power supply, while medium-capacity units serve clustered residential communities and small commercial loads, realizing accurate load partitioning for scattered single-phase power distribution networks.
Beyond basic voltage transformation, these low-loss single phase distribution transformers optimize regional grid operating quality. They effectively suppress overhead line voltage fluctuation and minor harmonic interference caused by frequent load switching, stabilize terminal output voltage, and reduce electric energy loss during power transmission and conversion. Equipped with reliable surge resistance and short-circuit protection performance, the transformers buffer instantaneous current surges caused by lightning strikes and equipment startup, isolate local circuit faults, and prevent fault spreading to the upper grid. They also reduce manual maintenance pressure for outdoor unattended power distribution points, improving the overall stability and operational efficiency of urban and rural single-phase power grids.
3. Typical Application Scenarios
3.1 Rural Household Scattered Power Supply
These single phase pole mounted distribution transformers are the primary equipment for rural electrification projects and remote village power supply. Rural power loads are mostly scattered single-phase household electricity with low and dispersed power demand. The 15kVA and 16kVA ultra-small capacity models are perfectly suitable for single remote households and scattered rural residents, while 25kVA and 37.5kVA grades serve small village clusters. The pole-mounted installation method adapts rural overhead line layout features, saving land occupation and construction costs, and stably supplies power for rural household lighting, household appliances and daily living facilities.
3.2 Suburban Residential & Villa Community Power Distribution
Widely applied in low-density suburban residential areas, villa communities and town residential blocks, these overhead transformers meet concentrated small-scale single-phase power load demands. The 50kVA high-capacity model is ideal for multi-household clustered residential areas with relatively high comprehensive power consumption, supporting simultaneous operation of household high-power electrical equipment. The fully sealed weather-resistant structure adapts outdoor open-air installation environments, resisting wind, rain and ultraviolet aging, ensuring long-term stable power supply for suburban residential communities.
3.3 Small Commercial & Street Side Facility Power Supply
The transformer series fully meets the power demand of street-side shops, small supermarkets, rural service stations and community public facilities. Most small commercial facilities mainly use single-phase power with fluctuating low-to-medium loads. The flexible capacity range from 16kVA to 37.5kVA can perfectly match commercial lighting, office equipment and small business electrical loads. Its compact pole-mounted design avoids ground occupation in crowded commercial streets, providing safe and stable power guarantee for urban and rural small commercial economic operation.
3.4 Light Industrial & Agricultural Auxiliary Power Supply
These oil immersed single phase transformers are also commonly used for agricultural irrigation equipment, rural breeding bases, small processing workshops and industrial single-phase auxiliary equipment power supply. Many agricultural and light industrial auxiliary devices adopt single-phase power design with no demand for three-phase power. The 25kVA to 50kVA capacity models can continuously supply power for water pumps, processing machinery and ventilation equipment, adapting to field outdoor harsh environments and meeting the power needs of agricultural production and rural light industry development.
3.5 Temporary Engineering & Field Mobile Power Supply
Thanks to their lightweight structure, convenient installation and strong environmental adaptability, these pole mounted distribution transformers are widely used for field engineering temporary power supply, road construction maintenance and outdoor monitoring system power supply. The small-capacity models are easy to transport and install, capable of quickly building temporary single-phase power supply systems for field operation sites, perfectly matching short-term and mobile engineering power consumption demands.
4. Core Product Features
4.5-Grade Full-Capacity Flexible Matching
Covering five mainstream small and medium capacities of 15kVA, 16kVA, 25kVA, 37.5kVA and 50kVA, this single phase pole mounted transformer series achieves full coverage of global low-load single-phase power distribution scenarios. Each capacity grade is precisely calibrated for targeted load ranges: 15kVA and 16kVA for ultra-light scattered loads, 25kVA and 37.5kVA for conventional residential and commercial loads, and 50kVA for medium concentrated single-phase loads. Users can select the most suitable model according to actual load size and future growth demand, realizing zero-waste refined power supply matching.
4.2 Low Energy Loss & High Energy-Saving Performance
Adopting high-grade low-loss grain-oriented silicon steel core and precision copper winding process, these oil immersed overhead transformers effectively reduce no-load loss, load loss and magnetizing current during long-term operation. The optimized closed magnetic circuit structure avoids magnetic flux leakage and abnormal heat generation, maintaining high power conversion efficiency even under long-term partial load operation which is common in scattered single-phase power grids. Compared with traditional old-fashioned transformers, the series features lower operating energy consumption, effectively reducing long-term power grid loss and helping power utilities reduce operational costs.
4.3 Fully Sealed Oil Immersed & Superior Weather Resistance
The whole machine adopts fully sealed welded steel tank and corrugated heat dissipation structure with no conservator design, completely isolating internal insulating oil from external humid air and dust. The outer surface is coated with weather-resistant and anti-corrosion protective paint that meets IEEE standard requirements, resisting ultraviolet aging, rain erosion, strong wind impact and high-low temperature alternating changes. It can operate stably in outdoor open-air environments all year round, adapting to rural, suburban and field harsh working conditions with extremely low environmental failure rate.
4.4 Professional Pole-Mounted Compact Structure
Specially optimized for utility pole installation, the single phase distribution transformer features compact overall layout, lightweight body and standardized mounting lugs and brackets. It can be quickly installed on concrete or steel poles without occupying ground space, effectively avoiding pedestrian safety hazards and land resource waste. The internal winding adopts integral fastening technology, with strong mechanical vibration resistance, ensuring structural stability during long-term outdoor wind vibration and load fluctuation operation.
4.5 Multiple Protection & High Operation Safety
Supporting both conventional external protection and CSP completely self-protected design, the transformer integrates built-in lightning arrester, overload fuse and pressure relief protection devices. It can effectively resist overhead line lightning surge, instantaneous short-circuit current and overvoltage impact, automatically isolate faulty circuits and prevent equipment burnout and grid fault spreading. The multi-layer composite insulation structure improves internal insulation strength, meeting strict ANSI and IEC safety standards for outdoor medium voltage distribution equipment.
4.6 Dual-Frequency Compatibility & Low Maintenance Cost
Optimized electromagnetic parameters enable stable operation under both 50Hz and 60Hz global power grid frequencies, with no efficiency attenuation or voltage deviation during frequency switching, suitable for domestic and overseas power projects. The fully sealed structure avoids frequent insulating oil replacement and internal cleaning work. Daily maintenance only requires regular oil level inspection, sealing check and dust cleaning, with low daily failure rate and long service life. It features low later operation and maintenance investment and high comprehensive cost performance in small-capacity single-phase power distribution projects.
5. Frequently Asked Questions (FAQ)
Q1: How to choose the correct capacity among 15kVA, 16kVA, 25kVA, 37.5kVA and 50kVA pole mounted transformers?
Capacity selection depends entirely on actual on-site single-phase load quantity and peak power consumption. The 15kVA and 16kVA models are suitable for single remote rural households and ultra-small scattered loads with low and stable power demand. The 25kVA specification is the most universal option, ideal for ordinary rural households and small street-side commercial facilities. The 37.5kVA model fits small village clusters and community public facility loads with slightly higher power consumption. The 50kVA high-capacity transformer is recommended for multi-household residential clusters and suburban low-density communities with obvious peak power consumption. It is always suggested to reserve 10%–20% capacity margin to adapt to future household electrical equipment upgrading and load growth.
Q2: What are the advantages of oil immersed single phase pole mounted transformers over dry-type models for outdoor distribution?
Oil immersed pole mounted distribution transformers have obvious advantages in outdoor unattended power distribution scenarios. First, the ONAN oil cooling system provides more uniform and efficient heat dissipation, with stronger overload resistance and continuous operation capability, suitable for long-term fluctuating load operation. Second, the fully sealed oil tank structure has superior waterproof, dustproof and anti-corrosion performance, adapting to complex outdoor weather changes. Third, oil immersed units have lower manufacturing cost and longer service life under field working conditions, with simpler daily maintenance. Dry-type transformers are more suitable for indoor environments, while this oil immersed series is more targeted and cost-effective for overhead outdoor power grid distribution.
Q3: What key maintenance steps ensure long-term stable operation of outdoor small-capacity pole mounted transformers?
Daily maintenance for these single phase pole mounted transformers is simple and standardized, focusing on three core points. First, regularly inspect the oil tank welding seams, sealing gaskets and terminal positions to eliminate insulating oil leakage hidden dangers, and check oil level and oil clarity to replace deteriorated insulating oil in time. Second, clean dust and debris on the corrugated radiator surface regularly to ensure unobstructed natural heat dissipation and prevent equipment overheating during peak load operation. Third, periodically test winding insulation resistance and output voltage stability, check the integrity of lightning protection and overcurrent protection devices, and eliminate abnormal operating noise and temperature rise to ensure year-round safe and stable operation.
