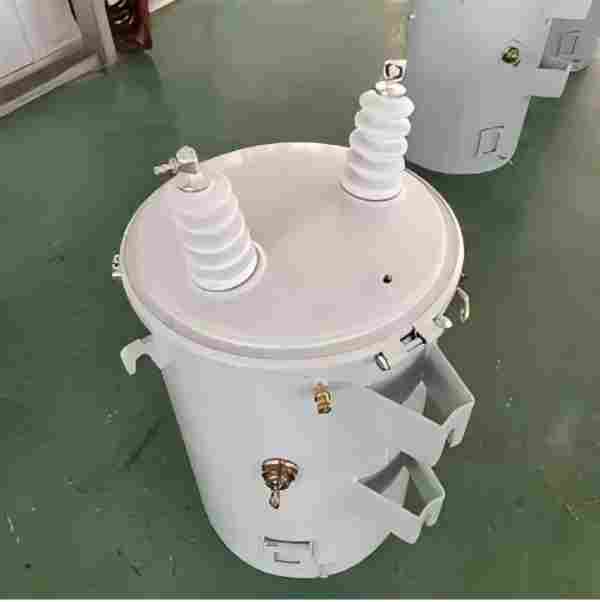

15kVA 25kVA 37.5kVA Single Phase Pole Mounted Transformer

15kVA 25kVA 37.5kVA Single Phase Pole Mounted Transformer | 13.8kV Input 120/240V Oil Immersed Distribution Transformer

1. Product Description

This single phase pole mounted transformer series covers three practical industrial and residential capacity grades including 15kVA, 25kVA and 37.5kVA, specially engineered for outdoor overhead power distribution systems. As a standard oil immersed distribution transformer, this unit features a fixed 13.8kV medium voltage primary input and classic 120/240V center-tapped dual secondary output, fully conforming to ANSI and utility grid specifications widely adopted in North American and global regional single-phase power networks. It serves as the terminal voltage conversion core device for 13.8kV overhead distribution lines, perfectly bridging the gap between medium-voltage grid transmission and end-user residential and light commercial power consumption.

Built with field-proven industrial craftsmanship, this overhead single phase transformer adopts high-performance low-loss grain-oriented silicon steel core and high-purity copper winding structure. The optimized magnetic circuit and integral winding clamping design effectively reduce no-load loss, operating vibration and long-term temperature rise, solving the high energy consumption and unstable output issues common in traditional old-fashioned pole-mounted transformers. Adopting mature ONAN oil-natural air-natural cooling technology and fully sealed corrugated oil tank structure, the equipment requires no conservator design, completely isolating internal insulating oil from external dust, moisture and corrosive air to avoid oil aging and insulation degradation.

Designed for unattended outdoor operation, the 15kVA, 25kVA and 37.5kVA capacity models cover all mainstream low-load single-phase power distribution scenarios, from scattered single-household power supply to small community clustered power consumption. Supporting stable 60Hz mainstream grid frequency operation and compatible with partial 50Hz grid systems, this 13.8kV to 120/240V pole mounted transformer delivers precise split-phase voltage output, enabling independent 120V low-power and 240V high-power power supply. With compact pole-mounted layout, strong weather resistance and reliable short-circuit protection performance, it is the most widely used cost-effective solution for rural electrification, suburban grid upgrading and remote area overhead power distribution projects.

2. Core Product Purposes

The core purpose of this 13.8kV single phase pole mounted distribution transformer is to achieve safe, low-loss and stable step-down voltage conversion for outdoor 13.8kV medium-voltage overhead power lines, providing standardized 120/240V split-phase low voltage for residential households, small commercial facilities and rural auxiliary equipment, and ensuring the stability and safety of terminal single-phase power distribution.

In actual utility grid operation, this oil immersed overhead transformer undertakes critical terminal power transformation tasks. It efficiently steps down high 13.8kV medium transmission voltage to user-friendly 120/240V dual voltage, meeting differentiated power consumption demands: 120V output supports low-power loads such as household lighting, small electronic devices and indoor low-current circuits, while 240V output adapts to high-power residential appliances, commercial equipment and rural mechanical devices. The gradient capacity design of 15kVA, 25kVA and 37.5kVA realizes refined load matching, avoiding equipment overload operation or capacity waste in scattered single-phase power supply scenarios.

Beyond basic voltage conversion, this low-loss single phase power transformer optimizes the overall operating quality of regional overhead power grids. It effectively suppresses line voltage fluctuation and minor harmonic interference caused by frequent load switching and seasonal power consumption changes, compensates slight voltage drop generated by long-distance overhead transmission, and maintains consistent terminal voltage output. Equipped with excellent lightning surge resistance and overload tolerance, it buffers instantaneous current surges caused by outdoor lightning strikes and equipment startup, isolates local circuit faults, prevents fault spread to upper-level grids, and greatly improves the reliability of rural and suburban single-phase power supply systems.

3. Typical Application Scenarios

3.1 Rural Electrification & Remote Village Power Supply

This 13.8kV 120/240V single phase pole mounted transformer is the primary power distribution equipment for rural overhead power grid construction and remote village electrification projects. Most rural and remote areas adopt 13.8kV medium-voltage overhead transmission mode with scattered single-phase power loads. The 15kVA model fits single remote household ultra-light load demands, the 25kVA model suits ordinary rural household clusters, and the 37.5kVA high-capacity unit meets centralized power supply for small village communities. The pole-mounted installation method saves land resources, adapts rural overhead line layout, and stably supports long-term unattended outdoor power supply.

3.2 Suburban Residential & Villa Community Distribution

Widely applied in low-density suburban residential areas, villa communities and town residential blocks, this oil immersed distribution transformer perfectly matches the single-phase power demand of overseas residential communities. The standard 120/240V split-phase output fully complies with North American and international residential power standards, supporting simultaneous operation of household high-power electrical appliances and daily low-power equipment. The fully sealed weather-resistant structure resists ultraviolet aging, rain erosion and temperature changes, ensuring stable and safe power supply for suburban residential areas all year round.

3.3 Small Commercial & Street Facility Power Supply

The transformer series is ideal for street-side shops, small supermarkets, community service stations and rural public facilities. Small commercial loads are dominated by single-phase power with fluctuating low and medium loads, and the three capacity grades can flexibly match commercial lighting, office equipment and small business electrical demands. Its compact pole-mounted design avoids ground occupation in crowded commercial streets, effectively reducing on-site construction difficulty and improving the safety and tidiness of urban and rural commercial power distribution networks.

3.4 Agricultural & Field Auxiliary Power Supply

It is extensively used for rural agricultural irrigation equipment, breeding base ventilation systems, field monitoring devices and rural small processing machinery power supply. Most agricultural auxiliary equipment adopts single-phase power design without three-phase load demand. The 25kVA and 37.5kVA models can continuously and stably supply power for field mechanical equipment, adapting to harsh outdoor field environments, and provide reliable power guarantee for modern agricultural production and rural economic development.

4. Core Product Features

4.1 Standard 13.8kV to 120/240V Split-Phase Voltage Matching

Specially optimized for 13.8kV medium-voltage overhead grids, this single phase pole mounted transformer features professional center-tapped winding design, realizing accurate 120/240V dual split-phase output. Different from single-voltage transformers, it can independently output two low-voltage specifications, flexibly meeting mixed high and low power consumption demands of residential and commercial loads. The strict voltage ratio calibration ensures no output deviation under fluctuating load conditions, fully complying with ANSI utility voltage standards and global single-phase power distribution specifications.

4.2 Multi-Capacity Gradient for Refined Load Matching

Covering 15kVA, 25kVA and 37.5kVA three mainstream low-load capacities, the product series achieves full coverage of scattered single-phase power supply scenarios. The 15kVA lightweight model is tailored for ultra-small scattered loads, the 25kVA universal model adapts to most conventional residential and small commercial loads, and the 37.5kVA enhanced model meets clustered residential and medium commercial load demands. Users can select models according to actual peak load and future load growth, realizing precise capacity matching and avoiding equipment overload or resource waste.

4.3 Low Loss Design & Outstanding Energy-Saving Performance

Adopting high-grade low-loss silicon steel core and high-purity copper winding process, this oil immersed distribution transformer effectively reduces core no-load loss and winding load loss during long-term operation. The optimized closed magnetic circuit structure eliminates magnetic flux leakage and abnormal heat generation, maintaining high power conversion efficiency even under long-term partial load operation common in rural and suburban grids. Compared with traditional transformers, it significantly reduces grid power transmission loss, lowering long-term operational costs for power utilities and end users.

4.4 Fully Sealed Oil Immersed & Superior Weather Resistance

Equipped with fully sealed welded oil tank and corrugated natural heat dissipation structure, the transformer requires no open conservator, completely isolating internal insulating oil from external humid air and dust. The outer shell adopts weather-resistant and anti-corrosion coating, which can resist strong wind impact, rain erosion, ultraviolet aging and high-low temperature alternating changes. It can operate stably in outdoor open-air environments for a long time, adapting to rural, suburban and field harsh working conditions with extremely low environmental failure rate.

4.5 Compact Pole-Mounted Structure & Easy Installation

Optimized for utility pole installation, the single phase overhead transformer features compact overall layout and lightweight body, with standardized mounting brackets and reserved installation ports. It can be quickly fixed on concrete or steel poles without occupying ground space, saving construction land and avoiding pedestrian safety hazards. The internal integral winding fastening technology enhances mechanical vibration resistance, ensuring structural stability during long-term outdoor wind vibration and load fluctuation operation.

4.6 Complete Protection & High Operational Safety

Integrating built-in lightning protection, overload protection and overcurrent pressure relief devices, this 13.8kV pole mounted transformer can effectively resist outdoor lightning surges, instantaneous short-circuit currents and grid voltage fluctuations. The multi-layer composite insulation structure improves internal insulation strength, avoiding insulation breakdown and equipment burnout under medium-voltage operation. The low partial discharge design ensures safe and reliable unattended operation, meeting strict outdoor power equipment safety standards.

4.7 Low Maintenance & Long Service Life

With mature and reliable internal structure and no fragile vulnerable parts, this oil immersed single phase transformer has an extremely low daily failure rate. The fully sealed structure avoids frequent insulating oil replacement and internal cleaning work, and daily maintenance only requires regular oil level inspection, sealing check and radiator dust cleaning. It supports long-term unattended outdoor operation, greatly saving later operation and maintenance costs, and has high comprehensive cost performance in low-load single-phase power distribution projects.

5. Frequently Asked Questions (FAQ)

Q1: How to select between 15kVA, 25kVA and 37.5kVA 13.8kV pole mounted transformers?

Capacity selection is determined by actual on-site peak load and power supply coverage. The 15kVA model is suitable for single remote households, independent field monitoring equipment and ultra-small scattered single-phase loads with stable and low power consumption. The 25kVA is the most versatile specification, ideal for ordinary rural households, single street shops and conventional suburban household power supply scenarios, balancing cost and performance perfectly. The 37.5kVA high-capacity model is recommended for small village clusters, multiple-household residential groups and small commercial block loads with obvious peak power consumption. It is recommended to reserve 10%–20% capacity margin to cope with future household electrical equipment upgrades and load growth.

Q2: What is the working principle and usage difference of 120V and 240V dual output?

This transformer adopts a center-tapped secondary winding design, which outputs two mutually independent 120V voltages and a combined 240V voltage, realizing dual-voltage integrated power supply. The 120V output is mainly used for low-power loads such as residential lighting, small household appliances and indoor low-current circuits, featuring safe and low-power operation. The 240V output is dedicated to high-power equipment including household central air conditioning, electric water heaters and small commercial high-power devices. The two voltages can be used simultaneously without mutual interference, effectively meeting the mixed power consumption demands of modern residential and small commercial scenarios.

Q3: What key maintenance points ensure long-term stable outdoor operation?

Daily maintenance for outdoor single phase pole mounted transformers focuses on three core inspections to avoid field faults. First, regularly check the oil tank welding seams, sealing gaskets and terminal connections to eliminate insulating oil leakage risks, and observe oil level and oil clarity, replacing deteriorated and turbid insulating oil in time to ensure insulation and heat dissipation performance. Second, clean dust and debris on the corrugated radiator surface regularly to keep the natural heat dissipation system unobstructed and prevent equipment overheating during peak load operation. Third, periodically test winding insulation resistance and 120/240V output voltage stability, check the integrity of lightning protection and overload protection devices, and troubleshoot abnormal noise and temperature rise to ensure year-round safe and stable operation.
