15KVA 45KVA 100KVA 400KVA Three-Phase Transformers 50Hz 60Hz 10kV Input 380V/400V/440V Output
1. Product Overview
This series of 15KVA 45KVA 100KVA 400KVA three-phase transformers is a versatile medium-voltage step-down power distribution transformer solution designed for global industrial and commercial power systems. Featuring dual-frequency compatibility of 50Hz and 60Hz, the equipment adopts standard three-phase winding structure with a fixed 10kV high voltage input and flexible low-voltage output options including 380V, 400V and 440V, fully covering mainstream power voltage standards in Asia, Europe, America and Southeast Asia markets.
Manufactured complying with IEC and IEEE international industry standards, this multi-capacity three-phase step-down transformer series includes four mainstream rated capacities to meet diversified load demands from small equipment power supply to factory centralized power distribution. Available in both oil-immersed and dry-type structural configurations, the transformer integrates high-quality grain-oriented silicon steel core and high-purity copper windings, achieving low loss, stable voltage conversion and strong grid adaptability. As one of the most popular medium-to-small power distribution transformers, it effectively solves the voltage matching problem between 10kV medium-voltage grid and low-voltage terminal equipment, serving as essential power conversion equipment for civil, industrial and engineering projects.
2. Core Product Features
2.1 Full Series Capacity Coverage & Flexible Voltage Matching
The product line covers four classic capacities: 15KVA, 45KVA, 100KVA and 400KVA, precisely matching different power load scenarios from light-load precision equipment to high-load factory production lines. Supporting customized output of 380V, 400V and 440V three-phase low voltage, it can adapt to different regional power grid standards and equipment voltage requirements. Whether it is 380V industrial power supply for domestic conventional factories, 400V commercial power distribution for European projects, or 440V mechanical equipment power supply for American and Southeast Asian engineering projects, this 10kV input three-phase transformer can achieve accurate voltage conversion without additional voltage matching accessories.
2.2 Dual-Frequency Universal Design for Global Applications
Different from single-frequency transformers on the market, this series of three-phase distribution transformers supports stable operation at both 50Hz and 60Hz power frequencies. The optimized winding turns ratio and core resonance design avoid frequency deviation caused power loss, voltage instability and equipment heating. It can be directly applied to 50Hz conventional power grids in China, Europe and most Asian countries, as well as 60Hz power systems in the United States, Japan, South Korea and Southeast Asia, realizing one equipment model suitable for global projects and greatly reducing model selection and inventory costs for engineering contractors and power equipment suppliers.
2.3 Low Loss & High Operational Stability
Adopting advanced staggered core lamination process and high-conductivity copper winding coils, the transformer effectively reduces no-load loss, load loss and operating noise during long-term operation. The whole machine features low temperature rise, strong anti-overload capability and excellent short-circuit resistance. The standard Dyn11 connection group ensures balanced three-phase voltage and current, effectively suppressing grid harmonic interference and avoiding voltage imbalance that affects terminal equipment operation. Even in environments with fluctuating grid voltage and unstable load, the 10kV step-down transformer can maintain continuous and stable power output, with power conversion efficiency up to 99%.
2.4 Diversified Structural Forms & Strong Environmental Adaptability

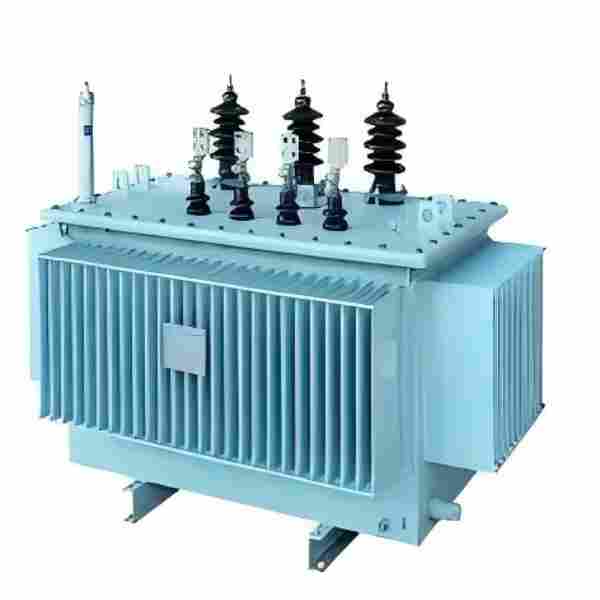

This universal three-phase transformer provides oil-immersed and dry-type two structural options. The oil-immersed type adopts fully sealed corrugated oil tank design, with good heat dissipation effect, low maintenance and long service life, suitable for outdoor substation and open-air power distribution scenarios. The dry-type transformer features flame-retardant, explosion-proof and dust-proof performance, with high safety level, ideal for indoor workshops, commercial buildings and densely populated areas. The equipment can operate stably in the temperature range of -40℃ to +45℃, adapting to high-temperature, humid, dusty and other complex working environments, with strong environmental anti-interference ability.
2.5 Low Maintenance & High Cost Performance
The whole series of transformers adopts modular standardized production process, with reliable overall structure and low failure rate. The dual-frequency adaptive design eliminates the need for frequency conversion transformation during cross-regional use, saving later renovation costs. The high-efficiency energy-saving design greatly reduces long-term operating power consumption, and the durable winding and core materials extend the equipment service life to more than 25 years. It is a high-cost-performance universal power transformation device widely recognized in the medium and small capacity transformer market.
3. Core Product Purposes
The core function of 15KVA/45KVA/100KVA/400KVA 50Hz 60Hz three-phase transformers with 10kV input and 380V/400V/440V output is medium-voltage step-down power conversion and safe power distribution. It professionally converts 10kV medium-voltage industrial grid electric energy into usable three-phase low-voltage power for industrial equipment, commercial electrical systems and engineering machinery, realizing safe isolation and stable transmission of electric energy.
In actual power system operation, this universal three-phase transformer also undertakes key functions such as grid load balancing, voltage stabilization and electrical isolation. It can effectively isolate high and low voltage circuits, prevent high-voltage grid surge impact on low-voltage equipment, and ensure the safety of operators and terminal electrical devices. For new energy distributed power supply, temporary engineering power consumption and factory self-use power distribution scenarios, it can also complete voltage matching and power stabilization, improve grid power utilization efficiency, and avoid power waste and equipment damage caused by voltage mismatch and frequency inconsistency.
4. Typical Application Scenarios
4.1 Small and Medium Industrial Factory Power Distribution
This multi-capacity three-phase step-down transformer is widely used in processing factories, machinery workshops, food factories, packaging plants and other small and medium-sized industrial enterprises. 15KVA and 45KVA models are suitable for small workshop equipment power supply and auxiliary electrical system power distribution; 100KVA and 400KVA high-capacity models are used for factory main power distribution cabinets and production line centralized power supply. With 380V/400V/440V flexible output and 50/60Hz dual-frequency adaptation, it can fully meet the power demand of industrial motors, mechanical equipment and factory electrical systems.
4.2 Commercial Building & Civil Community Power Supply
In urban commercial complexes, office buildings, residential communities and shopping malls, this 10kV input low-voltage output transformer serves as terminal power distribution equipment. The dry-type transformer model is preferred for indoor power distribution due to its safety and environmental protection, providing stable 380V commercial power and 220V household power after voltage conversion. The dual-frequency design also supports power supply matching for imported commercial electrical equipment, solving the problem of incompatible frequency and voltage of international equipment in domestic commercial scenarios.
4.3 Engineering Construction & Temporary Power Projects
For infrastructure construction sites, road engineering, municipal projects and overseas engineering contracting projects, this universal three-phase transformer is the preferred temporary power supply equipment. Its 50Hz and 60Hz dual-frequency compatibility adapts to global engineering standards, and multi-capacity models can flexibly match temporary construction load changes. The 440V output model can perfectly support imported engineering machinery and large construction equipment, effectively solving the problem of inconsistent power standards in cross-regional engineering projects.
4.4 New Energy & Special Equipment Supporting Power Supply
It is widely used in distributed photovoltaic power stations, small wind power systems and energy storage power distribution units, completing the step-down grid connection of new energy power generation. At the same time, it is also applicable to supporting power supply of medical equipment, precision instruments, mining equipment and special industrial equipment. The stable voltage output and frequency adaptive capability ensure the long-term safe operation of high-precision and high-demand electrical equipment, avoiding equipment failure caused by power parameter mismatch.
5. Frequently Asked Questions (FAQ)
Q1: Can this series of 10kV three-phase transformers work stably under both 50Hz and 60Hz grid conditions?
Yes, this full-series three-phase transformer is professionally optimized for dual-frequency operation. Different from ordinary single-frequency transformers that are prone to overheating, low efficiency and voltage deviation when used across frequencies, this product adopts frequency-adaptive core and winding design, which can automatically adapt to 50Hz conventional power grids and 60Hz industrial power systems. Whether used in domestic 50Hz grid environments or overseas 60Hz project scenarios, it can maintain rated voltage output, stable conversion efficiency and normal temperature rise, without additional frequency conversion modification, fully meeting global dual-frequency power supply demands.
Q2: How to choose the correct capacity and output voltage model for actual use?
For model selection, users need to confirm two core parameters first: total actual load power and on-site grid standards. For small-load scenarios such as single equipment power supply and small workshop auxiliary power, 15KVA or 45KVA models are recommended; for factory main power distribution and multi-equipment centralized power supply, 100KVA and 400KVA high-capacity models are more suitable. In terms of voltage, 380V output matches conventional domestic industrial and civil power supply, 400V is applicable to European and most Asian commercial power grids, and 440V is tailored for American, Southeast Asian industrial equipment and imported engineering machinery. We can also provide non-standard voltage and capacity customization according to on-site working conditions.
Q3: What is the difference between oil-immersed type and dry-type type of this three-phase transformer series in application?
The two structural types have clear application differentiation. The oil-immersed three-phase transformer features low cost, good heat dissipation, strong overload resistance and simple maintenance, which is more suitable for outdoor substations, open-air factory power distribution areas, construction sites and other open working scenarios with low environmental safety requirements. The dry-type three-phase transformer has outstanding flame-retardant, explosion-proof, dust-proof and noise-reduction performance, with higher safety level, and is mainly used for indoor installation, such as building power distribution rooms, indoor workshops, densely populated commercial areas and precision equipment workshops, meeting high environmental protection and safety standards.
