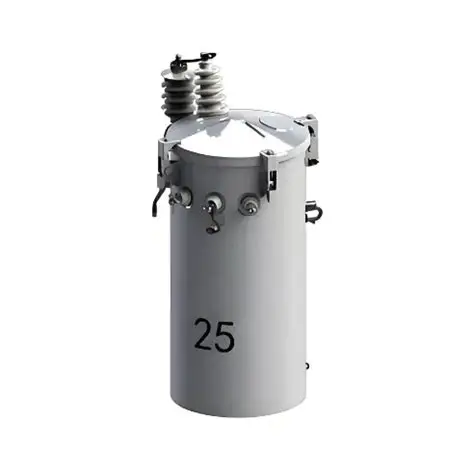

25 Kva Single Phase Pole Mounted Transformer 13.8Kv to 120V 240V

25 Kva Single Phase Pole Mounted Transformer 13.8Kv to 120V 240V

1. Product Description

The 25 kVA Single Phase Pole Mounted Transformer 13.8kV to 120V 240V is a compact, ANSI and IEEE certified single-phase distribution transformer purpose-built for overhead utility power distribution systems. Designed specifically for pole-mounted outdoor installation, this 13.8kV single-phase oil immersed transformer steps down medium 13.8kV overhead line voltage into standard dual 120V/240V split-phase low voltage, fully complying with North American residential and light commercial power supply standards. As one of the most commonly used small-capacity pole mount distribution transformers in rural and suburban grid projects, this 25kVA oil-filled transformer delivers reliable voltage conversion for scattered single-phase loads with low energy consumption and stable daily operating performance.

Manufactured with low-loss grain-oriented silicon steel core and high-purity copper windings, this outdoor pole mounted single-phase transformer effectively reduces no-load excitation loss and suppresses temperature rise under continuous rated load. It adopts a fully sealed cylindrical steel tank structure and standard ONAN oil natural air natural cooling system, using non-PCB insulating oil for internal insulation and heat dissipation. The fully sealed design prevents moisture penetration, dust accumulation and insulating oil aging during long-term outdoor exposure, eliminating common oil leakage and insulation failure issues found in older open-style transformers. Lightweight and structurally optimized for direct pole mounting, this 13.8kV to 120V/240V single-phase transformer simplifies field installation and routine maintenance, making it a cost-effective solution for rural electrification, residential power supply and remote facility distribution projects.

2.  Technical Parameters

3. Core Purpose

The core purpose of the 25 Kva Single Phase Pole Mounted Transformer 13.8Kv to 120V 240V is to deliver safe, low-cost and stable medium-to-low voltage step-down conversion for 13.8kV single-phase overhead power distribution lines. This compact pole mount oil filled transformer bridges the voltage gap between high medium-voltage transmission lines and standard 120V/240V end-user loads, converting fluctuating grid voltage into compliant split-phase power that matches North American residential and light-load electrical codes.

In daily utility grid operation, this 25kVA pole-mounted distribution transformer performs essential functions including terminal voltage stabilization, minor harmonic suppression and circuit isolation. It maintains balanced 120V and 240V dual output under typical residential cyclic loads, effectively reducing voltage drop during peak power consumption periods. Optimized for decentralized single-phase power supply, it solves unstable power quality issues for scattered rural households and small outdoor loads, improves overall grid energy efficiency, and ensures continuous, safe and standard power delivery for low-capacity single-phase power consumption scenarios.

4. Application Scenarios

Thanks to its lightweight pole-mounted design, low energy loss and reliable outdoor performance, the 25kVA 13.8kV 120/240V single-phase pole mounted transformer is widely used in light-load single-phase power distribution scenarios. It is the standard equipment for rural electrification projects, residential power supply and remote outdoor facility power distribution:

• Rural Household Power Supply: Ideal for scattered rural single-family households and remote village residents. The dual 120V/240V split-phase output fully adapts to North American household power usage habits, supporting daily lighting, household appliances and low-power residential equipment operation with stable power quality.

• Suburban Light Residential Distribution: Suitable for low-density suburban residential areas and single villa communities with low single-household power load. Its compact pole-mounted structure saves ground space and perfectly matches conventional residential daily power consumption demands.

• Small Light Commercial Facilities: Perfect for roadside convenience stores, small retail booths, rural service stations and community small service outlets. It provides stable single-phase power for commercial lighting, low-power office equipment and daily commercial loads without unnecessary energy waste.

• Rural Power Grid Renovation & Expansion: Widely applied in 13.8kV rural grid upgrading projects, replacing outdated high-loss old transformers to improve regional power supply stability and reduce long-term grid operating losses.

• Remote Outdoor Public Facilities: Adaptable for rural road lighting systems, field monitoring equipment, small scenic area facilities and remote sensor base stations. Its all-weather outdoor performance supports long-term unattended power supply in remote areas with no regular maintenance conditions.

• Small Distributed Photovoltaic Grid Connection: Matched with tiny residential rooftop photovoltaic systems, completing stable voltage conversion and grid-connected power regulation for decentralized new energy generation to ensure safe and stable grid access.

5. Product Features

The 25 Kva Single Phase Pole Mounted Transformer 13.8Kv to 120V 240V adopts mature lightweight pole-mounted design and upgraded energy-saving manufacturing technology. Tailored for light-load outdoor single-phase distribution, it features compact structure, low loss, easy installation and strong weather resistance, fully adapting to long-term overhead outdoor grid operation:

• Ultra-low No-load & Load Loss: Equipped with high-quality low-loss silicon steel core and pure copper winding, this 25kVA single-phase oil immersed transformer minimizes idle power consumption and operational loss. All energy efficiency indicators meet DOE premium standards, effectively reducing long-term grid operation costs for utility companies.

• Stable 120V/240V Split-phase Output: Precision single-phase winding layout ensures balanced and accurate dual low-voltage output. The adjustable off-circuit tap changer compensates for 13.8kV grid voltage deviation in rural areas, suppressing voltage fluctuation and ensuring consistent terminal power quality for residential loads.

• Compact Pole-mounted Integrated Structure: Lightweight cylindrical integral design is specially optimized for single-rod overhead installation. It occupies no ground area, features simple on-site assembly and strong structural stability, not easy to shake or deform under outdoor wind conditions.

• Fully Sealed Anti-aging Design: Welded fully sealed steel tank completely isolates internal core, windings and insulating oil from external humid air, dust and corrosive substances. It prevents oil deterioration, moisture ingress and insulation aging, eliminating traditional transformer oil leakage faults.

• Excellent All-weather Outdoor Adaptability: The whole machine adopts weather-resistant anti-corrosion electrostatic spraying coating, resisting ultraviolet aging, rain erosion, frost damage and wind-sand impact. It operates stably in high temperature, low temperature and high humidity environments, supporting year-round unattended outdoor operation.

• Low Maintenance & High Safety: Standard 13.8kV medium-voltage insulation design provides reliable lightning protection and over-voltage resistance. The simple internal structure reduces daily failure rate, and the fully sealed design requires minimal routine maintenance, greatly lowering long-term operation and maintenance workload.

6. FAQ (Frequently Asked Questions)

Q1: What scenarios are most suitable for a 25kVA 13.8kV 120/240V pole mounted transformer?

This 25kVA single-phase pole mounted transformer is specially designed for light single-phase load scenarios in 13.8kV power grids. It is the best choice for scattered rural households, low-density suburban residences and small roadside commercial facilities. Unlike larger 37.5kVA or 50kVA models that cause idle energy waste in light-load environments, this 25kVA unit features lower no-load loss and higher cost performance for daily low-power stable operation. It is also widely used for rural grid renovation and remote outdoor small equipment power supply, perfectly matching decentralized light-load power distribution demands.

Q2: Can this pole-mounted single-phase transformer withstand harsh outdoor weather conditions?

Absolutely. This ANSI-standard 25kVA oil immersed pole mounted transformer is fully optimized for overhead outdoor unattended operation. The fully sealed tank structure completely blocks external moisture and dust, avoiding internal insulation damp and insulating oil aging. The high-strength weatherproof shell resists extreme weather including high-temperature aging, low-temperature freezing, heavy rain erosion and strong wind impact. The reliable ONAN self-cooling system ensures stable heat dissipation under rated load, enabling 24-hour continuous all-weather operation and meeting long-term outdoor utility power distribution requirements.

Q3: What daily maintenance does a 25kVA pole mounted single-phase transformer need?

This small-capacity pole-mounted oil immersed transformer has extremely low daily maintenance requirements. Routine work only includes regular visual inspection of the tank sealing surface and welding seams to check for oil leakage, and confirmation of normal insulating oil level and clarity. Operators need to clean dust on the outer shell and radiator properly to ensure unobstructed heat dissipation. Periodic insulation resistance testing and terminal fastening inspection are recommended. Avoid long-term overload operation in daily use. With simple standardized maintenance, the transformer can maintain stable performance for more than 20 years of service life.
