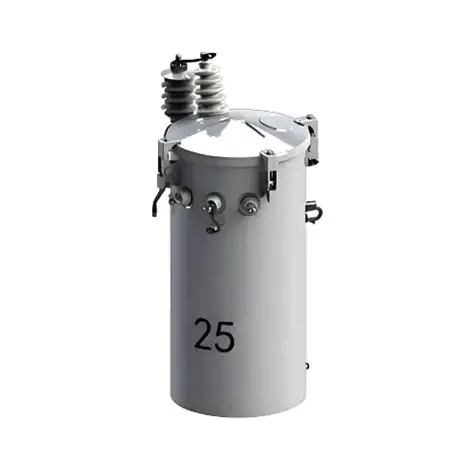

25 Kva Single Phase Pole Mounted Transformer 34.5Kv to 120V 240V

25 Kva Single Phase Pole Mounted Transformer 34.5Kv to 120V 240V

1. Product Description

The 25 Kva Single Phase Pole Mounted Transformer 34.5Kv to 120V 240V is a compact, utility-grade oil immersed distribution transformer engineered specifically for North American 34.5kV medium-voltage overhead power grid systems. As a standard single-phase step-down pole transformer widely used in rural electrification and suburban power distribution projects, this 34.5kV single-phase pole mounted oil transformer reliably converts high 34.5kV line voltage into dual 120V/240V split-phase low voltage, fully matching standard residential and light commercial single-phase power requirements. Built to comply with ANSI, IEEE C57.12 and NEMA industry standards, this low-capacity 25kVA pole mount transformer undergoes rigorous factory testing for insulation integrity, voltage stability and load tolerance to ensure consistent performance in outdoor grid environments.

Featuring high-purity oxygen-free copper windings and low-loss grain-oriented silicon steel core, this outdoor single-phase oil filled transformer effectively cuts down no-load excitation loss and suppresses temperature rise during long-term light and medium cyclic loads. It adopts a fully sealed welded steel tank paired with proven ONAN oil natural air natural cooling technology, using non-PCB mineral insulating oil or optional FR3 eco-friendly oil for internal insulation and heat dissipation. The fully enclosed structure completely shields internal core and winding components from outdoor dust, rain moisture and air oxidation, eliminating common oil leakage and insulation aging issues found in traditional open-frame transformers. Designed for direct overhead pole installation, this lightweight 34.5kV to 120V/240V distribution transformer requires minimal ground space, simplifies field deployment and reduces long-term operational costs for utility power networks.

2.  Technical Parameters

3. Core Purpose

The core purpose of the 25 Kva Single Phase Pole Mounted Transformer 34.5Kv to 120V 240V is to deliver reliable, low-loss medium-to-low voltage conversion for 34.5kV single-phase overhead utility grids. This compact pole-mounted oil immersed transformer solves the voltage mismatch between high 34.5kV transmission lines and standard 120V/240V end-user loads, converting fluctuating medium grid voltage into stable, code-compliant split-phase power for residential and light-load commercial applications.

In daily grid operation, this low-capacity single-phase distribution transformer performs critical terminal grid functions including voltage stabilization, minor harmonic suppression and electrical circuit isolation. It maintains balanced 120V and 240V dual output even during residential peak load periods, effectively reducing line voltage drop and preventing low-power equipment malfunction caused by unstable power quality. Optimized for decentralized light-load power supply scenarios, it improves the overall operational efficiency of rural and suburban 34.5kV power grids, cuts idle energy consumption, and provides long-term safe and stable power guarantee for scattered single-phase power users.

4. Application Scenarios

Thanks to its lightweight pole-mounted structure, ultra-low no-load loss, high 34.5kV insulation performance and excellent outdoor weather resistance, the 25kVA 34.5kV 120/240V single phase pole transformer is widely adopted in light-load single-phase power distribution scenarios. It serves as the core power transformation equipment for rural electrification, remote facility power supply and old grid upgrading projects:

• Scattered Rural Residential Power Supply: Perfect for remote single-family homes and sparsely populated rural communities. The dual 120V/240V split-phase output fully adapts to North American household power standards, supporting daily lighting, small household appliances and conventional residential electrical loads with steady power quality.

• Suburban Low-density Community Distribution: Ideal for low-traffic suburban residential zones and standalone villa areas with low single-household power demand. Its overhead pole-mounted design saves valuable ground space and matches daily light-load power consumption characteristics perfectly.

• Small Light Commercial Outdoor Facilities: Suitable for roadside convenience stores, rural service stations, small street retail outlets and community public service facilities. It provides stable single-phase power for commercial lighting, low-power office devices and daily commercial loads without unnecessary energy waste.

• 34.5kV Rural Power Grid Renovation: Widely used in old medium-voltage rural grid upgrading and loss reduction projects, replacing outdated high-loss transformers to enhance regional power supply stability and lower overall grid operating costs.

• Remote Outdoor Monitoring & Public Equipment: Adaptable for field environmental monitoring stations, rural road lighting systems, traffic sensor equipment and remote scenic area supporting facilities, supporting 24-hour unattended stable power supply in off-grid remote areas.

• Mini Distributed Photovoltaic Auxiliary Power: Matched with small-scale residential rooftop photovoltaic systems, completing stable voltage conversion and grid-connected power regulation to ensure safe and qualified grid access for decentralized new energy equipment.

5. Product Features

The 25 Kva Single Phase Pole Mounted Transformer 34.5Kv to 120V 240V adopts field-proven utility-grade design and upgraded energy-saving manufacturing technology. Tailored for 34.5kV medium-voltage light-load outdoor distribution, it outperforms traditional low-efficiency transformers in energy saving, stability and durability, fully adapting to long-term unattended overhead grid operation:

• Ultra-low Energy Loss & High Efficiency: Equipped with high-permeability low-loss silicon steel core and full copper winding, this 25kVA single-phase oil immersed transformer minimizes no-load idle loss and light-load operating loss. All energy efficiency parameters meet DOE premium standards, effectively reducing long-term grid energy consumption and operational expenses for utility companies.

• Balanced 120V/240V Split-phase Output: Precision single-phase winding layout ensures accurate and symmetrical dual low-voltage output. The built-in off-circuit tap changer flexibly compensates voltage deviation of rural 34.5kV overhead grids, suppressing voltage fluctuation and minor harmonics to deliver consistent terminal power quality.

• High 34.5kV Insulation & Lightning Resistance: Enhanced medium-voltage insulation structure and 150kV BIL lightning impulse resistance provide excellent over-voltage protection, lightning strike resistance and short-circuit impact resistance. It effectively avoids equipment damage caused by grid surges and extreme weather, improving overall power supply safety.

• Fully Sealed Anti-leakage & Anti-aging Structure: Integral welded fully sealed steel tank completely isolates internal components from external moisture, dust and corrosive air. It prevents insulating oil aging, moisture ingress and insulation degradation, eliminating common oil leakage faults and extending equipment service life significantly.

• Lightweight Pole-mounted Integrated Design: Optimized compact and lightweight structure is specially designed for single-pole overhead installation, requiring no foundation occupation. It features fast on-site assembly, strong structural stability and wind resistance, adapting to complex rural outdoor terrain conditions.

• All-weather Outdoor Adaptability & Low Maintenance: High-strength weather-resistant anti-corrosion coating resists ultraviolet aging, rain erosion, frost damage and wind-sand impact. It operates stably in extreme high and low temperatures all year round. The fully sealed maintenance-friendly design greatly reduces daily inspection and maintenance workload, ideal for long-term unattended remote operation.

6. FAQ (Frequently Asked Questions)

Q1: Why choose a 25kVA 34.5kV pole mounted transformer for rural light-load power distribution?

This 25 Kva Single Phase Pole Mounted Transformer 34.5Kv to 120V 240V is purpose-built for light and scattered single-phase loads in 34.5kV medium-voltage rural grids. Compared with larger 37.5kVA or 50kVA transformers, it features much lower no-load loss, avoiding long-term idle energy waste in low-power operation scenarios. Different from small-capacity transformers with insufficient overload tolerance, this model handles short-term residential peak loads such as air conditioning and heating startup stably. Its professional 120V/240V dual split output matches North American residential power standards perfectly, making it the most cost-effective and reliable choice for rural electrification and suburban light-load grid projects.

Q2: Can this 34.5kV high-voltage single-phase pole transformer work stably in harsh outdoor environments?

Yes, this ANSI-certified oil immersed pole mounted transformer is fully optimized for harsh outdoor unattended utility operation. The reinforced 34.5kV high-insulation structure ensures stable electrical performance under high medium-voltage grid pressure. The fully sealed tank structure completely blocks external moisture and dust, preventing internal insulation damp and insulating oil deterioration. The weatherproof anti-corrosion shell resists extreme weather including high-temperature aging, low-temperature freezing, heavy rain erosion and strong wind impact. The mature ONAN self-cooling system maintains stable heat dissipation under rated load, supporting 24-hour continuous all-weather operation in remote rural and suburban outdoor environments.

Q3: What routine maintenance is required for a 25kVA 34.5kV to 120V/240V pole mounted transformer?
