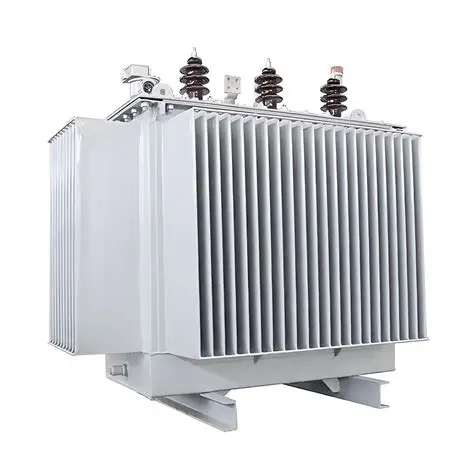

3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva Oil Immersed Transformer

3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva  Oil Immersed Transformer

1. Product Description

3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva Oil Immersed Transformer is a full-series medium-small capacity three-phase oil immersed distribution transformer designed specifically for international industrial power distribution and cross-standard voltage conversion scenarios. Covering three mainstream industrial capacities of 125kVA, 160kVA and 200kVA, this 10kV class oil filled transformer focuses on converting standard 10kV medium-voltage grid power into stable 440V three-phase low-voltage industrial electricity, perfectly matching overseas industrial equipment voltage standards and special domestic industrial power consumption demands. Manufactured based on upgraded S13 and S22 ultra-low-loss technical standards and fully compliant with IEC 60076 and GB/T 1094 global power industry specifications, this three-phase oil immersed distribution transformer effectively solves the voltage mismatch problem between conventional 10kV power grids and 440V industrial electrical equipment.

Different from conventional 10kV to 400V general-purpose transformers, this 10kV 440V dedicated oil immersed transformer adopts customized turn ratio design to ensure accurate 440V output, avoiding voltage deviation that causes abnormal operation of imported industrial machinery, marine equipment and overseas standard electrical devices. The whole machine adopts high-purity oxygen-free copper windings and low-loss grain-oriented silicon steel core materials, which greatly reduces no-load excitation loss and full-load operating heat during long-term grid operation. With a standard Dyn11 three-phase connection group, the equipment maintains excellent three-phase current balance and harmonic suppression capability, effectively improving terminal power quality. Equipped with a fully sealed corrugated oil tank and mature ONAN oil natural air natural cooling system, this 3-phase 10kV 440V transformer isolates internal insulation components from external dust, moisture and corrosive air, preventing insulating oil aging and oil leakage faults. Featuring multiple capacity options and strong environmental adaptability, it is widely recognized as reliable power transformation equipment for industrial parks, overseas engineering projects and special power distribution systems.

2. Main Technical Parameters

The following table lists complete standardized technical parameters of 3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva Oil Immersed Transformer. All electrical performance indicators, structural specifications, insulation standards and operating parameters meet international energy efficiency standards and grid access requirements, supporting precise model selection, professional on-site installation and daily operational maintenance:

3. Core Purpose

The core purpose of 3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva Oil Immersed Transformer is to provide professional standard voltage conversion for special industrial power distribution systems that require 440V three-phase power supply. Most domestic medium-voltage power grids adopt 10kV input matched with 400V output standard transformers, which cannot meet the operating voltage requirements of imported industrial equipment, overseas standard machinery and special electrical devices. This dedicated 10kV to 440V three-phase oil immersed transformer accurately converts 10kV medium-voltage grid power into standardized 440V industrial voltage, solving the core problem of voltage standard mismatch in cross-standard power distribution scenarios.

In actual industrial power operation, this multi-capacity oil immersed distribution transformer undertakes key functions including voltage standardization, power load balancing, grid harmonic suppression and circuit safety isolation. The 125kVA model adapts to light and medium-load industrial power demands, the 160kVA model serves as the most widely used universal capacity for conventional industrial projects, and the 200kVA high-capacity version meets continuous medium-load power consumption requirements. While ensuring accurate 440V stable output, the equipment effectively reduces power transmission loss, improves terminal power supply stability, avoids equipment failure caused by voltage deviation, and provides safe, compliant and stable power guarantee for industrial production, overseas engineering construction and special power distribution equipment operation.

4. Application Scenarios

With dedicated 10kV to 440V voltage conversion performance, multi-capacity flexible matching, low-loss operation and excellent outdoor environmental adaptability, 3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva Oil Immersed Transformer covers most special industrial power distribution and overseas engineering power supply scenarios. It is the preferred professional power transformation equipment for non-standard voltage industrial power consumption systems:

• Imported Industrial Equipment Supporting Power Supply: Widely used for factories equipped with European and American imported production lines, mechanical processing equipment and automated production systems. It converts 10kV grid power into standard 440V industrial voltage to match the operating parameters of imported equipment, ensuring stable operation of precision industrial machinery.

• Overseas Engineering & Foreign-funded Factory Power Distribution: Ideal for overseas infrastructure construction projects, foreign-funded industrial parks and cross-border engineering temporary power systems. The 440V output standard fully conforms to international industrial power supply norms, realizing seamless docking with overseas electrical equipment.

• Marine & Port Industrial Power System: Suitable for port terminal equipment, marine supporting electrical facilities and offshore engineering auxiliary power distribution. The stable 440V three-phase output meets the special voltage requirements of marine industrial equipment, with oil immersed structure adapting to humid and corrosive port environments.

• Special Industrial Park Power Renovation: Applied in old industrial park upgrading and power system transformation where equipment uniformly adopts 440V voltage standard. It replaces traditional 400V output transformers to solve long-term voltage mismatch and unstable equipment operation problems.

• Mining & Field Industrial Power Supply: Matched with mining mechanical equipment and field engineering electrical systems that support 440V voltage. The outdoor anti-corrosion and dust-proof performance of oil immersed transformers adapts to harsh field operation environments, ensuring long-term stable power supply.

• Medium and Small Industrial Centralized Power Distribution: Used for centralized power transformation and distribution of small and medium-sized processing factories, assembly workshops and light industrial parks. Multi-capacity models flexibly match different load scales to meet customized industrial power consumption demands.

5. Product Features

3 Phase 10kv 440v Transformer Electricity 125kva 160kva 200kva Oil Immersed Transformer adopts upgraded S22 ultra-low-loss manufacturing technology and customized 440V dedicated voltage conversion structure. Compared with conventional 10kV/400V general-purpose transformers and dry-type power transformers, this series has unique advantages in voltage accuracy, industrial adaptability and operational stability, fully meeting long-term continuous operation requirements of special industrial power distribution scenarios:

• Customized 10kV to 440V Precise Voltage Conversion: Different from universal 400V output transformers, this series adopts professionally optimized winding turn ratio design to achieve accurate 440V low-voltage output. The voltage deviation is strictly controlled within ±1.5%, completely matching the voltage standard of international industrial equipment and avoiding equipment shutdown or damage caused by voltage mismatch.

• Three-capacity Flexible Load Matching: Covering 125kVA, 160kVA and 200kVA three mainstream medium and small capacities, it can accurately cover light-load, conventional-load and medium-load industrial power demands. Users can select corresponding models according to actual equipment total power and peak load, avoiding capacity waste or insufficient load margin with high project matching degree.

• Ultra-low Loss & Energy-saving Operation: Adopting high-permeability low-loss silicon steel core and high-conductivity pure copper windings, the transformer minimizes no-load magnetic loss and full-load operating loss. All energy efficiency indicators reach national first-class energy efficiency standards, effectively reducing long-term industrial power consumption and grid operation costs.

• Dyn11 Balanced Power Output & High Power Quality: Standard Dyn11 three-phase winding structure ensures balanced three-phase voltage and current operation, effectively filtering grid harmonics, suppressing zero-sequence current and solving three-phase load imbalance problems. It maintains stable power output under complex industrial load conditions and improves equipment operating stability.

• Fully Sealed Maintenance-free Oil Immersed Structure: Integral fully welded corrugated oil tank forms a closed anti-leakage structure, which isolates internal insulating oil and core windings from external moisture, dust and corrosive gases. It prevents insulating oil aging and insulation damp, eliminates common oil leakage faults, and realizes long-term maintenance-free outdoor operation.

• Strong All-weather Environmental Adaptability: Adopting heavy-duty anti-corrosion electrostatic spraying and 10kV high-grade insulation design, the equipment resists high temperature, low temperature, rain erosion and wind sand aging. The mature ONAN natural cooling system ensures efficient and stable heat dissipation, supporting 24-hour uninterrupted operation in industrial parks, field sites and coastal humid environments.

6. FAQ (Frequently Asked Questions)

Q1: What is the difference between 10kV 440V transformers and conventional 10kV 400V transformers?

The core difference lies in low-voltage output standard and application scenarios. Conventional 10kV 400V oil immersed transformers are suitable for domestic civilian and ordinary industrial equipment with 400V voltage standard, while this 10kV 440V dedicated transformer adopts customized winding ratio to stably output 440V voltage, which is specially tailored for imported equipment and international standard electrical devices. Using a 400V transformer for 440V equipment will cause long-term under-voltage operation, resulting in reduced equipment efficiency, frequent failure and even burnout. This 440V dedicated model can perfectly match international industrial power standards and ensure normal and efficient operation of special equipment.

Q2: How to choose capacity from 125kVA, 160kVA and 200kVA for industrial projects?

Capacity selection needs to be based on actual continuous operating load and future expansion plan. The 125kVA model is suitable for small workshops and light-load industrial scenarios with low total power consumption, featuring lower no-load loss and better energy-saving effect under light-load operation. The 160kVA capacity is the most cost-effective universal model, which can meet the power demand of most conventional medium-small industrial projects and is the most widely used specification in industrial transformation projects. The 200kVA high-capacity version is recommended for production lines with frequent peak load surges and projects with later capacity expansion demands, reserving sufficient overload margin to avoid equipment overload tripping and later replacement.

Q3: Is the oil immersed structure suitable for long-term outdoor industrial operation?

Absolutely suitable. This series of 10kV 440V three-phase oil immersed transformers is optimized for long-term unattended outdoor industrial scenarios. The fully sealed corrugated oil tank structure effectively prevents moisture and dust from entering the interior, avoiding insulation aging and oil deterioration caused by long-term outdoor exposure. The ONAN natural oil circulation cooling system provides more stable heat dissipation than dry-type transformers, supporting long-term full-load continuous operation without overheating. In addition, the overall anti-corrosion and weather-resistant structure can adapt to high temperature, low temperature, humid and dusty industrial environments, with low failure rate and service life up to 25 years under standardized operation and maintenance.
