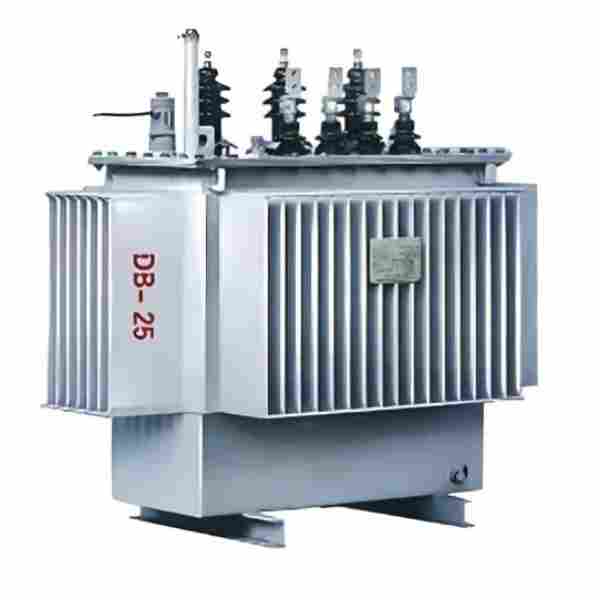

300 Kva Step Down Transformer 11kv to 415v Electricity to 400v 150kva Three Phase 1mva
1. Product Overview
This three phase oil immersed current power transformer is a practical industrial-grade step down power conversion device widely deployed in 11kV medium-voltage distribution networks. Engineered and tested per IEC 60076 and BS 171 industry standards, this versatile transformer lineup covers mainstream project-specific capacities including 150kVA, 300kVA and 1MVA, supporting dual standard low-voltage output of 400V and 415V to adapt to global industrial and municipal power grid specifications. As a core 11kV step down transformer, it reliably converts 11kV high-tension overhead and cable power into usable three-phase low-voltage electricity for on-site power distribution and equipment operation.
In field engineering applications, most 11kV rural grids, industrial zone branch lines and municipal distribution substations require flexible voltage matching for different terminal loads. This oil immersed step down transformer solves common on-site pain points such as mismatched voltage grades, insufficient load capacity and unstable current output. The unified three-phase oil-immersed structure ensures consistent operational stability across 150kVA light-medium load, 300kVA conventional industrial load and 1MVA heavy centralized load scenarios. With ONAN natural oil cooling design and optimized current regulation performance, it serves as a cost-effective, durable and low-maintenance power transformation solution for long-term grid operation and industrial power supply projects.
2. Core Product Features
2.1 Multi-Capacity Grading for Diversified On-Site Load Matching
This three phase oil immersed transformer series features tiered capacity design to cover full-range medium and heavy power load demands, avoiding overcapacity waste or insufficient power supply in engineering selection. The 150kVA 11kV step down transformer is compact and lightweight, perfectly matching light-load scenarios such as small workshop production, rural community centralized power supply and auxiliary equipment power consumption. The widely used 300kVA oil immersed power transformer balances load capacity and operational loss, adapting to most standard industrial parks, township substations and commercial zone distribution needs. The heavy-duty 1MVA three phase current transformer supports long-term full-load operation, designed for large industrial bases, centralized manufacturing zones and regional grid capacity expansion projects. All capacity models maintain unified 11kV high-voltage input and dual 400V/415V output compatibility.
2.2 Dual 400V/415V Output for Global Grid Adaptability
Different from single-output conventional transformers, this 11kV step down transformer supports switchable 400V and 415V three-phase low-voltage output, covering mainstream power standards worldwide. The 400V output fits European, Chinese and most Asian municipal power grid specifications, while the 415V output complies with African, Southeast Asian and Australian industrial power supply standards. Field engineers can adjust internal tap connections according to local grid requirements without replacing equipment, greatly improving project universality. The voltage regulation accuracy is controlled within ±2.5%, effectively compensating long-distance line voltage drop and eliminating terminal voltage deviation caused by load fluctuation.
2.3 Low-Loss Oil Immersed Cooling & Stable Current Output
Adopting high-quality grain-oriented silicon steel core and oxygen-free copper windings, this oil immersed current power transformer minimizes no-load loss, load loss and magnetic leakage during continuous operation. The optimized three-phase symmetrical winding structure ensures balanced three-phase current and voltage output, suppressing third-harmonic interference and avoiding current unbalance that easily burns out terminal electrical equipment. Equipped with a fully sealed corrugated oil tank and ONAN natural air cooling system, insulating oil circulates stably to dissipate internal heat, maintaining stable temperature rise even under intermittent overload operation. This structural design effectively reduces long-term operating energy consumption and extends equipment service life up to 30 years with routine maintenance.
2.4 Strong Short-Circuit Resistance & Field Environmental Adaptability
All core components adopt anti-loosening fixed structure and high-strength insulation materials, improving the transformer’s short-circuit withstand capability and mechanical stability, which is critical for harsh industrial power grid environments with frequent load surges. The fully sealed tank structure isolates internal windings and iron core from external moisture, dust and corrosive gases, preventing insulating oil aging and insulation degradation. The outdoor tropicalized anti-corrosion coating adapts to ambient temperatures from -25℃ to +40℃, suitable for open-air substation floor mounting and outdoor industrial area installation. Compared with dry-type transformers, this oil immersed model delivers stronger overload tolerance and lower per-kVA operating cost in long-term field operation.
2.5 Standard Dyn11 Connection & Complete Safety Protection
Following industrial conventional configuration, this three-phase transformer adopts Dyn11 vector group connection, which effectively stabilizes neutral point voltage and improves unbalanced load adaptability, fully meeting industrial and municipal distribution grid operation requirements. Built-in over-current protection, over-temperature protection and pressure relief devices can quickly respond to grid short circuit, overload and overheating faults, cutting off power supply in time to protect upstream and downstream grid equipment. The standardized insulation level meets 11kV medium-voltage grid safety standards, ensuring reliable and unattended long-term operation in field power distribution systems.
3. Core Uses
As a professional 11kV to 400V/415V step down electricity transformer, its core function is medium-voltage power conversion and terminal current stabilization in three-phase AC power distribution systems. It steps down 11kV high-voltage power transmitted by overhead lines and power cables into standard 400V or 415V low-voltage industrial and civilian electricity, solving voltage grade mismatch between medium-voltage grids and terminal power consumption equipment.
In actual power system operation, this oil immersed current power transformer undertakes hierarchical load power distribution tasks. The 150kVA model stabilizes current output for light-load decentralized power consumption, the 300kVA model serves as the main power transformation equipment for conventional industrial and municipal distribution, and the 1MVA high-capacity model bears heavy-load centralized power supply and peak load regulation. It also optimizes on-site power quality, suppresses grid harmonic fluctuation, reduces power transmission loss, and supports new energy grid-connected voltage matching, old grid renovation and industrial power guarantee, effectively improving the overall operational reliability of regional power grids.
4. Main Application Scenarios
4.1 Industrial Park & Manufacturing Base Power Distribution
This series of 11kV step down oil immersed transformers is widely used in light and heavy industrial production bases, mechanical processing factories and industrial park centralized power supply systems. The 150kVA and 300kVA specifications are suitable for small and medium-sized factory production lines, motor equipment and workshop auxiliary power consumption. The 1MVA large-capacity transformer is applied to large-scale manufacturing parks with intensive power loads, providing stable three-phase current and voltage support for long-term continuous industrial production, avoiding equipment shutdown and loss caused by power supply instability.
4.2 Urban & Rural 11kV Power Grid Renovation Project
It is the core supporting equipment for municipal power grid upgrading, rural electrification reconstruction and township substation construction. Most rural and suburban medium-voltage grids adopt 11kV transmission standards, requiring step-down conversion to 400V or 415V low voltage for civilian and small industrial use. This multi-capacity transformer series can flexibly match different regional load scales, solve the problems of old grid voltage drop, insufficient capacity and unstable current output, and improve the power supply quality of urban and rural residential and commercial electricity.
4.3 Overseas Municipal & Industrial Power Engineering
Benefiting from dual 400V/415V voltage output and 11kV universal high-voltage input, this three phase oil immersed transformer is widely used in overseas power construction projects in Africa, Southeast Asia and the Middle East. The 415V low-voltage output fully adapts to local industrial power standards, while multi-capacity specifications meet the graded construction demands of municipal power grids, industrial zones and residential communities, becoming a mainstream general-purpose power transformation device for overseas medium-voltage distribution projects.
4.4 Large Infrastructure & Temporary Engineering Power Supply
For large construction projects, road and bridge engineering, mining field operation and municipal infrastructure construction, this oil immersed step down transformer provides reliable temporary and long-term power guarantee. The 150kVA and 300kVA models adapt to conventional engineering equipment power consumption, while the 1MVA model meets the heavy-load power demand of large engineering mechanical equipment. Its outdoor weather resistance and stable current output performance ensure safe and continuous power supply in complex field engineering environments.
4.5 Distributed New Energy Supporting Grid Connection
Matched with medium-sized photovoltaic power stations, wind power generation systems and rural energy storage projects, this 11kV oil immersed transformer completes new energy power voltage conversion and grid-connected regulation. It stabilizes fluctuating current generated by new energy equipment, converts unstable power into standard 400V/415V usable electricity, reduces grid-connected loss, and improves the utilization rate and grid-connected stability of distributed new energy projects.
5. Frequently Asked Questions (FAQ)
5.1 What is the practical difference between 400V and 415V low-voltage output in field application?
From an engineering perspective, the core difference lies in adaptation to regional grid standards and terminal equipment parameters, with no difference in transformer operational principle and structural performance. The 400V three-phase output is the standard low-voltage specification for most domestic and European municipal and industrial grids, matching conventional 380V-level electrical equipment. The 415V output is specially designed for overseas projects such as Africa and Southeast Asia, complying with local industrial power supply standards. On-site engineers can switch the output mode through internal tap adjustment according to local grid voltage requirements, which greatly improves the equipment’s cross-region applicability without modifying the transformer main body.
5.2 How to select capacity correctly among 150kVA, 300kVA and 1MVA for 11kV distribution projects?
Capacity selection must be based on actual calculated load, peak power consumption and future capacity expansion demands, with a reserved 10%-20% load margin to avoid long-term full-load operation. The150kVA 11kV oil immersed transformer is suitable for light-load scenarios such as small rural villages, individual workshop production and decentralized auxiliary equipment power supply. The 300kVA step down transformer is the most cost-effective universal model, applicable to most township substations, medium-sized workshops and commercial zone conventional loads. The 1MVA three phase power transformer is only used for heavy-load scenarios such as large industrial parks, centralized manufacturing bases and regional grid capacity expansion, effectively avoiding overload heating and current instability caused by insufficient capacity.
5.3 Why choose oil immersed type instead of dry type for 11kV medium-voltage distribution scenarios?
In actual 11kV outdoor and industrial distribution projects, oil immersed transformers have obvious practical advantages over dry-type products. First, the oil circulation cooling system provides more stable heat dissipation effect, with stronger overload resistance and higher continuous operation stability, suitable for long-term heavy-load and peak fluctuation working conditions. Second, the fully sealed oil tank structure has better moisture-proof, dust-proof and anti-corrosion performance, adapting to harsh outdoor and industrial field environments. Third, the manufacturing and later maintenance cost per kVA is lower, and the service life is longer, which is more in line with the long-term operation needs of power grids and industrial projects. Dry-type transformers are only suitable for indoor confined spaces, while oil immersed models are more applicable for conventional outdoor 11kV distribution engineering.
