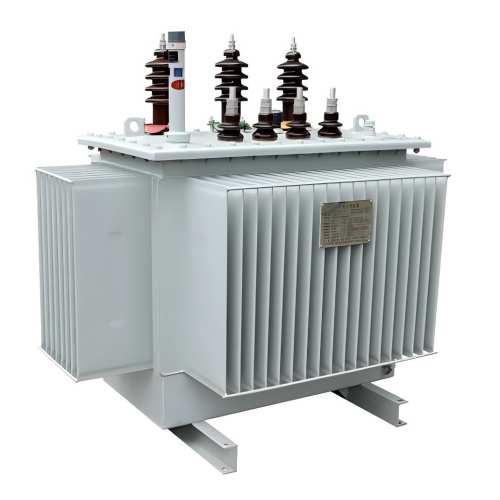

30kv 33kv Voltage Copper Winding Dyn11 Oil Immersed Transformer

30kv 33kv Voltage Copper Winding Dyn11 Oil Immersed Transformer

1. Product Description

The 30kV 33kV Voltage Copper Winding Dyn11 Oil Immersed Transformer is a high-efficiency three-phase medium-voltage power distribution transformer widely adopted in industrial and utility power grid systems. Designed with pure copper winding and standard Dyn11 vector group configuration, this 33kV class oil immersed step-down transformer delivers stable voltage conversion for 30kV and 33kV medium-voltage power networks, effectively converting high grid voltage into low-voltage 0.4kV power suitable for industrial production, commercial power distribution and civil power supply. Manufactured in strict accordance with IEC60076 and national GB/T6451 power transformer standards, this copper winding oil filled power equipment features low loss, low noise and strong overload resistance, fully adapting to long-term continuous operation of medium and high voltage power distribution systems.

Different from traditional aluminum winding transformers, this heavy-duty Dyn11 connection oil immersed transformer adopts full oxygen-free copper winding structure, which greatly improves electrical conductivity, heat dissipation performance and short-circuit impact resistance. Equipped with high-quality low-loss silicon steel core and professional ONAN/ONAF oil cooling system, the equipment effectively suppresses no-load loss and operating temperature rise during daily grid operation. The fully sealed corrugated oil tank structure isolates internal components from external moisture and dust, avoiding insulating oil aging and insulation degradation. As a mainstream 30kV/33kV medium-voltage distribution transformer, it solves common problems of unstable three-phase current, high harmonic content and poor load balance in conventional power transformation equipment, ensuring safe and efficient power grid operation.

2. Technical Parameters

3. Core Purpose

The core purpose of the 30kV 33kV Copper Winding Dyn11 Oil Immersed Transformer is to provide high-precision, low-loss medium-voltage step-down conversion for 30kV and 33kV industrial and municipal power grids. This three-phase oil filled power transformer solves the voltage level mismatch between medium-voltage transmission lines and low-voltage terminal power consumption equipment, converting high industrial grid voltage into standard 400V industrial and civilian power supply voltage to meet centralized power consumption demands of industrial parks, mining bases and urban substations.

Relying on the professional Dyn11 vector group design, this copper winding oil immersed distribution transformer effectively optimizes three-phase load balance, suppresses power grid harmonic interference and reduces zero-sequence current. It can stably adjust voltage output under unbalanced three-phase load conditions, avoid voltage deviation and equipment burnout caused by load imbalance, and improve overall power supply quality. As the core power transformation equipment for medium-voltage grid terminals, it undertakes grid voltage stabilization, power distribution shunting and circuit safety isolation functions, ensuring continuous, stable and safe power supply for various high-load industrial and municipal power consumption scenarios.

4. Application Scenarios

With pure copper winding performance advantages, Dyn11 balanced output characteristics and excellent outdoor operational stability, the 30kV/33kV oil immersed transformer is widely used in medium-voltage power distribution scenarios requiring high power quality and long-term stable operation. It covers industrial production, municipal power supply, new energy grid connection and engineering supporting fields:

• Industrial Park Centralized Power Supply: Suitable for large industrial parks, manufacturing bases and chemical industrial zones. It provides stable low-voltage power for assembly line equipment, mechanical processing machinery and industrial auxiliary facilities, adapting to long-term high-load continuous operation of industrial production.

• Mining & Field Engineering Power Distribution: Widely applied in coal mines, metal mining bases and field construction projects. The equipment has strong anti-overload and anti-interference ability, which can adapt to complex power consumption environments of mining areas and ensure safe power supply for mining mechanical equipment.

• Urban & Rural Medium-voltage Substation: Used for terminal power distribution of urban 33kV power grids and rural power grid upgrading projects. It replaces traditional high-loss aluminum winding transformers to improve regional power supply stability and reduce grid operation energy consumption.

• New Energy Power Station Grid Connection: Matched with large-scale photovoltaic power stations, wind power bases and energy storage power stations. It completes stable voltage conversion and power regulation for new energy power generation, optimizes grid-connected power quality and avoids harmonic impact on public power grids.

• Transportation & Infrastructure Supporting: Applicable for highway service areas, railway transit supporting facilities, water conservancy projects and municipal engineering supporting power supply, providing 24-hour stable power guarantee for key infrastructure.

• Commercial & Civilian Power Distribution: Suitable for large commercial districts, residential cluster communities and comprehensive service zones, undertaking large-scale civilian and commercial low-voltage power distribution tasks to meet diversified power consumption demands.

5. Product Features

This 30kV 33kV Dyn11 copper winding oil immersed transformer adopts upgraded industrial design and mature manufacturing technology. Compared with traditional aluminum winding and Yyn0 connection transformers, it has obvious comprehensive advantages in energy saving, stability, safety and service life, fully meeting the harsh operation requirements of modern medium-voltage power grids:

• Pure Copper Winding & Low Loss Performance: Adopts 100% oxygen-free copper winding with higher electrical conductivity and lower internal resistance than aluminum windings. It effectively reduces load operation loss and temperature rise, with all energy efficiency indicators reaching national first-class standard. Long-term operation can greatly reduce power grid energy consumption and enterprise electricity cost.

• Dyn11 Vector Group Balanced Output: Professional Dyn11 connection mode realizes accurate three-phase current and voltage balance, effectively solving the problem of unbalanced three-phase load in industrial power consumption. It suppresses grid harmonics and zero-sequence current, improves power supply quality, and avoids equipment aging and damage caused by long-term unbalanced voltage.

• High-strength Fully Sealed Structure: Integral welded corrugated oil tank structure with excellent sealing performance, which completely isolates internal core, windings and insulating oil from external humid air, dust and corrosive gas. It prevents oil aging, moisture ingress and insulation failure, eliminates common oil leakage faults, and extends equipment service life.

• Dual Cooling & Strong Overload Resistance: Supports ONAN natural cooling and ONAF forced air cooling dual modes, with efficient and balanced heat dissipation. The optimized internal insulation and winding reinforcement structure greatly improves short-circuit impact resistance and peak overload tolerance, adapting to frequent load fluctuation in industrial power grids.

• All-weather Environmental Adaptability: The whole machine adopts heavy-duty anti-corrosion electrostatic spraying process, resisting ultraviolet aging, rain erosion, frost and snow damage. It can operate stably in high temperature, low temperature and high humidity harsh environments, suitable for long-term outdoor unattended operation.

• High Safety & Low Maintenance: Strict medium-voltage insulation design provides excellent over-voltage protection and lightning resistance. The standardized modular structure simplifies daily inspection and maintenance work, with low failure rate and stable long-term operational performance, greatly reducing later maintenance costs.

6. FAQ (Frequently Asked Questions)

Q1: What are the advantages of Dyn11 connection compared with traditional Yyn0 transformers?

The 30kV 33kV copper winding oil immersed transformer adopts standard Dyn11 vector group, which is far superior to traditional Yyn0 connection in actual grid operation. Dyn11 structure can effectively suppress zero-sequence current and grid harmonics, maintain stable voltage output under unbalanced three-phase load, and avoid low-voltage side voltage deviation. In industrial scenarios with frequent load changes and unbalanced power consumption, it can significantly improve power supply quality, reduce equipment heating failure rate, and better protect terminal electrical equipment. It is the mainstream connection mode for modern medium-voltage high-quality power distribution projects.

Q2: Why choose copper winding instead of aluminum winding for 33kV oil immersed transformers?

Pure copper winding has inherent performance advantages over aluminum winding in medium-voltage transformer applications. Copper material features higher conductivity, lower resistivity and better heat dissipation, which can effectively reduce operating loss and temperature rise during long-term full-load operation. Copper winding transformers have stronger short-circuit resistance and structural stability, not easy to deform or age under peak load impact. Although the initial investment is slightly higher, copper winding equipment has longer service life, lower failure rate and lower long-term operation and maintenance costs, which is more cost-effective for industrial parks and substations with 24-hour continuous operation.

Q3: What daily maintenance does a 30kV/33kV oil immersed transformer need?

This medium-voltage oil immersed power transformer has low daily maintenance threshold and stable performance. Daily routine work mainly includes visual inspection of oil tank sealing welds and radiator surfaces to check for oil leakage, deformation and dust accumulation. Operators need to regularly confirm insulating oil level and oil clarity, and clean radiator dust to ensure unobstructed heat dissipation. Periodically test winding insulation resistance and three-phase voltage balance to eliminate potential insulation aging risks. Avoid long-term overload operation in daily use. With standardized simple maintenance, the equipment service life can steadily exceed 25 years.
