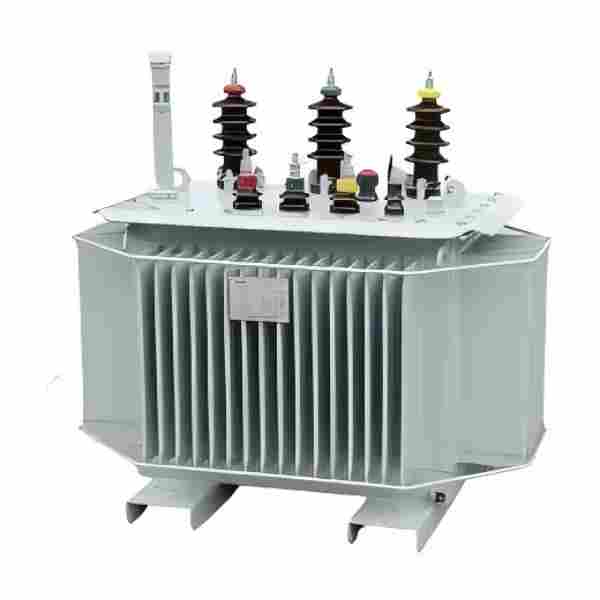

35KV 10.5KV 25000KVA Oil Immersed Distribution Transformers for 50Hz and 60Hz Three Phase Frequency
1. Product Description
This three-phase 25000KVA oil immersed distribution transformer is a dual-frequency adaptable medium-voltage power transformation device designed for global power grid standards, supporting both 50Hz and 60Hz operating frequency. With a standard 35kV high voltage input and 10.5kV low voltage output, this 25MVA medium-capacity oil immersed transformer delivers stable step-down power conversion for industrial and utility distribution systems, fully complying with IEC 60076 and international power equipment manufacturing standards.
Different from conventional single-frequency power transformers limited to fixed grid frequency, this universal three-phase oil immersed distribution transformer features optimized electromagnetic structure design, which enables stable operation under both 50Hz European/Asian grid standards and 60Hz American grid specifications. Adopting high-performance grain-oriented silicon steel core and high-purity oxygen-free copper windings, the equipment minimizes frequency deviation loss and ensures consistent conversion efficiency across dual frequency working conditions. Equipped with fully sealed oil tank structure and vacuum oil injection technology, it uses high-purity transformer oil as insulation and heat dissipation medium to realize reliable ONAN natural oil cooling and ONAF forced air cooling circulation. Built with off-circuit tap changer for voltage fine adjustment, this 35kV to 10.5kV oil immersed power transformer maintains precise output voltage stability under variable frequency and load conditions, making it a versatile core device for cross-regional power grid construction and international industrial power projects.
2. Core Product Uses
The core application purpose of this 35kV/10.5kV 25000KVA three-phase dual-frequency oil immersed transformer is to complete safe, low-loss and stable medium-voltage step-down conversion and power distribution in global power systems. It mainly converts 35kV high-voltage transmission power into standard 10.5kV medium-voltage distribution power, providing qualified power source for secondary distribution networks, industrial production lines and new energy grid-connected systems.
Thanks to its 50Hz and 60Hz dual-frequency compatibility, this universal oil immersed distribution transformer solves the frequency adaptation problem of power equipment in cross-border engineering and multi-standard grid regions. It effectively stabilizes medium-voltage grid voltage, balances regional power load distribution, and suppresses power fluctuation and harmonic interference caused by frequency difference and load mutation. The optimized low-loss electromagnetic design greatly reduces no-load and load power consumption during long-term operation, improving overall grid energy utilization efficiency. In addition, the equipment has excellent short-circuit withstand capability and overload resistance, which can cope with instantaneous grid faults and peak power consumption impact, protect downstream 10.5kV distribution equipment and terminal loads, and ensure continuous and uninterrupted power supply for key industrial and utility projects under different frequency operating conditions.
3. Main Application Scenarios
3.1 Global Cross-Regional Power Grid Projects
This 25000KVA 50Hz/60Hz dual-frequency oil immersed transformer is widely used in international power grid construction, overseas substation projects and cross-border power transformation engineering. It can flexibly adapt to 50Hz power grids in Asia, Europe, Africa and 60Hz power grid standards in North America and Southeast Asia, eliminating equipment replacement troubles caused by frequency differences. It serves as the core step-down equipment for 35kV regional substations, providing stable 10.5kV power support for urban and rural power distribution networks in different countries and regions.
3.2 Large Industrial Park Centralized Power Supply
It is the preferred power transformation equipment for large chemical industrial parks, metallurgy manufacturing bases, mining industrial zones and building material production clusters. Heavy industrial production requires long-term stable medium-voltage power supply, and this 35kV to 10.5kV three-phase oil immersed distribution transformer with 25MVA rated capacity fully meets the continuous full-load power demand of industrial clusters. Its dual-frequency design also adapts to imported industrial equipment with different frequency standards, avoiding power mismatch and equipment failure caused by grid frequency differences.
3.3 New Energy Power Generation Grid Connection
The equipment is perfectly applicable for grid-connected power transformation of large-scale photovoltaic power stations, onshore wind farms and biomass power plants. New energy projects are often deployed globally with diverse local grid frequency standards. This dual-frequency oil immersed power transformer can adapt to variable grid frequency environments, convert unstable new energy power into standardized 10.5kV medium-voltage power, improve new energy grid-connected power quality, and realize efficient local power consumption and on-grid power transmission.
3.4 Overseas Engineering and Infrastructure Construction
It provides reliable power guarantee for overseas municipal infrastructure, water conservancy projects, railway supporting facilities and national key engineering projects. These international engineering projects often face complex grid standard differences, and the 50Hz and 60Hz dual-frequency adaptive design of this three-phase distribution transformer greatly improves project universality, reduces engineering procurement cost and shortens project construction cycle.
3.5 Regional Power Grid Renovation and Upgrading
In old grid renovation and voltage level upgrading projects with mixed frequency standards, this universal oil immersed transformer effectively solves the problem of outdated single-frequency equipment incompatibility. It supports seamless switching and stable operation of different frequency grids, improves the overall operation stability and universality of regional power systems, and extends the service life of power grid supporting equipment.
4. Key Product Features
4.1 Dual 50Hz/60Hz Frequency Universal Compatibility
As the core advantage of this series of transformers, the professional dual-frequency electromagnetic optimization design enables stable rated operation under both 50Hz and 60Hz grid conditions. It maintains consistent voltage conversion accuracy, low loss performance and operational stability without parameter adjustment, perfectly adapting to global mainstream power grid frequency standards. This universal design greatly improves equipment application flexibility, solves the matching pain point of single-frequency transformers in international projects, and realizes one-piece multi-scene universal application.
4.2 Ultra-Low Loss and High Energy-Saving Performance
Adopting high-grade low-loss grain-oriented silicon steel core and high-conductivity oxygen-free copper windings, combined with optimized three-phase balanced winding layout and core lamination process, the equipment effectively suppresses frequency deviation loss, hysteresis loss and eddy current loss. Both no-load loss and load loss are significantly lower than industry standard values. Whether operating at 50Hz or 60Hz frequency, it maintains excellent energy-saving effect, effectively reducing long-term power transmission and operation costs for power grid enterprises and industrial users.
4.3 Fully Sealed Structure and Superior Insulation Performance
The whole machine adopts integrated fully sealed corrugated oil tank and multi-layer composite sealing structure, paired with advanced vacuum oil injection technology to completely remove internal air and moisture. It effectively prevents transformer oil oxidation, deterioration and water absorption, avoiding common faults such as insulation aging and oil leakage. The high-grade oil-paper insulation system provides strong high-voltage resistance, lightning impulse resistance and overvoltage protection, ensuring long-term safe and stable operation of the 35kV medium-voltage system under dual frequency working conditions.
4.4 Flexible Dual Cooling Modes and Strong Environmental Adaptability
Supporting ONAN natural oil natural cooling and ONAF forced air cooling dual modes, the transformer can automatically adjust heat dissipation efficiency according to load changes and ambient temperature. The efficient circulating oil duct system ensures stable temperature rise control under full-load and short-time overload operation. It adapts to a wide ambient temperature range of -40℃ to +45℃, and can operate stably in high temperature, low temperature, dusty and humid outdoor substation environments. It is suitable for open-air outdoor installation and indoor high-voltage distribution room layout with strong scene adaptability.
4.5 Excellent Short-Circuit Resistance and Structural Stability
The internal iron core and windings adopt integral clamping reinforcement and anti-vibration structural optimization, passing strict sudden short-circuit test verification. The equipment can withstand strong instantaneous short-circuit current impact and long-term operational vibration, effectively avoiding winding deformation and displacement. With strong mechanical stability and anti-fatigue ability, it maintains stable structural performance under long-term dual-frequency variable load operation, greatly reducing equipment failure rate and improving operational safety.
4.6 Low Maintenance and Long Service Life
The fully sealed maintenance-free design eliminates frequent oil replacement and internal cleaning work required by traditional open transformers. High-quality raw materials and mature manufacturing process endow the equipment with strong anti-aging, anti-corrosion and weather resistance. It has few vulnerable parts and low daily maintenance workload, with a design service life of up to 30 years. The dual-frequency universal design also improves equipment reuse rate, delivering ultra-high comprehensive cost performance for long-term power system operation.
5. Frequently Asked Questions (FAQ)
5.1 Does switching between 50Hz and 60Hz operating frequency affect the service life and performance of this 25000KVA transformer?
No performance attenuation or service life impact will occur. This 35kV 10.5kV oil immersed distribution transformer is specially optimized for dual-frequency operation in the electromagnetic design stage. The core and winding structure are calibrated for both 50Hz and 60Hz frequency characteristics, with no need for manual parameter adjustment or structural modification during frequency switching. It can operate stably for a long time under single fixed frequency or occasional frequency conversion working conditions, maintaining consistent voltage conversion accuracy, loss index and insulation performance. Professional factory testing verifies that dual-frequency switching will not cause equipment aging or performance degradation, ensuring reliable operation in multi-standard grid environments.
5.2 What is the overload capacity of this 35kV to 10.5kV three-phase dual-frequency transformer?
This medium-capacity oil immersed power transformer has excellent universal overload tolerance under both 50Hz and 60Hz working conditions. It supports long-term stable full-load operation at rated 25000KVA capacity, can withstand 1.5 times rated load continuous operation for 6 hours and 1.75 times rated load short-term operation for 3 hours. Whether in 50Hz Asian/European grids or 60Hz American grids, its overload performance remains consistent, effectively coping with seasonal peak power consumption and temporary load surge. It can adapt to most industrial and utility peak load working conditions without overload tripping or overheating failure.
5.3 What are the advantages of this dual-frequency transformer compared with conventional single-frequency 35kV oil immersed transformers?
Compared with traditional single-frequency 35kV oil immersed distribution transformers limited to fixed grid standards, this 50Hz/60Hz universal model has outstanding application versatility. It can adapt to global dual mainstream grid frequency standards, solving the problem of equipment inadaptability in cross-border projects and mixed-frequency grid renovation. It avoids repeated equipment procurement caused by frequency difference, greatly reducing project cost and inventory pressure. In addition, its frequency-adaptive electromagnetic structure effectively suppresses frequency loss, with more stable operation and stronger anti-interference ability than single-frequency products. It is the most cost-effective choice for international power engineering, overseas industrial projects and multi-standard grid construction.
