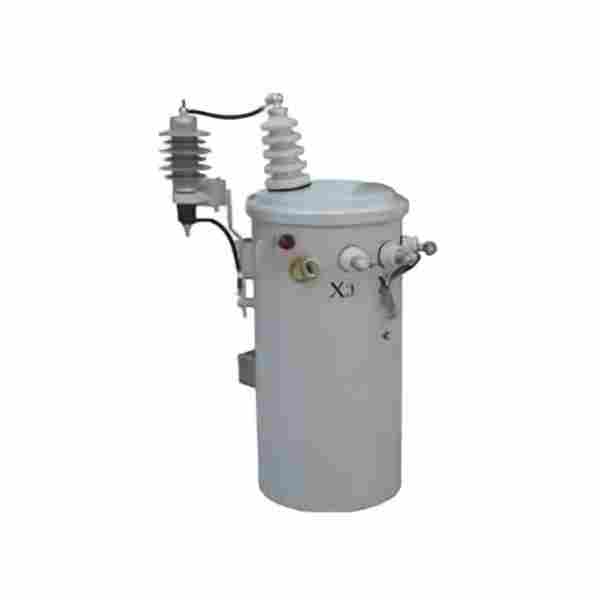

5kVA–250kVA 50Hz/60Hz Single-Phase Pole Mounted Transformer
1. Product Overview
The single-phase pole mounted transformer is a mainstream overhead power distribution device widely adopted in global utility power grids, specially designed for outdoor pole installation and low-load single-phase power conversion scenarios. This full-series product covers complete mainstream capacity models including 5kVA, 10kVA, 37.5kVA, 75kVA, 100kVA and 250kVA, and supports dual standard frequency operation of 50Hz and 60Hz, which can perfectly adapt to power grid standards and power consumption habits of different countries and regions worldwide. Manufactured in strict accordance with ANSI, IEEE and IEC international industry standards, this overhead single-phase transformer adopts mature oil-immersed insulation and heat dissipation technology, featuring compact structure and reliable outdoor environmental resistance.
Different from traditional three-phase distribution transformers, this pole mounted single-phase transformer is more targeted for scattered low-power power supply scenarios. It mainly undertakes the task of stepping down medium-voltage overhead line power into usable low-voltage single-phase power for terminal users. The whole machine adopts high-purity oxygen-free copper winding and high-quality oriented silicon steel sheet core, with fully sealed corrugated oil tank structure. All internal core and coil components are completely immersed in premium insulating oil, which provides stable insulation protection and efficient circulating heat dissipation. Whether it is the miniature 5kVA model for ultra-light load power supply or the high-power 250kVA model for centralized residential cluster power supply, every specification maintains consistent manufacturing precision and operational stability.
As a core terminal power distribution equipment for rural and urban overhead power grids, the 50Hz and 60Hz dual-frequency single-phase pole transformer solves the problems of scattered power load, wide distribution and low single-point power consumption. It features flexible installation, low operation noise and low no-load loss, and can operate stably in long-term outdoor open-air environments. With comprehensive model coverage and strong compatibility, it has become the most commonly used single-phase power conversion equipment in overhead distribution systems, fully meeting the customized power demand of different load levels.
2. Core Product Features
2.1 Full Model Coverage and Wide Frequency Compatibility
This single-phase pole mounted transformer series covers all conventional capacity specifications from small 5kVA, 10kVA, medium 37.5kVA, 75kVA, 100kVA to large 250kVA, realizing full coverage of single-phase power load demand. It supports universal 50Hz industrial frequency and 60Hz international standard frequency operation, which can be freely matched according to local power grid frequency standards. The diversified model design avoids the limitation of single specification selection, and can accurately adapt to ultra-light load, conventional load and medium and large centralized single-phase load scenarios, with extremely high equipment matching flexibility.
2.2 Compact Pole-Mount Design and Easy Installation
Optimized for overhead pole installation, the transformer features lightweight and integrated structural design, with reserved standard mounting lugs and hardware matching positions. It can be directly installed on wooden, concrete and steel utility poles without large-scale foundation construction, greatly saving installation space and engineering cost. Compared with ground-mounted transformers, this pole-mounted single-phase transformer has shorter construction cycle and simpler on-site operation, and is very suitable for rapid layout in scattered power supply points in rural areas, suburban roads and remote regions.
2.3 Low Loss, High Efficiency and Energy Saving
Adopting optimized core lamination process and precise winding layout, the 50Hz/60Hz single-phase pole transformer effectively reduces no-load loss, load loss and magnetic flux leakage loss. Even during long-term light-load operation which is common in single-phase power supply scenarios, the equipment can still maintain high operating efficiency, avoiding long-term energy waste caused by low-load operation. All models including 5kVA, 37.5kVA, 100kVA and 250kVA have passed strict energy efficiency testing, with energy efficiency indicators exceeding industry standard levels, helping power grid operators reduce long-term operational power consumption costs.
2.4 Superior Outdoor Environmental Adaptability
The fully sealed oil tank structure completely isolates external moisture, dust and corrosive substances, effectively preventing internal insulation aging and component oxidation. The outer shell adopts heavy-duty anti-corrosion and ultraviolet-proof spraying process, which can resist wind and rain erosion, high-temperature exposure and low-temperature freezing. It can operate stably for a long time in harsh outdoor environments such as rural open air, coastal areas and dusty field environments. The equipment has strong seismic performance and structural stability, and is not easy to deform or damage under external wind load and mechanical vibration.
2.5 High Safety and Low Maintenance Performance
This overhead single-phase pole mounted transformer is equipped with built-in overcurrent, overload and short-circuit protection functions, which can automatically cut off faulty current when encountering grid surge or load abnormality, effectively protecting equipment and terminal power consumption safety. The fully sealed design avoids frequent oil replenishment and daily cleaning maintenance, realizing long-term maintenance-free operation under normal working conditions. The high-quality materials and mature process ensure a long service life, greatly reducing later operation and maintenance workload and equipment replacement cost for users.
3. Core Purpose
The core purpose of the 5kVA–250kVA 50Hz/60Hz single-phase pole mounted transformer is to undertake terminal single-phase voltage step-down and power distribution work in overhead power grid systems. It mainly converts medium-voltage electric energy transmitted by overhead power lines into standard low-voltage single-phase power that meets the requirements of civilian and small commercial electrical equipment, realizing safe, stable and efficient power energy transmission and distribution for scattered terminal power consumption points.
In actual power grid operation, this series of pole-mounted transformers solves the power supply matching problem of single-phase electrical loads. For decentralized residential households, rural scattered power consumption and small single-phase equipment loads, it can accurately stabilize output voltage, avoid power supply instability and equipment damage caused by long-distance power transmission attenuation and grid fluctuation. Supporting dual 50Hz and 60Hz frequency operation, it can adapt to different regional grid frequency standards, ensure stable power frequency output, and guarantee the normal operation of various single-phase electrical equipment, lighting systems and daily power consumption facilities.
In addition, the single-phase pole transformer also undertakes the functions of regional power load balancing and grid fault isolation. It can effectively isolate local line faults, prevent fault diffusion from affecting the overall power grid operation, improve the safety and stability of regional power distribution systems, and provide reliable terminal power supply guarantee for low-load single-phase power consumption scenarios.
4. Application Scenarios
4.1 Rural and Suburban Residential Power Distribution
This full-series single-phase pole mounted transformer is the core equipment for rural electrification and suburban residential power grid transformation. Small capacity models such as 5kVA and 10kVA are suitable for remote scattered rural households and single-family villa power supply; medium capacity 37.5kVA and 75kVA models are widely used for centralized power supply of rural village clusters and suburban residential communities; 100kVA and 250kVA large capacity models can meet the power demand of dense residential blocks. The 50Hz and 60Hz frequency adaptive design adapts to different regional rural power grid standards, realizing 24-hour stable civilian power supply.
4.2 Agricultural and Field Engineering Power Supply
It is widely used in farmland irrigation systems, greenhouse planting bases, animal breeding farms and rural agricultural supporting facilities. Agricultural power consumption features scattered points and low single-point load, which perfectly matches the application advantages of single-phase pole-mounted transformers. The outdoor weather-resistant structure can adapt to field open-air working conditions, providing stable power support for agricultural water pumps, ventilation equipment, agricultural lighting and small agricultural machinery. The convenient pole-mounted installation also meets the rapid power access demand of temporary agricultural power consumption points.
4.3 Urban Public Facilities and Street Lighting
Medium and small capacity models of 5kVA to 75kVA are commonly used for urban street lighting, park facilities, scenic area power supply, road monitoring and traffic signal system power distribution. These public facilities mostly adopt single-phase power supply with stable and low load. The low-noise and stable operation performance of 50Hz/60Hz single-phase pole transformers will not affect urban public environment, and the outdoor anti-corrosion design can adapt to long-term outdoor operation of urban public facilities, ensuring continuous and reliable power supply for urban municipal supporting equipment.
4.4 Remote Area and Temporary Power Supply Projects
For remote mountainous areas, island areas, field construction sites and temporary outdoor power consumption scenarios, this series of pole mounted single-phase transformers is the preferred power distribution equipment. It has simple installation conditions, strong environmental adaptability and flexible capacity matching. Different specifications from 100kVA to 250kVA can meet the temporary centralized power demand of field engineering, while small models are suitable for scattered remote power supply. The dual-frequency design also supports cross-regional engineering power grid adaptation, meeting the power supply needs of various special and remote scenarios.
5. Frequently Asked Questions (FAQ)
Q1: What is the difference between 50Hz and 60Hz single-phase pole mounted transformers, and how to select the right frequency?
The core difference between 50Hz and 60Hz single-phase pole mounted transformers lies in the rated operating frequency and applicable regional grid standards, with slight differences in internal winding turns and core design. The 50Hz model is mainly applicable to most Asian, European and African regional power grids, while the 60Hz model is widely used in North America, South America and some Southeast Asian countries. In actual selection, users only need to match the local power grid standard frequency. It is worth noting that the two frequency models are not universal. Using mismatched frequency will cause unstable voltage output, increased equipment loss and even overheating failure. All our 5kVA–250kVA models support customized 50Hz or 60Hz frequency configuration.
Q2: How to choose the appropriate capacity (5kVA/10kVA/37.5kVA/75kVA/100kVA/250kVA) for single-phase pole transformers?
Capacity selection needs to be based on actual peak power load and future load growth reserve. 5kVA and 10kVA ultra-small capacity models are suitable for single remote households, independent street lighting and ultra-light load single-phase equipment; 37.5kVA and 75kVA medium capacity are the most widely used specifications, applicable to ordinary village clusters, suburban residential groups and conventional agricultural power supply; 100kVA and 250kVA large capacity models are used for dense residential blocks, centralized farm bases and small commercial single-phase load areas. It is recommended to reserve 15%–20% capacity margin on the basis of actual load to avoid long-term full-load operation and extend equipment service life.
Q3: What are the common faults and daily maintenance tips for outdoor single-phase pole mounted transformers?
Common faults of outdoor single-phase pole mounted transformers include insulating oil aging, shell oil leakage, abnormal operating noise and unstable voltage output, mostly caused by long-term outdoor exposure, seasonal temperature changes and occasional overload operation. Daily maintenance is simple and feasible: regularly check the oil level and oil quality of the sealed oil tank to prevent oil leakage and deterioration; clean the dust and floating debris on the radiator and shell to ensure unobstructed heat dissipation; regularly detect grounding resistance and insulation performance to eliminate hidden dangers. In addition, avoid long-term overload operation exceeding rated kVA, and regularly check the firmness of pole mounting hardware. Standard routine inspection can effectively reduce failure rate and ensure long-term stable operation of 50Hz/60Hz dual-frequency pole transformers.
