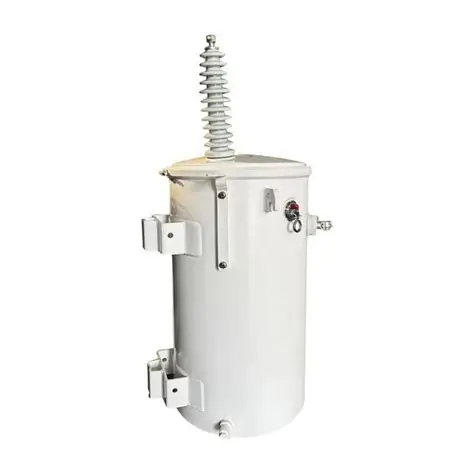

Single Phase Pole Mounted Transformer 10kV/69kV Input to 120V/240V/440V Output
Single Phase Pole Mounted Transformer 10kV/69kV Input to 120V/240V/440V Output
1. Product Description
This IEC and ANSI standard single phase pole mounted transformer is a versatile oil-immersed overhead distribution transformer built for dual high-voltage input operation, supporting both 10kV medium-voltage and 69kV high-voltage grid line input. Designed for global residential, commercial and light industrial power distribution systems, this outdoor single-phase step-down transformer delivers triple low-voltage output options of 120V, 240V and 440V, fully meeting diversified end-user power supply demands across different regional electrical standards. Strictly manufactured in compliance with IEC 60076 and ANSI C57 series industry specifications, it passes complete type testing for outdoor power equipment, ensuring full compatibility with European, American and international mainstream power grid systems.
Adopting premium cold-rolled grain-oriented silicon steel core and high-purity oxygen-free copper windings, this low-loss pole mounted distribution transformer optimizes internal electromagnetic structure to adapt to variable high input voltage and multi-range low output voltage working conditions. The whole unit features a fully sealed welded steel oil tank with professional vacuum oil injection technology, using high-grade insulating transformer oil as heat dissipation and insulation medium to achieve reliable ONAN natural cooling performance. Different from conventional single-voltage pole transformers with fixed parameters, this universal single-phase transformer supports flexible switching between 10kV and 69kV primary input, with adjustable secondary output covering 120V household low voltage, 240V high-power civilian voltage and 440V light industrial standard voltage. Equipped with standard pole mounting brackets and integrated lightning protection structure, it is a highly adaptable, standard-compliant core device for overhead power grid construction, renovation and decentralized terminal power supply projects worldwide.
2. Core Product Uses
The core functional purpose of this ANSI and IEC certified single phase pole mounted transformer is to implement safe, stable and low-loss high-to-low voltage conversion in overhead single-phase power distribution networks. It mainly undertakes two key voltage transformation tasks: stepping down conventional 10kV medium-voltage overhead grid power and industrial-grade 69kV high-voltage line power into standardized 120V, 240V and 440V low-voltage power, realizing accurate voltage matching for terminal power consumption equipment.
In daily power grid operation and field power supply scenarios, this oil-immersed single-phase distribution transformer effectively solves the voltage mismatch problem between high-voltage transmission lines and low-voltage end loads. It can flexibly provide 120V power for household lighting, small electronic devices and low-power civilian equipment, 240V power for high-power home appliances and commercial electrical facilities, and 440V power for single-phase light industrial machinery and small processing equipment. The dual 10kV/69kV input adaptability makes it suitable for both conventional urban and rural medium-voltage grids and regional high-voltage long-distance transmission grids, greatly reducing line transmission loss and improving overall power supply efficiency. Meanwhile, it features excellent overvoltage resistance, lightning surge suppression and load fluctuation resistance, which can stabilize terminal power quality, protect end-user electrical equipment from grid impact damage, and ensure continuous and reliable unattended power supply for decentralized power consumption areas.
3. Main Application Scenarios
3.1 Urban and Rural Residential Overhead Power Distribution
This IEC ANSI standard single phase pole mounted transformer is widely used in urban community and rural overhead power grid construction and upgrading. Most residential power supply systems adopt overhead line layout, requiring flexible multi-voltage output to meet household mixed power consumption needs. The 120V and 240V output modes perfectly match North American and international civilian power standards, supporting daily household electricity, residential public lighting and community auxiliary equipment operation. The dual 10kV and 69kV input design adapts to different regional grid voltage levels, solving the power supply instability problem of remote residential clusters and scattered rural households.
3.2 Suburban and Remote Area Long-Distance Power Supply
It is the ideal power transformation equipment for remote mountainous areas, pastoral zones, suburban fringe areas and scattered low-density residential regions. These areas usually adopt 69kV high-voltage long-distance transmission lines to reduce line loss, while conventional low-voltage transformers cannot adapt to high input voltage. This 69kV compatible pole mounted transformer efficiently converts high-voltage long-distance transmission power into usable 120V/240V civilian power and 440V small industrial power, filling the power supply gap in remote areas and improving the coverage and stability of regional power grids.
3.3 Small Commercial and Light Industrial Power Scenarios
The multi-output voltage design of this oil-immersed single-phase transformer fully meets the mixed power demand of street retail stores, rural small processing workshops, service stations and outdoor light industrial facilities. Commercial lighting and office equipment adapt to 120V/240V voltage standards, while small single-phase processing machinery and industrial auxiliary equipment require stable 440V power supply. This universal pole transformer can freely switch output voltage according to on-site load types, realizing one machine for multiple commercial and light industrial scenarios, effectively reducing equipment procurement costs for small and micro enterprises.
3.4 Outdoor Public Facility and Field Engineering Power Supply
It provides stable power guarantee for outdoor public facilities including road monitoring systems, scenic area service equipment, field communication base stations, agricultural water pump equipment and outdoor street lighting systems. These scattered outdoor facilities have low-capacity single-phase power demand and are distributed in complex field environments. The pole-mounted installation method saves construction space, and the strong outdoor environmental adaptability ensures long-term unattended stable operation, perfectly matching the power supply characteristics of outdoor public infrastructure and field engineering projects.
3.5 Global Standard Grid Construction and Old Grid Renovation
Compliant with dual IEC and ANSI international standards, this universal single-phase pole transformer is widely applied in cross-border power projects, overseas grid construction and old regional power grid renovation. Many old power grids have mixed 10kV medium-voltage and 69kV high-voltage line layouts, and traditional single-spec transformers cannot adapt to voltage differences. This dual-input multi-output transformer solves the problem of equipment mismatch in grid upgrading, improves the universality of power distribution equipment, and is suitable for standardized construction of global multi-standard power grids.
4. Outstanding Product Features
4.1 Dual 10kV/69kV Input Compatibility, Ultra-High Grid Versatility
Different from ordinary single-voltage pole mounted transformers, this single-phase distribution transformer supports dual primary input of 10kV and 69kV, covering medium and high voltage mainstream grid levels. Through professional internal tap adjustment design, it can freely adapt to conventional 10kV distribution grids and long-distance 69kV transmission grids without replacing equipment. This dual-voltage compatible design solves the core pain point of single-spec equipment limitation in grid renovation and cross-regional power supply, greatly improving equipment utilization and project adaptability.
4.2 Triple 120V/240V/440V Output, Full Scenario Load Matching
Equipped with optimized center-tapped winding structure, the transformer provides three independent stable low-voltage outputs: 120V for low-power civilian loads, 240V for high-power household and commercial loads, and 440V for light industrial single-phase loads. All output voltages maintain precise conversion accuracy and low fluctuation, realizing seamless matching of civilian, commercial and light industrial power consumption scenarios. The multi-output integrated design avoids repeated equipment configuration for different voltage demands, effectively saving project investment and installation space.
4.3 Dual IEC & ANSI Standard Compliance, Global Certification Adaptability
The whole product is designed, tested and manufactured in strict accordance with IEC 60076 international electrical standards and ANSI C57 American power equipment standards, fully meeting global grid access requirements. All electrical parameters, insulation performance and safety indicators comply with dual standard specifications, supporting free access to European, American, Asian and African power grid systems. It has excellent standard compatibility in international power engineering bidding, overseas project construction and cross-border grid cooperation projects.
4.4 Low-Loss Energy-Saving Design, Economical Long-Term Operation
Adopting high-performance low-loss silicon steel core and high-conductivity pure copper windings, combined with optimized electromagnetic circuit balance design, this oil-immersed transformer effectively reduces no-load loss, load loss and line transmission loss. Whether operating under 10kV or 69kV input conditions, it maintains ultra-low energy consumption operation, significantly reducing long-term power grid operation costs and user electricity expenses. The energy-saving performance is far superior to ordinary conventional single-phase transformers, with prominent economic benefits for long-term continuous operation.
4.5 Fully Sealed Oil-Immersed Structure, Superior Outdoor Reliability
The integrated fully sealed welded oil tank completely isolates internal windings and insulating oil from external air, dust and moisture. The vacuum oil injection process eliminates internal air bubbles and moisture, preventing insulating oil oxidation, deterioration and water absorption. Equipped with high-strength outdoor insulating bushings and multi-layer sealing accessories, the equipment has excellent lightning resistance, overvoltage resistance, moisture resistance and corrosion resistance. It can operate stably for a long time in harsh outdoor environments such as high temperature, low temperature, rain, snow and coastal salt fog, with extremely low failure rate.
4.6 Easy Installation and Low Maintenance, Long Service Life
The lightweight compact structure and standard universal pole mounting brackets support fast on-site installation on utility poles, eliminating the need for concrete foundation construction and shortening project construction cycles. The fully sealed maintenance-free design avoids frequent oil replacement and internal cleaning work required by open-type transformers. With high-quality anti-aging raw materials and mature manufacturing technology, the equipment has stable mechanical and electrical performance, few vulnerable parts and low daily maintenance workload, with a design service life of up to 30 years, delivering excellent comprehensive cost performance.
5. Frequently Asked Questions (FAQ)
5.1 How to switch between 10kV and 69kV input modes for this IEC ANSI standard pole transformer?
This dual-input single phase pole mounted transformer reserves professional adjustable tap groups for 10kV and 69kV voltage levels. On-site professional technicians can complete mode switching through simple internal tap positioning adjustment according to the actual local grid input voltage. After switching, the internal electromagnetic ratio will automatically adapt to the corresponding high voltage, ensuring stable and accurate 120V/240V/440V output without voltage deviation or equipment overload. The whole switching process does not require component replacement or structural modification, with simple operation and high safety, fully adapting to different high-voltage grid operating conditions.
5.2 What is the difference between 120V, 240V and 440V output voltages in practical application?
The three output voltages correspond to completely different terminal load scenarios. The 120V output is mainly used for low-power civilian equipment such as household lighting, sockets and small electronic devices, matching American standard low-voltage civilian power demand. The 240V output is applicable to high-power household appliances, commercial air conditioners and office equipment, covering most medium-power civilian and commercial loads. The 440V output is dedicated to small single-phase industrial machinery, processing equipment and light industrial auxiliary facilities. Users can flexibly match the output voltage according to on-site power consumption types to ensure safe and efficient equipment operation.
5.3 Is this 69kV/10kV dual-input transformer suitable for long-term outdoor unattended operation?
Yes, this oil-immersed single-phase pole mounted transformer is specially optimized for outdoor unattended working conditions. The fully sealed anti-corrosion oil tank structure effectively resists outdoor rain erosion, dust accumulation, ultraviolet aging and salt fog corrosion. The built-in lightning protection and overvoltage suppression structure can cope with thunderstorm weather and grid instantaneous surge. The stable ONAN natural cooling system ensures continuous heat dissipation during 24-hour long-term operation without overheating failure. It has passed strict outdoor environmental adaptability tests and dual IEC/ANSI standard verification, which can operate stably for years in complex outdoor environments, fully meeting the unattended operation requirements of overhead power grids and field power supply projects.
