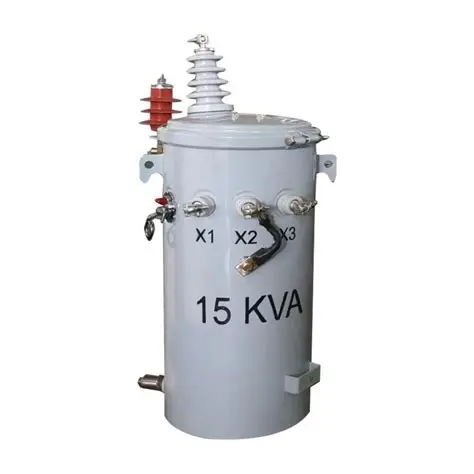

Single Phase Pole Mounted Transformer 15kV / 10kV Input to 220V Output
Single Phase Pole Mounted Transformer 15kV / 10kV Input to 220V Output
1. Product Description
This single phase pole mounted transformer is a versatile overhead distribution transformer engineered for dual high input voltage options, supporting both 15kV class grid input and standard 10kV line input, with a stable single-phase 220V low voltage output for end-user power supply. Designed specifically for outdoor overhead power distribution systems, this oil immersed single-phase step-down transformer adopts traditional barrel-type pole-mounted structure, fully compliant with international IEC 60076 power transformer standards and utility grid operation guidelines. It serves as a critical terminal voltage conversion device for overhead power lines, solving the voltage matching problem between medium-voltage overhead grids and civilian single-phase electrical loads.
Different from fixed-voltage pole transformers on the market, this dual-input single phase pole mounted distribution transformer features adaptable primary voltage design, compatible with both 10kV conventional rural and urban overhead lines and 15kV high-grade regional distribution networks. The whole unit adopts high-purity mineral insulating oil as cooling and insulation medium with ONAN natural oil natural air cooling mode, ensuring reliable heat dissipation and electrical insulation under long-term outdoor operation. Built with high-performance grain-oriented silicon steel core and pure copper windings, the equipment delivers low no-load loss, stable output voltage and strong anti-fluctuation capability. Its lightweight integrated structure and standardized pole mounting brackets make installation fast and convenient for overhead utility pole deployment, making it one of the most practical and widely used single-phase distribution transformers for scattered terminal power supply scenarios.
2. Core Product Uses
The primary core purpose of this 15kV/10kV to 220V single phase pole mounted transformer is to implement safe, efficient and stable medium-to-low voltage step-down conversion in overhead power distribution networks. It mainly converts 10kV or 15kV medium-voltage overhead line electric energy into standard 220V single-phase low-voltage power that meets civilian and small commercial power consumption standards, acting as the final voltage regulation and power distribution link in rural, suburban and remote area power grids.
In daily grid operation, this outdoor single-phase oil immersed transformer effectively stabilizes terminal 220V output voltage, suppresses voltage drop and power fluctuation caused by long-distance overhead power transmission and peak power consumption. It significantly reduces line transmission loss and improves the overall power supply quality of scattered power consumption points. The equipment features reliable overvoltage resistance and lightning impulse resistance, which can effectively protect end household electrical appliances and small single-phase equipment from damage caused by grid surge and instantaneous current impact. In addition, it supports long-term unattended outdoor operation, reduces manual grid maintenance pressure, and ensures continuous, safe and stable single-phase power supply for decentralized low-capacity power loads. With dual 10kV and 15kV input adaptability, it also solves the problem of different voltage level grid compatibility in regional power grid upgrading and reconstruction projects.
3. Main Application Scenarios
3.1 Rural Residential Overhead Power Distribution
This single phase pole mounted transformer with 10kV/15kV input and 220V output is the mainstream power distribution equipment for rural overhead power grid construction and renovation. It is widely installed on outdoor utility poles to provide stable 220V domestic power supply for scattered rural households, village public lighting and rural daily civilian electrical equipment. Its strong environmental adaptability and pole-mounted installation form perfectly fit the decentralized power consumption characteristics of rural areas, effectively improving the coverage and stability of rural single-phase power supply.
3.2 Suburban and Remote Area Power Supply
It is ideal for power supply in suburban fringe areas, remote mountainous areas, pastoral areas and other regions with sparse population and long power transmission lines. These areas mostly adopt 10kV or 15kV overhead power transmission lines, and this dual-input single-phase step-down transformer can flexibly adapt to different local grid voltage standards, providing reliable 220V low-voltage power for scattered residents and remote public facilities, making up for the insufficient coverage of centralized power distribution equipment.
3.3 Small Commercial and Light Industrial Power Consumption
The equipment is suitable for small street shops, rural small processing workshops, roadside service stations and other light-load single-phase power consumption scenarios. Most small commercial equipment, lighting systems and daily office facilities use 220V single-phase power, and this pole-mounted distribution transformer can provide stable and continuous power support, meeting the low-capacity and decentralized power demand of small commercial and individual industrial and commercial households.
3.4 Outdoor Public Facility Power Distribution
It is commonly used for power supply supporting outdoor public facilities such as rural road lighting, monitoring equipment, scenic area service facilities and field communication base station auxiliary equipment. These outdoor facilities have single-phase low-capacity power demand and are scattered in distribution. The pole-mounted installation of this oil immersed transformer saves floor space and adapts to complex outdoor environments, ensuring long-term stable operation of outdoor public service equipment.
3.5 Old Power Grid Renovation and Upgrading Projects
In urban and rural old grid renovation and voltage level upgrading projects, many regional power grids have mixed 10kV and 15kV line layouts. This dual-input compatible single phase pole mounted transformer can adapt to two voltage level lines without replacing equipment in batches, greatly reducing the renovation cost and construction cycle. It is an economical and practical supporting equipment for regional power grid standardization upgrading.
4. Key Product Features
4.1 Dual Input Voltage Compatibility, Strong Grid Adaptability
Different from ordinary single-voltage pole transformers, this outdoor single-phase transformer supports both 10kV and 15kV medium voltage input, compatible with two mainstream overhead grid voltage levels. Users can adjust the internal tapping settings according to local actual line voltage, realizing flexible switching of input voltage without replacing the whole equipment. This dual-compatibility design greatly improves the equipment versatility, effectively solving the matching problem of different voltage lines in grid construction and renovation, and has higher scene adaptability than traditional fixed-voltage pole-mounted transformers.
4.2 Low Loss and High Energy Efficiency, Economical Operation
Adopting high-quality cold-rolled grain-oriented silicon steel core and high-purity oxygen-free copper winding wires, this oil immersed single-phase transformer optimizes core lamination and winding layout structure. It effectively reduces no-load loss, load loss and operating reactive power loss, with all energy efficiency indicators exceeding conventional industry standards. Even in long-term standby and continuous operation, the power consumption loss is extremely low, which can effectively reduce the long-term operation energy consumption of power grids and save operating costs for power supply departments and end users, belonging to energy-saving and environment-friendly distribution equipment.
4.3 Fully Sealed Oil Immersed Structure, High Outdoor Safety
The whole machine adopts fully sealed barrel-type oil tank structure with high-strength welding process and high-quality sealing accessories. The internal vacuum oil injection technology removes air and moisture inside the tank, preventing transformer oil oxidation, deterioration and water absorption. The sealed structure can effectively resist outdoor wind, rain, dust and humid air erosion, avoiding common faults such as oil leakage and insulation aging. Equipped with high-grade outdoor insulating bushings, it has excellent lightning resistance, overvoltage resistance and partial discharge resistance, ensuring long-term safe and reliable operation in open-air outdoor environments.
4.4 Lightweight Pole-Mounted Design, Easy Installation and Maintenance
Optimized integrated compact structure reduces the overall weight and volume of the equipment. Matched with standardized pole mounting brackets, the transformer can be quickly installed and fixed on utility poles without building special foundation platforms, saving construction space and installation cost. The simple internal structure and mature manufacturing process result in low failure rate of vulnerable parts. The fully sealed design avoids frequent oil replacement and internal cleaning, greatly reducing daily maintenance workload and later operation cost, suitable for unattended outdoor grid operation.
4.5 Stable Output Performance and Strong Anti-Interference Ability
Through precise winding turns design and voltage stabilization optimization, the equipment outputs standard 220V single-phase voltage with high precision and small fluctuation range. It can effectively suppress voltage instability caused by long-distance line transmission, load mutation and grid harmonic interference, ensuring the power supply quality of terminal electrical equipment. The product has strong short-circuit resistance and overload capacity, which can cope with instantaneous grid faults and temporary load surge, and will not cause output voltage collapse or equipment damage easily.
4.6 Wide Environmental Adaptability and Long Service Life
This outdoor pole mounted distribution transformer adapts to a wide range of ambient temperatures and complex weather conditions, capable of stable operation in high temperature, low temperature, rainy, snowy and dusty environments. The external anti-corrosion paint and internal anti-aging materials effectively delay equipment aging and corrosion. With stable overall performance and strong environmental tolerance, the equipment has a long service life and can meet the long-term operation requirements of outdoor overhead power distribution networks.
5. Frequently Asked Questions (FAQ)
5.1 What is the difference between 10kV input and 15kV input working modes of this single phase pole mounted transformer?
This dual-input single-phase transformer reserves professional tapping adjustment structures for 10kV and 15kV input voltages. When matching a 10kV overhead grid, users can switch the internal tap position to adapt to 10kV rated input, ensuring accurate 220V voltage output under standard working conditions. When used in a 15kV voltage level grid, adjust the tap to the 15kV gear to avoid overvoltage operation of the equipment and ensure stable step-down effect. The overall structure and output parameters of the equipment remain unchanged under the two working modes, and only simple internal adjustment is required for switching, which is convenient for on-site grid matching construction. The dual-gear design makes the equipment compatible with more regional grid standards and avoids equipment waste caused by voltage level mismatch.
5.2 Is this 15kV/10kV to 220V oil immersed transformer suitable for long-term outdoor rainy and humid environments?
Yes, this pole-mounted single-phase transformer is specially optimized for outdoor harsh working conditions. It adopts a fully sealed integral welding oil tank and multi-layer sealing protection structure, which completely isolates the internal insulating oil and windings from the external humid air and rainwater. The external shell is treated with anti-corrosion and rust-proof spraying, and the high and low voltage bushings adopt outdoor special insulating materials with excellent moisture-proof and lightning-proof performance. It can operate stably in rainy, humid and coastal foggy environments for a long time, with no need for frequent manual protection. It is a highly adaptable outdoor distribution transformer for overhead line terminal power supply.
5.3 What kind of load scenarios are not suitable for this single-phase 220V output pole transformer?
This single phase pole mounted transformer is positioned for low-capacity scattered single-phase power supply, mainly serving civilian households and small light commercial loads. It is not applicable to three-phase industrial equipment, high-power mechanical loads and centralized high-capacity power consumption scenarios. Long-term overload operation and frequent impact load use will cause voltage instability and accelerated equipment aging. In addition, it is not recommended for indoor closed environments with high fire protection requirements and special chemical corrosive gas environments. For three-phase high-load industrial power distribution, users need to select matching three-phase power transformers to ensure safe and efficient system operation.
