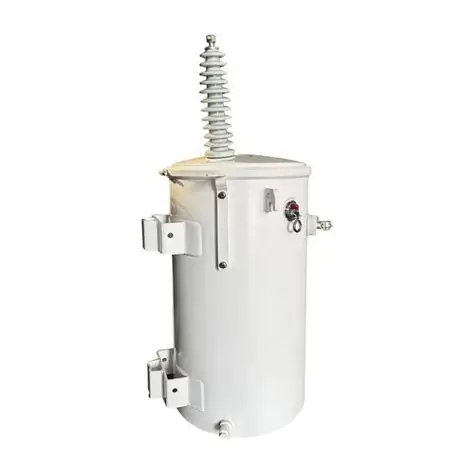

Single Phase Pole Mounted Transformer 34.5kV Input/120V/240V Output (440V Optional)
Single Phase Pole Mounted Transformer 34.5kV Input/120V/240V Output (440V Optional)
1. Product Overview
The single phase pole mounted transformer with 34.5kV high voltage input and standard 120V/240V low voltage output is a professional overhead distribution transformer designed for outdoor power grid voltage conversion. As a core single-phase power distribution device compliant with ANSI and IEEE C57 industry standards, this pole mounted transformer features stable high-voltage step-down performance, specially optimized for medium-voltage overhead power supply systems. For special industrial and commercial power demands, customized 440V output voltage is available upon request, effectively meeting diversified low-voltage power consumption scenarios.
Manufactured with high-grade silicon steel sheets and high-purity copper windings, this 34.5kV single phase pole transformer delivers low no-load loss, high operational efficiency and strong environmental adaptability. The integral pole-mounted structure is lightweight and compact, eliminating the need for ground foundation construction, which greatly simplifies outdoor installation and later maintenance. It is one of the most widely used power transformation equipment for rural and suburban decentralized power supply systems in North American standard power grids.
2. Core Applications & Functions
This 34.5kV to 120V/240V single phase pole mounted transformer undertakes the key core function of converting 34.5kV medium-voltage overhead grid power into safe and usable 120V/240V civilian and commercial low-voltage power. It solves the voltage mismatch problem between high-voltage transmission lines and terminal power equipment, ensuring stable and continuous power supply for end users.
In conventional power distribution operations, it maintains balanced voltage output, suppresses grid voltage fluctuation, and reduces electric energy loss during power transmission. For special production scenarios that require higher low-voltage specifications, the optional 440V output mode can provide stable voltage support for special electrical equipment, avoiding power supply failure or equipment damage caused by non-compliant voltage. In addition, the built-in overload and overcurrent protection functions can automatically isolate faulty circuits, effectively protecting rear-end electrical appliances and grid line safety, and improving the overall stability of the regional power distribution network.
3. Typical Application Scenarios
3.1 Residential Power Supply
It is the preferred power transformation device for suburban residential areas, rural scattered households and remote villa communities. The standard 120V/240V dual-output design perfectly matches North American household power standards, stably supplying power for household lighting, household appliances, intelligent home equipment and daily living power needs. The pole-mounted installation method adapts to scattered residential distribution characteristics, saving land resources and avoiding the space occupation of ground transformer stations.
3.2 Small Commercial & Light Industrial Scenarios
For roadside convenience stores, small shops, rural service stations and small processing workshops with single-phase power demand, this 34.5kV single phase pole mounted transformer provides reliable low-voltage power support. For light industrial equipment, small mechanical devices and commercial electrical facilities that require 440V voltage, the customizable 440V output available upon request can fully meet special production and operation power needs.
3.3 Remote & Outdoor Engineering Power Supply
It is widely used in remote mountainous areas, field monitoring stations, highway roadside facilities, communication base station auxiliary power supply and outdoor temporary engineering power supply scenarios. The equipment has excellent rainproof, dustproof and anti-corrosion performance, adapting to harsh outdoor environments such as high temperature, low temperature and strong wind. It can operate stably for a long time without manual frequent inspection, solving the power supply difficulty of decentralized outdoor terminal equipment.
3.4 Rural Grid Renovation & New Energy Supporting Power Supply
In rural power grid upgrading and reconstruction projects, this high-efficiency pole mounted transformer effectively optimizes regional power distribution structure, reduces line loss and improves power supply quality. It can also be matched with small distributed photovoltaic power generation and wind power generation equipment to complete voltage conversion and grid-connected power distribution, providing stable power transmission guarantee for new energy civilian power supply systems.
4. Product Core Features
4.1 Flexible & Customizable Voltage Specification
The product adopts a mature voltage conversion design, with a fixed 34.5kV high voltage input, covering mainstream medium-voltage grid voltage standards. The standard secondary side outputs 120V/240V dual voltage to adapt to most civilian and conventional commercial power scenarios. Meanwhile, 440V output is available upon request, realizing personalized voltage customization, which can accurately match the power demand of special industrial equipment and expand the application scope of single-phase power distribution.
4.2 High Efficiency & Low Energy Consumption
Adopting high-quality oriented silicon steel sheet core and high-purity copper winding process, the transformer effectively reduces no-load loss and load loss. The optimized electromagnetic structure design improves power conversion efficiency, greatly reducing electric energy loss during long-distance overhead power transmission. It fully complies with DOE energy efficiency standards and IEEE C57 series specifications, with energy-saving performance far exceeding traditional ordinary pole-mounted transformers, helping power grids reduce operational energy consumption and save operating costs.
4.3 Durable Outdoor Environmental Adaptability
The whole machine adopts fully sealed waterproof and dustproof structure, with anti-corrosion and weather-resistant paint sprayed on the outer shell. It can resist extreme weather such as strong wind, rainstorm, snow and high temperature exposure, and can operate stably in the temperature range of -40℃ to +45℃. The pole-mounted installation structure is firm and reliable, with strong wind resistance and seismic performance, adapting to various outdoor overhead laying environments, and has a long service life of up to 30 years with stable performance.
4.4 Safe & Low Maintenance Design
Built-in multiple safety protection mechanisms including overload protection, overcurrent protection and short-circuit protection, the equipment can automatically cut off the power supply in case of grid abnormality or equipment failure to avoid equipment burnout and grid safety accidents. The fully sealed structure isolates internal components from external dust and moisture, avoiding internal insulation aging and failure caused by environmental factors. The integrated modular design makes daily inspection and maintenance more convenient, with low later maintenance cost and high operational safety factor.
4.5 Compact Structure & Easy Installation
Compared with pad-mounted transformers, this single phase pole mounted transformer has a smaller volume and lighter weight, no need for special foundation pouring and station building construction. It can be quickly installed and fixed on wooden poles or concrete poles through standard mounting brackets, with simple construction process and short installation cycle. It is suitable for rapid deployment of decentralized power supply points and flexible layout of urban and rural power grids.
5. Frequently Asked Questions (FAQ)
Q1: What scenarios require customized 440V output for this 34.5kV single phase pole mounted transformer?
The standard 120V/240V output is mainly used for civilian household and conventional small commercial power supply. The optional 440V output is suitable for light industrial processing equipment, special commercial electromechanical devices, outdoor large-scale monitoring equipment and engineering temporary power consumption scenarios that require higher single-phase voltage. Users can put forward voltage adjustment requirements before purchasing, and we can complete factory parameter debugging to ensure the 440V output voltage is accurate and stable, no on-site modification is needed.
Q2: What is the service life and daily maintenance cycle of the outdoor pole mounted transformer?
This 34.5kV overhead single-phase transformer is designed for long-term outdoor operation, with a design service life of 30 years under normal operating conditions and standard grid environment. Thanks to the fully sealed anti-corrosion structure, the daily maintenance cycle is longer than ordinary transformers. It is recommended to conduct a routine inspection of shell integrity, line firmness and voltage stability every six months, and perform a comprehensive performance test of internal insulation and loss parameters every three years. No frequent oil replacement and component maintenance is required, which greatly reduces grid operation and maintenance pressure.
Q3: Is this transformer compatible with 34.5kV medium-voltage power grids in all regions?
This product fully complies with ANSI, IEEE C57 and DOE international industry standards, and is specially designed for 34.5kV medium-voltage overhead power grid systems, which is fully compatible with mainstream North American standard power grids. For regional power grids with special access specifications, we can adjust insulation level, temperature rise parameters and protection configurations according to user demands. In addition, the equipment supports 50/60Hz dual-frequency operation, which can adapt to most national and regional power grid frequency standards, with strong grid compatibility.
