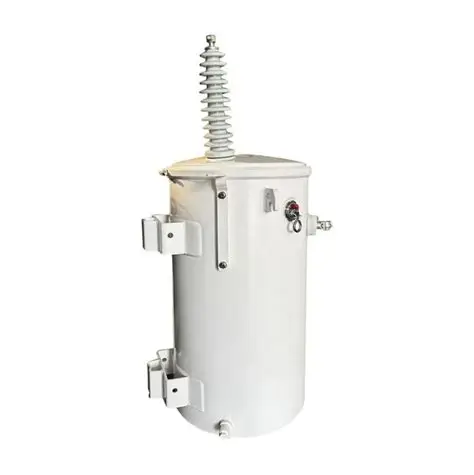

Single Phase Pole Mounted Transformer 34.5kV Input to 120V/240V Output
Single Phase Pole Mounted Transformer 34.5kV Input to 120V/240V Output
1. Product Description
This single phase pole mounted transformer is a standard oil-immersed overhead distribution transformer engineered for North American standard power grid systems, featuring a rated primary input voltage of 34.5kV and dual secondary output voltage of 120V/240V. As a high-voltage single-phase step-down transformer widely adopted in rural and suburban overhead power networks, this 34.5kV pole mounted transformer fully complies with IEEE C57.12.20, ANSI and CSA industry standards, supporting 60Hz conventional power system operation and meeting UL certification requirements for outdoor power distribution equipment.
Designed with a center-tapped secondary winding structure, the unit can independently output 120V for small household electrical circuits and 240V for high-power household and light commercial appliances, realizing dual-voltage flexible power supply with one single device. Adopting premium grain-oriented silicon steel core and high-purity copper windings, this oil liquid cooled single-phase transformer delivers extremely low no-load loss and stable voltage conversion efficiency. The whole machine features a fully sealed welded steel tank structure with professional vacuum oil injection technology, which effectively isolates internal insulating oil from external air and moisture. Optimized for overhead pole-mounted installation, it integrates lightweight structural design and standard mounting brackets, enabling fast field deployment. Tailored for high-voltage 34.5kV distribution line step-down scenarios, this durable outdoor transformer solves the voltage matching problem of high-level medium-voltage grids and terminal low-voltage single-phase loads, serving as core terminal power conversion equipment for scattered power consumption areas.
2. Core Product Uses
The core function of this 34.5kV to 120V/240V single phase pole mounted transformer is to execute safe, stable and efficient high-to-low voltage conversion in overhead single-phase power distribution systems. It mainly steps down 34.5kV high-voltage electric energy transmitted by regional overhead trunk lines into standard 120V/240V dual low voltage, which is universally applicable for civilian household power consumption and small light-load commercial power supply.
In daily grid operation, this high-voltage single-phase distribution transformer can effectively stabilize terminal output voltage, restrain line voltage drop and power fluctuation caused by long-distance overhead power transmission and peak load changes. It significantly reduces power transmission loss of scattered power supply lines and improves the overall power supply quality and energy utilization rate of regional power grids. Equipped with built-in overvoltage protection and lightning impulse resistance performance, the equipment can resist grid surge and instantaneous current impact, effectively protecting terminal household electrical equipment and small commercial devices from burnout damage. In addition, this oil-immersed pole transformer supports long-term unattended outdoor operation, adapts to continuous light-load and intermittent peak-load working conditions, and provides reliable and consistent single-phase power guarantee for remote and decentralized power consumption scenarios. It also reserves off-circuit tap adjustment function to fine-tune output voltage according to on-site line voltage deviation, further optimizing power supply stability.
3. Main Application Scenarios
3.1 Rural Residential Overhead Power Distribution
This 34.5kV single phase pole mounted transformer is the primary power distribution equipment for rural high-voltage overhead grid renovation and construction. Most rural areas adopt 34.5kV high-level overhead power transmission lines for long-distance power delivery, and this step-down transformer can convert high-voltage grid power into standard 120V/240V household power. It perfectly matches the decentralized residential layout of rural areas, eliminating the need for large-scale substation construction, effectively solving the problem of insufficient power supply coverage and unstable voltage in remote rural households, and supporting daily household electricity, rural public lighting and civilian electrical equipment operation.
3.2 Suburban and Remote Area Power Supply
It is widely used for power supply in suburban fringe areas, pastoral areas, mountainous remote areas and scattered residential clusters. These regions feature long power transmission distances, sparse power loads and no centralized power distribution stations, which are completely adapted to the pole-mounted installation and decentralized power supply mode of this outdoor transformer. The dual 120V/240V output design can flexibly meet the mixed power demand of low-power daily electrical appliances and medium-power equipment in remote areas, making up for the layout defects of traditional centralized power distribution equipment.
3.3 Small Commercial and Light Industrial Scenarios
The equipment is suitable for street retail stores, rural small processing workshops, roadside service stations, field service facilities and other light-load single-phase power consumption scenarios. Small commercial equipment, office lighting systems and daily service electrical facilities commonly used 120V and 240V dual voltage power supply. This high-efficiency pole mounted distribution transformer can provide stable continuous power support, meet the low-capacity and intermittent power demand of small commercial entities, and ensure the normal and efficient operation of light commercial business and small handicraft processing.
3.4 Outdoor Public and Field Facility Power Supply
It serves as special power transformation equipment for outdoor scattered public facilities, including rural road monitoring systems, scenic area service equipment, field communication base station auxiliary facilities, rural water pump equipment and outdoor lighting systems. These field facilities have single-phase low-capacity power demand and are widely scattered. The pole-mounted installation saves floor space, and the excellent outdoor environmental adaptability enables long-term stable operation in open-air environments, providing reliable power guarantee for outdoor public service and field engineering facilities.
3.5 North American Standard Grid Construction and Renovation
Tailored for North American 34.5kV high-voltage distribution grid standards and 120V/240V terminal power supply specifications, this ANSI-certified single-phase transformer is widely used in new grid construction, old grid renovation and voltage level upgrading projects in the United States, Canada and other North American regions. It can effectively solve the voltage mismatch problem in grid upgrading, reduce line transformation costs, and improve the overall operation efficiency and stability of regional overhead power grids.
4. Core Product Features
4.1 Standard Dual Voltage Output, Wide Load Compatibility
Adopting professional center-tapped secondary winding design, this single phase pole mounted transformer provides stable 120V and 240V dual output voltage simultaneously. The 120V output adapts to small-power household lighting, socket equipment and low-power electronic devices, while the 240V output meets the power demand of high-power household appliances and light industrial equipment. The dual-voltage integrated design avoids the trouble of separate voltage conversion equipment, realizes one machine for multiple purposes, and greatly improves the flexibility and applicability of terminal power distribution.
4.2 High Voltage Adaptability and Standard Grid Matching
With a rated input voltage of 34.5kV, this high-voltage pole transformer is specially optimized for North American mainstream 34.5kV medium and high voltage overhead distribution networks. It strictly follows IEEE, ANSI and CSA international standards, with precise voltage conversion ratio and stable operational parameters. It can perfectly match the operation frequency and voltage level of North American power grids, ensuring zero mismatch in grid connection and effectively avoiding operational faults caused by parameter incompatibility. The reserved tap adjustment structure can fine-tune output voltage to adapt to slight line voltage fluctuations in different regions.
4.3 Low Loss Energy-Saving Design, Low Operation Cost
This oil-immersed single-phase transformer adopts high-performance low-loss silicon steel core and high-conductivity pure copper windings. Through optimized core lamination and winding balance layout, it minimizes hysteresis loss and eddy current loss, with no-load loss and load loss far lower than industry standard values. Even in long-term standby and intermittent peak operation, the power transmission loss is extremely low. The excellent energy-saving performance effectively reduces long-term grid operation energy consumption and user electricity cost, making it an economical and eco-friendly choice for long-term outdoor power distribution.
4.4 Fully Sealed Oil Immersed Structure, High Outdoor Reliability
The whole machine adopts integrally welded fully sealed steel oil tank and multi-layer composite sealing structure, paired with vacuum oil injection process to completely remove internal air and moisture. This design effectively prevents transformer oil oxidation, deterioration and water absorption, and avoids common faults such as oil leakage and insulation aging. The external shell adopts anti-corrosion and anti-rust spraying treatment, and the high and low voltage insulating bushings are made of outdoor special high-strength insulating materials. It has excellent lightning resistance, overvoltage resistance, moisture resistance and dust resistance, and can operate stably in harsh outdoor environments such as high temperature, low temperature, rain, snow and dust for a long time.
4.5 Lightweight Pole-Mounted Design, Easy Installation and Maintenance
Optimized integrated compact structural design reduces the overall weight and volume of the equipment. Equipped with standard universal mounting brackets, the transformer can be quickly fixed on utility poles without building special concrete foundations, greatly shortening on-site construction cycle and reducing installation cost. The fully sealed maintenance-free design eliminates the need for frequent oil replacement and internal cleaning required by traditional open transformers. The equipment has few vulnerable parts and stable operating performance, with extremely low daily maintenance workload and later operation cost, fully adapting to unattended outdoor grid operation mode.
4.6 Strong Environmental Adaptability and Long Service Life
This outdoor single-phase distribution transformer is professionally optimized for complex outdoor working conditions, adapting to a wide ambient temperature range and harsh weather changes. It can resist ultraviolet aging, wind erosion, rainwater corrosion and seasonal temperature difference changes, with strong weather resistance and structural stability. Adopting high-quality anti-aging raw materials and mature manufacturing technology, the equipment has low failure rate in long-term operation, with a design service life of up to 30 years, delivering excellent comprehensive cost performance for long-term grid operation.
5. Frequently Asked Questions (FAQ)
5.1 What is the working principle of the 120V/240V dual output of this 34.5kV single phase pole mounted transformer?
This transformer adopts a standard center-tapped secondary winding structure, which divides the whole secondary winding into two equal voltage output parts. After stepping down the 34.5kV high-voltage input, it can output 120V voltage through a single winding section for low-power household loads, and output 240V voltage through two series-connected winding sections for high-power electrical equipment. The dual output works independently without mutual interference, and the voltage output is stable and accurate. This structural design is the mainstream standard for North American residential power distribution, which can fully meet the mixed power demand of different voltage equipment in families and small commercial places, realizing flexible and economical power distribution.
5.2 Is this 34.5kV oil immersed pole transformer suitable for long-term operation in coastal and rainy humid areas?
Absolutely suitable. This outdoor-grade single-phase pole mounted transformer is specially optimized for humid and corrosive working environments. The integrally fully sealed oil tank structure completely isolates internal windings and insulating oil from external humid air, salt fog and rainwater, effectively preventing insulation moisture and internal corrosion. The external anti-corrosion paint layer and high-grade outdoor insulating accessories have excellent salt fog resistance and moisture-proof performance. It can operate stably for a long time in coastal areas, rainy and humid regions and high-altitude open-air environments, with strong environmental tolerance and low failure rate, which fully meets the outdoor operation requirements of complex climatic conditions.
5.3 What are the differences between this 34.5kV pole transformer and conventional low-voltage single-phase pole transformers?
The biggest difference lies in the high-voltage input design and application scenarios. Conventional single-phase pole transformers are mostly designed for 10kV, 15kV and other low and medium voltage line input, suitable for short-distance power distribution in urban and plain areas. This 34.5kV high-voltage pole mounted transformer adapts to higher-level high-voltage overhead lines, which can realize longer-distance low-loss power transmission, and is more suitable for long-distance power supply in remote mountainous areas, pastoral areas and wide suburban areas. In addition, it complies with North American ANSI/CSA standard 120V/240V dual output specification, with higher voltage resistance, stronger lightning protection performance and more stable operation, being the special supporting equipment for high-voltage long-distance overhead power distribution systems.
