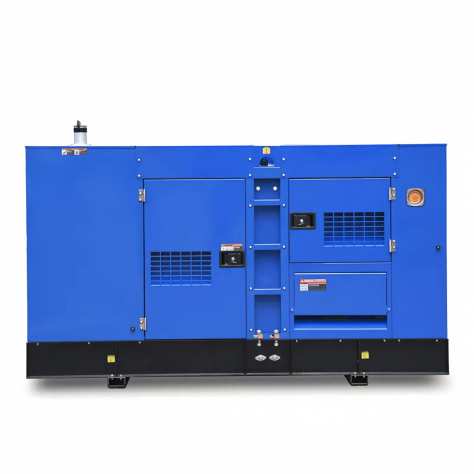

50HZ SDEC 6DTAA8.9-G21 200kVA/160kW Diesel Generator Set

50HZ SDEC 6DTAA8.9-G21 200kVA/160kW Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The SDEC 6DTAA8.9-G21 160kW/200kVA diesel generator set is a high-performance D-series industrial power equipment launched by Shanghai Diesel Engine. As a hot-selling medium-large power diesel generator in the market, this 200kVA SDEC diesel generator set adopts mature turbocharged intercooled technology and 8.9L large-displacement engine design, achieving perfect balance of strong power output, stable operation and energy-saving performance, which can fully meet long-term continuous power supply and emergency backup power demands of various industrial and commercial scenarios.

In terms of power performance, the unit is equipped with genuine SDEC 6DTAA8.9-G21 professional generator-dedicated engine. The 6-cylinder inline structure and optimized turbocharged air intercooling system provide sufficient power reserve. The rated prime power reaches 160kW, and the maximum standby power is up to 176kW. As a high-stability 160kW prime power diesel generator, it can resist frequent load fluctuations, support long-term full-load continuous operation, and maintain stable voltage and frequency output without sudden drop or jitter, effectively adapting to high-load industrial production power consumption environments.

In terms of safety and environmental adaptability, the matched brushless self-excited alternator abandons the traditional carbon brush structure, avoiding spark risks and carbon brush wear failures. Equipped with H-grade high-temperature resistant insulation and IP23 dust-proof and rain-proof protection grade, the whole unit can operate stably in harsh environments such as outdoor open air, factory dust and humid weather. Meanwhile, the unit supports -15℃ low-temperature cold start, solving the power supply dilemma in northern low-temperature regions and winter construction scenarios, with far stronger environmental adaptability than ordinary civilian generator sets.

Energy-saving economy is another core advantage of this 220kVA standby diesel generator. Optimized direct fuel injection technology improves fuel combustion efficiency, and the full-load fuel consumption is only 39.2L/H, which has obvious energy-saving advantages among 200kVA-class industrial generator sets. The reasonable power matching design reduces invalid fuel consumption during operation, effectively cutting the daily operating cost of enterprises and engineering projects, and has excellent long-term use cost performance.

In terms of maintenance and durability, the SDEC D-series engine has undergone strict durability and aging tests, with stable performance and low failure rate. The brushless alternator realizes basic maintenance-free operation, eliminating the trouble of frequent carbon brush replacement and regular overhaul. The whole machine has fewer vulnerable parts and strong part versatility, and the national after-sales service system of SDEC provides convenient technical support and parts replacement, greatly reducing later operation and maintenance difficulty for users.

In addition, the unit supports diversified customized upgrades. Users can install silent canopies to reduce operating noise for residential and commercial areas, or equip weatherproof enclosures for long-term outdoor fixed operation. The optional ATS automatic switching cabinet can realize unmanned automatic start-stop and mains power switching, ensuring seamless power supply switching and improving the intelligence of power guarantee.

3. Main Application Scenarios

Relying on reliable power output, outstanding energy-saving performance and strong environmental adaptability, the SDEC 6DTAA8.9-G21 diesel generator set is widely used in industrial production, commercial supporting, municipal engineering, field operation and emergency power guarantee fields, and is a mainstream medium-large power supply equipment for medium and high load demand scenarios.

Industrial Manufacturing Scenarios: It is the core power guarantee equipment for medium-sized factories, processing workshops and industrial parks. The 160kW stable prime power output can meet the long-term operation of mechanical processing equipment, production assembly lines and industrial electrical systems. It can be used as both daily continuous power supply for off-grid factories and emergency standby power for grid-connected enterprises, effectively avoiding production shutdown and economic losses caused by mains power failure or voltage instability.

Commercial & Public Facility Scenarios: It is widely applied in hotels, large shopping malls, comprehensive office buildings, hospitals and urban public service venues. These scenarios have extremely high requirements for power supply continuity. Once the municipal power grid fails or is cut off, this industrial diesel generator can start quickly and switch power supply automatically, ensuring the normal operation of elevators, medical precision equipment, fire protection systems and office equipment, and guaranteeing public safety and normal commercial operation.

Municipal & Construction Engineering Scenarios: It is the preferred temporary power supply for road reconstruction, bridge engineering, municipal infrastructure construction and large-scale outdoor projects. With IP23 dust and rain resistance and low-temperature startup capability, the unit can adapt to complex outdoor construction environments, providing stable and lasting power support for construction machinery, on-site lighting and temporary office equipment, and solving the problem of insufficient temporary power supply on construction sites.

Field & Special Emergency Scenarios: It is also suitable for power supply of remote field exploration bases, communication base stations, logistics parks and disaster emergency rescue sites. For areas without stable municipal power grid coverage, the unit can operate continuously for a long time as the main power source; for emergency power outage accidents, it can respond quickly to provide stable emergency power supply, with strong adaptability to special scenarios.

4. Core Product Purposes

As a professional medium-large power industrial diesel generator set, the core purpose of the 6DTAA8.9-G21 SDEC diesel generator is to provide stable, efficient and low-consumption full-cycle power guarantee for medium and high load industrial and commercial scenarios, covering three core usage modes: off-grid prime power supply, grid-connected emergency standby power supply and peak-shaving power supply.

First, it serves as off-grid main prime power supply. In remote construction bases, field operation sites, rural industrial zones and other areas without complete municipal power facilities, the 160kW/200kVA high-power output can be used as the long-term main power source to provide 24-hour uninterrupted power supply for production equipment, living facilities and office systems. Its low fuel consumption and high durability effectively reduce the comprehensive power consumption cost of off-grid operation.

Second, it acts as grid-connected emergency standby power supply. For industrial enterprises, medical institutions and key public facilities that cannot tolerate power interruption, the unit is used as a backup power source for the municipal power grid. When encountering mains power failure, power grid maintenance, seasonal power rationing and other situations, it can start up in a short time and take over the full load operation, ensuring the uninterrupted operation of core equipment and avoiding safety accidents and economic losses caused by power outage.

Third, it undertakes power peak shaving work for enterprise power consumption. In the peak period of regional power grid tension and power supply shortage, the unit can assist in bearing part of the production power load, relieve the pressure of enterprise power consumption, ensure the continuous progress of production tasks, and effectively solve the production stagnation problem caused by power grid power limit.

5. Common FAQ

Q1: What is the difference between prime power and standby power of the 6DTAA8.9-G21 generator set in actual use?

A1: The 160kW/200kVA prime power is the rated continuous operating power of the genset, supporting long-term 24-hour uninterrupted operation and applicable to daily off-grid main power supply and long-term fixed load operation. The 176kW/220kVA standby power is emergency peak power, which is 10% higher than the prime power. It is only used for short-time emergency power supply after mains power failure and is prohibited from long-term full-load operation. In actual engineering use, it is recommended to control the operating load within 80%-90% of the prime power to effectively extend the service life of the engine and alternator.

Q2: What are the practical advantages of the brushless self-excited alternator equipped on this SDEC genset?

A2: This 200kVA industrial diesel generator adopts advanced brushless self-excited alternator, which has obvious advantages over traditional brushed generators. It has no carbon brush wear, friction spark and frequent failure problems during operation, with higher operational safety and lower failure rate. Equipped with H-grade insulation and IP23 protection, it has stronger high-temperature resistance and environmental corrosion resistance. The output power waveform is more stable, which will not cause impact damage to precision electrical equipment, and it basically realizes maintenance-free daily use, greatly saving later maintenance time and cost.

Q3: What is the fuel consumption level and conventional maintenance cycle of the 6DTAA8.9-G21 generator set?

A3: The full-load fuel consumption of the unit is 39.2L/H, which maintains a good energy-saving level among similar 200kVA industrial generator sets. In terms of daily maintenance, users only need to regularly check fuel quantity, cooling water level and unit operating status. Routine maintenance including engine oil replacement, filter element replacement and radiator dust cleaning is required every 200 operating hours. A comprehensive overall inspection and equipment overhaul is recommended every 1000 operating hours or one year. Benefiting from the mature SDEC D-series engine technology and brushless alternator design, the unit has fewer vulnerable parts and lower comprehensive operation and maintenance costs.
