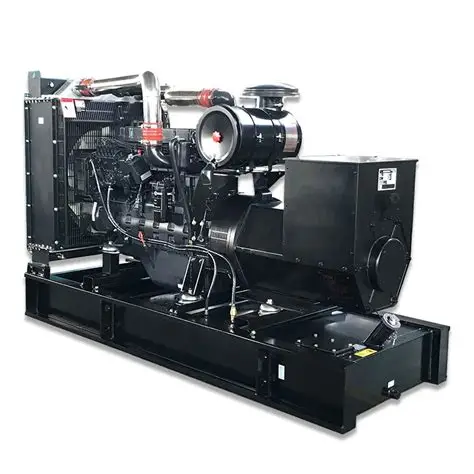

50HZ SDEC 6DTAA8.9-G23 250kVA/200kW Diesel Generator Set

50HZ SDEC 6DTAA8.9-G23 250kVA/200kW Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The SDEC 6DTAA8.9-G23 200kW/250kVA diesel generator set is a high-power industrial genset built on SDEC mature D-series engine platform. As one of the most popular high-load diesel generators in the industrial power equipment market, this 250kVA SDEC diesel generator set inherits the advantages of stable torque output, strong load resistance and long service life of SDEC original engines, and is specially optimized for long-hour continuous operation and harsh working conditions, fully meeting the high-standard power supply demands of industrial production and large-scale engineering projects.

In terms of power performance, the unit is equipped with genuine SDEC 6DTAA8.9-G23 generator-specific engine. The 6-cylinder inline structure and 8.9L large-displacement turbocharged intercooled design deliver ample power reserve, with a stable prime power of 200kW and a maximum standby power of 220kW. As a high-performance 200kW prime power diesel generator, it can withstand frequent load impact and long-term full-load operation, maintaining stable voltage and frequency output without jitter or power failure. Its excellent transient response capability ensures the unit can quickly adapt to sudden load changes in industrial scenarios, effectively avoiding equipment shutdown caused by power instability.

In terms of operational reliability and environmental adaptability, the matched brushless self-excited alternator cancels the traditional carbon brush contact structure, completely eliminating carbon brush wear, spark failure and frequent maintenance problems. Adopting H-grade high-temperature resistant insulation material and IP23 dust-proof and rain-proof protection grade, this 275kVA standby diesel generator can operate stably in complex environments such as outdoor open air, factory dust, high humidity and high temperature. It supports reliable cold start at -15℃, solving the power supply difficulties in northern low-temperature areas and winter construction projects, with far stronger environmental adaptability than ordinary civilian generator sets.

In terms of structural durability and cost performance, SDEC D-series engines have been verified by decades of market application, with mature manufacturing technology and extremely low failure rate. The optimized direct injection fuel system improves combustion efficiency, and the full-load fuel consumption is stably controlled at 55.1L/H, achieving a balanced performance of high power output and practical energy saving. The whole machine adopts a simplified pipeline layout, reducing the risk of oil and water leakage, and greatly improving the overall operational stability. Meanwhile, the universal parts design and complete after-sales system reduce the later operation and maintenance cost for users.

In terms of practical configuration scalability, the genset supports diversified customized upgrades according to actual usage scenarios. Users can install a silent canopy to reduce operating noise, meeting the environmental protection requirements of urban construction and residential surrounding areas. The optional weatherproof enclosure is suitable for long-term outdoor fixed installation. Equipped with ATS automatic transfer switch, the unit can realize unmanned automatic start-stop and mains power switching, while the remote monitoring system supports real-time operating data viewing and fault alarm, greatly improving the intelligence and safety of power guarantee.

3. Main Application Scenarios

Relying on super high load capacity, strong environmental adaptability and stable continuous operation performance, the SDEC 6DTAA8.9-G23 diesel generator set is widely used in heavy industrial production, large-scale engineering construction, commercial public facilities, mining and field emergency power supply fields, becoming the preferred high-power power guarantee equipment for medium and large load scenarios.

Heavy Industrial Production Scenarios: It is widely used as continuous prime power and emergency standby power for large manufacturing factories, mechanical processing workshops, industrial parks and mining enterprises. The 200kW stable prime power output fully meets the long-term operation demand of high-power production lines, mechanical equipment and industrial electrical systems. It can serve as the main power source for off-grid industrial zones and backup power for grid-connected factories, effectively avoiding massive economic losses caused by production shutdown and equipment damage due to sudden power outage.

Large Commercial & Public Service Scenarios: This industrial genset provides core emergency power guarantee for large shopping malls, super high-rise office buildings, star hotels, municipal hospitals and urban public transportation hubs. These key scenarios have zero tolerance for power interruption. When encountering municipal power grid failure, seasonal power rationing or power grid maintenance, the unit can start quickly and switch power supply seamlessly, ensuring the normal operation of elevators, medical precision equipment, fire protection systems, monitoring equipment and office systems, and safeguarding public safety and stable commercial operation.

Large-Scale Engineering Construction Scenarios: It is the mainstream temporary power supply equipment for highway engineering, bridge construction, municipal infrastructure upgrading, water conservancy projects and large outdoor construction sites. With IP23 dust and rain resistance, low-temperature startup performance and strong anti-interference ability, the unit can adapt to harsh outdoor construction environments, providing stable and lasting power support for heavy construction machinery, on-site lighting and temporary living and office facilities.

Field Operation & Emergency Rescue Scenarios: It is perfectly applicable to off-grid power supply for remote field exploration bases, large logistics parks, communication base station clusters and pastoral mining areas. In addition, it can be used as emergency power supply for natural disaster rescue, power grid emergency maintenance and sudden regional power outage accidents, providing reliable and continuous power guarantee for field operations and emergency disposal work.

4. Core Product Purposes

As a high-power heavy-duty industrial diesel generator set, the core purpose of the 6DTAA8.9-G23 SDEC diesel generator is to provide stable, efficient and low-failure full-scenario power guarantee for high-load industrial and engineering scenarios, covering three core functional positioning: off-grid main power supply, grid-connected emergency standby power supply and power peak shaving.

Firstly, it acts as off-grid prime power supply equipment. For remote construction bases, mining areas, field operation teams and industrial zones without complete municipal power grid coverage, the 200kW/250kVA high-power output can be used as the long-term main power source to provide 24-hour uninterrupted power supply for production equipment, living facilities and office systems. Its durable engine structure and stable combustion system ensure long-term continuous operation, solving the power shortage problem of off-grid projects.

Secondly, it undertakes grid-connected emergency standby power supply for key industries and units. For industrial manufacturing enterprises, medical institutions and public service facilities that cannot tolerate power interruption, the genset acts as an important backup power source for the municipal power grid. In case of unexpected power failure, power grid failure or seasonal power rationing, it can quickly take over the full load operation to ensure the uninterrupted operation of core production and service equipment, avoiding safety accidents and huge economic losses caused by power outage.

Thirdly, it serves as an effective power peak shaving device for enterprise power consumption. During the peak period of regional power grid tension and insufficient power supply, the genset can independently bear part of the high-load production power demand, relieve the pressure of enterprise power consumption, avoid production stagnation caused by power grid power limit, and ensure the continuous and stable progress of production and operation tasks.

5. Common FAQ

Q1: What is the practical difference between prime power and standby power of the 6DTAA8.9-G23 generator set?

A1: The 200kW/250kVA prime power is the rated continuous operating power of the genset, supporting 24-hour long-term uninterrupted operation and suitable for daily off-grid main power supply and long-term fixed industrial load operation. The 220kW/275kVA standby power is short-time emergency peak power, which is 10% higher than the prime power. It is only used for temporary emergency power supply after mains power failure and is not allowed to run at full load for a long time. In actual on-site use, it is recommended to control the conventional operating load within 80%-90% of the prime power to reduce engine load and effectively extend the overall service life of the genset.

Q2: What are the actual usage advantages of the brushless self-excited alternator of this SDEC genset?

A2: This 250kVA industrial diesel generator is equipped with a professional brushless self-excited alternator, which has obvious practical advantages over traditional brushed alternators. It has no carbon brush wear, friction spark and contact failure problems during operation, with higher operational safety and lower daily failure rate. Matched with H-grade super heat-resistant insulation and IP23 dust-proof and rain-proof protection, it can adapt to high-temperature, humid and dusty harsh environments. The output voltage and frequency are more stable, which will not cause impact damage to precision instruments and high-power industrial equipment. Meanwhile, it realizes nearly maintenance-free daily operation, greatly saving manual maintenance time and vulnerable part replacement costs.

Q3: What is the fuel consumption level and conventional maintenance cycle of the 6DTAA8.9-G23 genset?

A3: The full-load fuel consumption of the unit is 55.1L/H, which maintains a reasonable energy-saving level among similar 250kVA–275kVA high-load industrial generator sets. In terms of daily maintenance, users only need to regularly check fuel stock, cooling water level, pipeline tightness and unit operating sound. Routine maintenance including engine oil replacement, filter element replacement and radiator dust cleaning is required every 200 operating hours. A comprehensive equipment inspection, component fastening and overall overhaul is recommended every 1000 operating hours. Benefiting from the mature SDEC D-series engine technology and optimized brushless alternator structure, the unit has fewer failure points and lower comprehensive operation and maintenance costs than ordinary high-power gensets.
