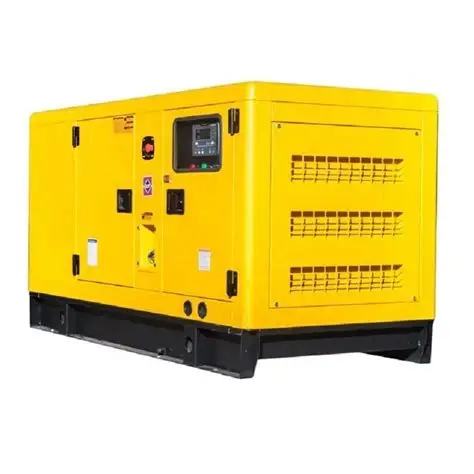

50HZ SDEC 6DTAA8.9-G24 225kVA/180kW Diesel Generator Set

50HZ SDEC  225kVA/180kW Diesel Generator Set

1. Technical Parameter

2. Core Product Features

The SDEC 6DTAA8.9-G24 180kW/225kVA diesel generator set is an upgraded high-power industrial genset from SDEC D-series engine platform. As a widely recognized high-load diesel generator for industrial and engineering use, this 225kVA SDEC diesel generator set adopts optimized turbocharged intercooled technology and integrated lubrication and cooling structure, delivering stronger power reserve, more stable operation and lower failure rate compared with conventional gensets of the same power class.

In terms of power performance, the unit is equipped with a genuine SDEC 6DTAA8.9-G24 professional generator-dedicated engine. The 6-cylinder inline layout and 8.9L large displacement design bring sufficient torque reserve, with a rated prime power of 180kW and a maximum standby power of 200kW. As a high-stability180kW prime power diesel generator, it can withstand long-term full-load operation and frequent load impact, maintaining constant voltage and frequency output without fluctuation or shutdown. It features fast transient load response, which can quickly adapt to sudden load changes in industrial production, ensuring continuous and reliable power supply for high-power equipment.

In terms of structural reliability and environmental adaptability, the whole machine is optimized with reduced external pipeline design, effectively lowering oil leakage, air leakage and water leakage risks, greatly improving overall operational stability. The matched brushless self-excited alternator completely abandons the traditional carbon brush structure, eliminating spark hidden dangers and carbon brush wear faults. With H-grade high-temperature resistant insulation and IP23 dust-proof and rain-proof protection grade, this 250kVA standby diesel generator can work stably in harsh environments such as outdoor open air, factory dust, high humidity and high temperature. It supports normal cold start at -15℃, perfectly adapting to winter low-temperature construction and northern regional power supply scenarios.

In terms of energy efficiency and practical economy, the electronic direct injection fuel system optimizes fuel atomization and combustion efficiency. The full-load fuel consumption is stably controlled at 44.1L/H, achieving a good balance between high power output and energy-saving performance. The D-series engine features low vibration and low noise operation, effectively reducing on-site noise pollution during long-hour operation. Meanwhile, the simplified structural design reduces vulnerable parts, making daily inspection and maintenance more convenient, and greatly cutting long-term operation and maintenance costs for users.

In terms of intelligent and diversified configuration, the genset supports multiple customized upgrades. Users can install a silent canopy to meet noise limit requirements for urban construction and commercial areas, or equip a weatherproof enclosure for long-term outdoor fixed installation. The optional ATS automatic transfer switch realizes unmanned automatic start-stop and mains power switching, while the remote monitoring module supports real-time data viewing and fault alarm, improving the intelligent level of power guarantee.

3. Main Application Scenarios

With high load capacity, strong environmental adaptability and stable continuous operation performance, the SDEC 6DTAA8.9-G24 diesel generator set covers high-load industrial production, large-scale engineering construction, commercial public facilities and emergency power guarantee fields, serving as the core power supply equipment for medium and high power demand scenarios.

Heavy-Duty Industrial Production Scenarios: It is widely used as continuous prime power and emergency standby power for large processing factories, mechanical manufacturing workshops, industrial parks and mining sites. The 180kW stable prime power output fully meets the long-term operation demand of high-power mechanical equipment, production assembly lines and industrial electrical systems. It effectively avoids production suspension, equipment damage and economic losses caused by sudden mains power failure or voltage instability, and is a reliable high-load industrial power supply solution for medium and large enterprises.

Large Commercial & Public Service Scenarios: This industrial genset serves as key backup power for large shopping malls, comprehensive office buildings, star hotels, municipal hospitals and urban public service hubs. These places have strict requirements for power supply continuity and safety. When municipal power grid fails or undergoes power rationing, the genset can start and switch power supply in a short time, ensuring the normal operation of elevators, medical precision instruments, fire protection systems, monitoring equipment and office systems, and guaranteeing public safety and stable commercial operation.

Large-Scale Engineering Construction Scenarios: It is the preferred temporary power supply for highway reconstruction, bridge engineering, municipal infrastructure upgrading, water conservancy projects and large outdoor construction sites. Relying on IP23 dust and rain resistance, low-temperature startup performance and strong anti-load impact capability, the unit can adapt to complex and harsh outdoor construction environments, providing stable and lasting power support for heavy construction machinery, on-site lighting and temporary living and office equipment.

Field Operation & Emergency Rescue Scenarios: It is also applicable to off-grid power supply for remote field exploration bases, large logistics parks, communication base station clusters and pastoral mining areas. In addition, it can be used as emergency power supply for disaster rescue, power grid maintenance and sudden power outage accidents, providing reliable power guarantee for field operations and emergency disposal work with its long-duration stable operation capability.

4. Core Product Purposes

As a high-performance medium and large power industrial diesel generator set, the core purpose of the 6DTAA8.9-G24 SDEC diesel generator is to provide stable, efficient and low-failure full-scenario power guarantee for high-load industrial and engineering scenarios, covering three core usage modes: off-grid main power supply, grid-connected emergency standby power supply and power peak regulation.

Firstly, it acts as off-grid prime power supply equipment. For remote construction bases, field operation teams, mining areas and industrial zones without complete municipal power grid coverage, the 180kW/225kVA high-power output can be used as the long-term main power source to provide 24-hour uninterrupted power supply for production equipment, living facilities and office systems. Its optimized combustion system and durable engine structure ensure long-term stable operation and reduce comprehensive power consumption costs for off-grid projects.

Secondly, it undertakes grid-connected emergency standby power supply for key units. For industrial enterprises, medical institutions and public facilities that cannot tolerate power interruption, the genset acts as a reliable backup power source for the municipal power grid. In case of mains power failure, seasonal power rationing or power grid maintenance, it can quickly take over the full load to ensure the uninterrupted operation of core production and service equipment, avoiding safety accidents and huge economic losses caused by power outage.

Thirdly, it serves as an effective power peak shaving device. During the peak period of regional power grid tension and power supply shortage, the genset can independently bear part of the high-load production power demand, relieve enterprise power consumption pressure, avoid production shutdown caused by power grid power limit, and ensure the continuous and stable progress of production and operation tasks.

5. Common FAQ

Q1: What is the actual usage difference between prime power and standby power of the 6DTAA8.9-G24 generator set?

A1: The 180kW/225kVA prime power is the rated continuous operating power of the genset, supporting 24-hour long-term uninterrupted operation and suitable for daily off-grid main power supply and long-term fixed load operation. The 200kW/250kVA standby power is short-time emergency peak power, which is 10% higher than the prime power, only used for emergency power supply after mains power failure and not allowed for long-term full-load operation. In actual on-site use, it is recommended to control the conventional operating load within 80%-90% of the prime power to reduce engine load and extend the overall service life of the genset.

Q2: What are the practical advantages of the brushless self-excited alternator equipped on this SDEC genset?

A2: Different from traditional brushed alternators, the brushless self-excited alternator adopted by this 225kVA diesel generator has no carbon brush wear, friction spark and frequent contact failure problems during operation, with higher operational safety and lower failure rate. Matched with H-grade super heat-resistant insulation and IP23 protection standard, it can resist high temperature, dust and moisture erosion effectively. The output voltage and frequency are more stable, which will not cause impact damage to precision instruments and high-power industrial equipment. Meanwhile, it realizes nearly maintenance-free daily operation, greatly saving manual maintenance time and replacement cost of vulnerable parts.

Q3: What is the fuel consumption level and daily maintenance standard of the 6DTAA8.9-G24 genset?

A3: The full-load fuel consumption of the unit is 44.1L/H, which maintains a competitive energy-saving level among similar 225kVA–250kVA high-load industrial generator sets. In terms of maintenance, daily routine inspection only needs to check fuel volume, cooling water level, pipeline tightness and unit operating sound. Routine maintenance including engine oil replacement, filter element replacement and radiator dust cleaning is required every 200 operating hours. A comprehensive equipment inspection, fastening and overall overhaul is recommended every 1000 operating hours. Thanks to the optimized pipeline structure and mature SDEC D-series engine technology, the unit has fewer failure points and lower comprehensive operation and maintenance costs than ordinary high-power gensets.
