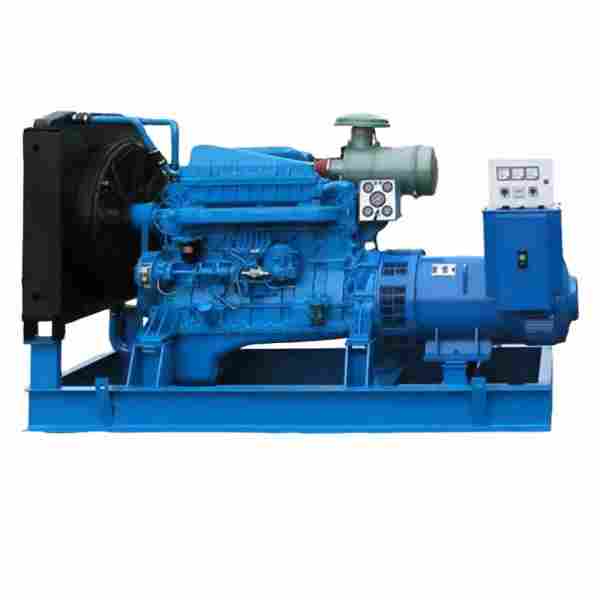

50Hz 1200kW/1500kVA Weichai 12M33D1450E310 Diesel Generator Set

50Hz  Weichai 1200kW/1500kVA Diesel Generator Set

1. Complete Technical Parameter Table

This table systematically sorts out the standard configuration and core technical indicators of the Weichai 12M33D1450E310 diesel generator set, including unit overall parameters, engine parameters, alternator parameters and universal operating parameters, covering all conventional indicators required for industrial selection and engineering installation.

2. Product Features of Weichai 12M33D1450E310 Diesel Generator Set

As a high-power industrial diesel generator set launched based on Weichai M33 high-end engine platform, the 1200kW/1500kVA Weichai diesel generator set has outstanding comprehensive performance in power stability, energy saving and environmental protection, operational durability and later maintenance, and is a mainstream high-power power supply equipment in the industrial power generation industry.

2.1 Stable and Efficient Power Output

Equipped with original Weichai 12M33D1450E310 V12 turbocharged intercooled engine, this industrial diesel generator set adopts electronically controlled high-pressure common rail combustion technology, which achieves full combustion of fuel and effectively improves power conversion efficiency. The prime power stably reaches 1200kW (1500kVA), and the standby power can hit 1320kW (1650kVA), which can cope with instantaneous load surge and meet long-term continuous full-load operation requirements. The matched brushless self-excited alternator features fast voltage response and high output precision, effectively avoiding voltage and frequency fluctuation during power supply, ensuring stable power quality for precision industrial equipment.

2.2 Excellent Environmental Adaptability and Durability

The whole machine adopts H-class high-temperature resistant insulation and IP23 dustproof and waterproof protection grade, which can operate stably in high temperature, high humidity and dusty harsh industrial environments for a long time. The engine is forged with high-strength crankshaft and cast iron cylinder block, equipped with replaceable wet cylinder liner structure, with strong impact resistance and wear resistance. Adhering to Weichai's mature industrial manufacturing technology, the unit has low failure rate and strong continuous operation capability, fully adapting to 24-hour uninterrupted power supply scenarios of large industrial projects.

2.3 Energy-saving and Low-consumption, Environmentally Friendly Operation

Optimized fuel injection calibration and air intake structure design enable the 1500kVA diesel generator set to control the full-load fuel consumption at 315L/H, with excellent full-load and partial-load fuel economy. The power core meets China non-road Stage III emission standards, with low exhaust smoke and low pollutant emission, which complies with modern industrial environmental protection policies. Meanwhile, the unit is equipped with a professional silencer and vibration damping system, which effectively reduces operating noise and vibration, improving the on-site operation environment.

2.4 Convenient Maintenance and High Cost Performance

Weichai's nationwide after-sales service network provides reliable technical support and spare parts supply for this 1200kW standby diesel generator set. The modular structural design simplifies daily inspection and maintenance procedures, reduces later operation and maintenance costs. Compared with imported high-power generator sets, this Weichai diesel genset has lower purchase cost and shorter maintenance cycle, with outstanding overall cost performance in the field of industrial emergency power supply and continuous power supply.

3. Application Scenarios

With 1200kW prime power and 1650kVA ultra-high standby power, this heavy-duty diesel generator set is widely used in large-scale industrial and commercial scenarios that require high power stability and high reliability, covering emergency standby power supply, main power supply and backup power supply for key projects.

3.1 Large Industrial Manufacturing Plants

It is suitable for heavy industrial enterprises such as chemical plants, metallurgical factories, mining enterprises and machinery processing factories. These scenarios have high power consumption and strict requirements for power supply continuity. Once the municipal power grid fails, sudden power failure will cause huge economic losses and safety hazards. The 1500kVA Weichai diesel generator set can quickly switch on power supply to ensure the normal operation of production lines, large mechanical equipment and safety protection systems.

3.2 Infrastructure and Engineering Projects

It is the preferred power supply equipment for large construction sites, highway and railway engineering, bridge construction and municipal key projects. Many outdoor engineering projects are located in areas without complete municipal power grid coverage, and rely on high-power diesel gensets as the main power source. The strong environmental adaptability of the 12M33D1450E310 generator set enables it to operate stably in complex outdoor environments such as field and high altitude, meeting the long-term power demand of engineering construction.

3.3 Commercial Complex and Public Facilities

Large shopping malls, office buildings, convention centers, airports, railway stations and other public places have dense power equipment and high requirements for power supply safety. This high-power standby diesel generator set can be used as emergency backup power to ensure the normal operation of fire protection systems, elevator equipment, lighting systems and monitoring systems during power outages, avoiding public safety accidents and property losses.

3.4 Data Centers and Communication Base Stations

Smart data centers and large-scale communication hub stations require zero power interruption. The stable output and fast response characteristics of Weichai 1200kW diesel generator set can provide reliable emergency power guarantee for server equipment, communication transmission equipment and UPS systems, prevent data loss and network paralysis caused by power failure, and ensure the stable operation of information transmission systems.

3.5 New Energy and Special Industry Scenarios

It is also widely used in new energy power stations, pharmaceutical factories, food processing enterprises and other special industries. For scenarios with unstable new energy power generation such as wind power and photovoltaic power stations, the unit can be used as supplementary standby power to balance grid power supply; for pharmaceutical and food industries with strict production environment requirements, it ensures continuous and stable power supply for sterile production and precision processing equipment.

4. Core Purposes

The core value of the Weichai 12M33D1450E310 1200kW/1500kVA diesel generator set is to provide high-reliability continuous power supply and instant emergency standby power support for high-power industrial and commercial scenarios, solving the problems of municipal power grid instability, sudden power failure and insufficient on-site power supply capacity, and guaranteeing the safe and stable operation of various key equipment and projects.

First of all, it serves as long-term prime power supply for off-grid engineering sites and remote industrial areas without municipal power grid support, providing stable 50Hz frequency standard power for daily production and construction, and meeting the continuous power consumption demand of large-scale mechanical and electrical equipment.

Secondly, it acts as emergency standby power supply for grid-connected industrial and commercial projects. When the municipal power grid fails, trips or is overhauled, the unit can start quickly and switch power supply automatically, effectively avoiding production shutdown, equipment damage, data loss and safety accidents caused by power interruption, and maximizing the economic benefit guarantee for enterprises.

In addition, this high-power diesel genset can also be used as peak-shaving power supply for industrial parks and large enterprises. During the peak period of municipal power consumption and high electricity price, it can replace grid power for power supply, effectively reducing enterprise power consumption costs and realizing energy-saving and cost-reducing operation. At the same time, its low-emission and low-consumption advantages also help enterprises meet environmental protection assessment standards and realize green production and operation.

5. Frequently Asked Questions (FAQ)

Q1: What is the difference between prime power and standby power of the 12M33D1450E310 generator set?

The prime power (1200kW/1500kVA) is the long-term continuous operating power of the unit, supporting 24-hour uninterrupted operation and long-term full-load power supply, which is suitable for daily main power supply scenarios. The standby power (1320kW/1650kVA) is the emergency peak power, which allows short-term overload operation and is only used for sudden power failure emergency backup scenarios. It is not recommended to operate under standby power for a long time, so as to avoid accelerating equipment wear and affecting service life.

Q2: What are the applicable working environments of this Weichai 1500kVA diesel generator set?

This industrial generator set is designed for heavy-duty industrial scenarios, with strong environmental adaptability. It can work stably in the temperature range of -20℃ to 45℃, and adapt to high humidity, dusty, field and high-altitude harsh environments. The IP23 protection grade can effectively prevent dust and splashing water from invading the equipment, and the H-class insulation structure ensures stable operation under high-temperature load, which fully meets the environmental requirements of industrial factories, outdoor engineering and public facilities.

Q3: How to control the fuel consumption of the 1200kW diesel generator set in daily use?

The full-load fuel consumption of the unit is 315L/H. In daily operation, reasonably controlling the load rate is the key to energy saving. It is recommended to keep the operating load between 50%-80%, which can give full play to the fuel-saving advantage of the electronically controlled common rail system. In addition, regular maintenance such as replacing filter elements, checking fuel injection system and cleaning radiator can ensure the optimal operating state of the unit and reduce invalid fuel consumption. Avoid frequent no-load operation and long-term full-load overload operation to effectively control comprehensive fuel consumption.
