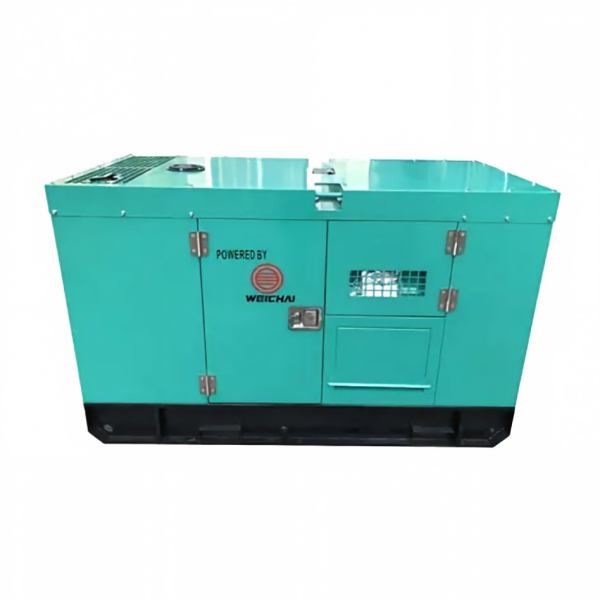

50Hz 640kW/800kVA Weichai 12M26D792E200 Diesel Generator Set

50Hz Weichai 640kW/800kVA  Diesel Generator Set

1. Complete Technical Parameter Table

The following table summarizes the full technical specifications of the 50Hz 640kW/800kVA Weichai 12M26D792E200 diesel generator set, covering unit overall parameters, diesel engine parameters, alternator parameters and conventional operating parameters, which supports industrial power supply engineering selection and daily operation reference.

2. Product Features of Weichai 12M26D792E200 Diesel Generator Set

This 640kW/800kVA Weichai diesel generator set is equipped with the original Weichai 12M26D792E200 industrial diesel engine, which is a high-power land-based power generation equipment tailored for continuous industrial power supply scenarios. It integrates Weichai’s mature engine manufacturing technology and optimized alternator matching design, with outstanding stability, economy and durability, and is one of the most cost-effective 800kVA diesel generator sets in the medium and high-power power generation market.

First of all, the power output is stable and reliable. The matched 12-cylinder V-type four-stroke engine adopts turbocharged intercooled technology, which effectively improves air intake efficiency and combustion sufficiency. The prime power of 640kW and standby power of 704kW can maintain continuous stable operation under long-term full-load and heavy-load conditions. Equipped with brushless self-excited alternator and AVR automatic voltage regulation system, the equipment can effectively suppress voltage and frequency fluctuation, ensuring 50Hz standard frequency power output, which fully meets the power supply requirements of precision industrial equipment and large electrical units.

Secondly, it has excellent fuel economy and low operating cost. The full-load fuel consumption is only 173.5L/H. Through optimized compression ratio and fuel injection calibration technology, the fuel utilization rate is significantly improved compared with similar high-power generator sets. Meanwhile, the electronic speed governing system can intelligently adjust the engine speed according to the actual load, avoiding unnecessary fuel waste in no-load and light-load operation, greatly reducing the long-term operating fuel cost of the equipment.

In terms of safety and durability, the alternator adopts H-grade ultra-high temperature resistant insulation materials, which can withstand long-term high-temperature operation and harsh working environment temperature changes, with strong insulation and anti-aging ability. The IP23 protection grade can effectively block dust, rain splash and small particle impurities from entering the equipment interior, protecting the internal circuit and mechanical structure from damage. The closed water cooling system ensures uniform heat dissipation of the 12-cylinder high-power engine, avoids overheating failure during long-hour continuous operation, and greatly extends the service life of the unit.

In addition, the equipment has convenient operation and low maintenance difficulty. The 24V DC electric start system realizes one-key quick start, no complicated manual operation is required. The brushless excitation design cancels the traditional carbon brush structure, eliminates carbon brush wear, spark failure and other common faults, reduces daily maintenance frequency and maintenance cost, and is more suitable for unattended long-term continuous power supply scenarios. The overall structural layout is compact and reasonable, with small floor space, convenient for on-site installation, commissioning and later daily inspection and maintenance.

3. Application Scenarios

As a high-performance 50Hz medium and high-power diesel generator set, the 640kW/800kVA Weichai 12M26D792E200 generator set is widely used in various scenarios requiring long-term continuous power supply and emergency standby power supply, covering industrial production, infrastructure construction, commercial supporting, public facilities and other fields, and can adapt to various complex working environments.

Industrial Production Scenarios: It is the preferred power supply equipment for large factories, processing plants, mining enterprises and industrial parks. For heavy industrial equipment such as production assembly lines, mechanical processing equipment and mining machinery that require stable power support for a long time, this 800kVA diesel generator set can be used as a main power supply or backup power supply to avoid production shutdown losses caused by grid power failure. It is especially suitable for industrial production scenarios with high power demand and high requirements for power supply stability.

Infrastructure & Engineering Construction Scenarios: It is widely used for power supply in road and bridge engineering, municipal construction, railway construction, water conservancy projects and field construction sites. Most field construction sites lack stable grid power, and the 640kW high-power stable output can meet the simultaneous power consumption of multiple construction machinery, engineering equipment and on-site living facilities. The compact body and strong environmental adaptability can cope with outdoor dust, temperature difference and other harsh construction environment conditions.

Commercial & Public Facility Scenarios: It is suitable for shopping malls, large supermarkets, office buildings, hotels, hospitals, schools and other public and commercial places. These scenarios have high requirements for power supply continuity, and sudden power failure will cause large economic losses and public impact. This Weichai diesel generator set can be used as an emergency standby power supply, quickly start up in case of grid power failure, ensure the normal operation of lighting, elevator, ventilation, medical equipment and key office equipment, and guarantee the normal operation of public facilities and commercial places.

Special Industry & Remote Area Scenarios: It can be used for power supply of communication base stations, data centers, scenic area supporting facilities, island operation and remote pastoral areas without grid coverage. For special industries such as communication and data centers that require 24-hour uninterrupted power supply, the low failure rate and long continuous operation cycle of the unit can effectively ensure the stable operation of core equipment and avoid data loss and communication interruption caused by power failure.

4. Core Purpose

The core purpose of the Weichai 12M26D792E200 640kW/800kVA diesel generator set is to provide stable, efficient and reliable uninterrupted power guarantee for medium and high-power power consumption scenarios, and it mainly undertakes two core functions of long-term main power supply and emergency standby power supply.

In off-grid and power-deficient areas without municipal grid support, the unit serves as the main power supply equipment, providing continuous 50Hz standard industrial power for production, operation and living facilities. Relying on its strong load capacity and stable power output, it meets the all-weather power demand of industrial production, field engineering and remote area operation, and solves the problem of insufficient power supply in off-grid scenarios.

In urban grid-covered areas with stable power supply, the unit is positioned as emergency backup power supply equipment. When the municipal grid fails, cuts off power or has voltage fluctuation, the generator set can start quickly and switch power supply automatically, ensuring the uninterrupted operation of key equipment and core links. It effectively avoids production shutdown, equipment damage, data loss and safety accidents caused by sudden power failure, and reduces economic losses and operation risks for enterprises and public institutions.

At the same time, relying on the advantages of low fuel consumption, low failure rate and easy maintenance, the unit can realize long-term unattended operation, reduce manual operation and maintenance costs, and provide economical and durable power supply solutions for various medium and high-power power consumption scenarios. It is a mainstream high-power power generation equipment integrating practicality, economy and stability in the current power generation equipment market.

5. FAQ (Common Frequently Asked Questions)

Q1: What is the difference between prime power and standby power of this 800kVA Weichai generator set?

Prime power (640kW/800kVA) refers to the long-term continuous usable power of the generator set, which supports long-term stable operation under 100% rated load and is suitable for daily continuous power supply as the main power source. Standby power (704kW/880kVA) is the peak emergency power, which is 10% higher than the prime power. It is only used for short-term emergency power supply in case of grid power failure or sudden load increase, and cannot operate under standby load for a long time. In actual use, it is recommended to take prime power as the standard for long-term power supply matching to ensure the service life and stable operation of the unit.

Q2: What are the key advantages of Weichai 12M26D792E200 engine compared with other similar diesel engines?

The 12M26D792E200 engine is a special power generation engine independently developed by Weichai for high-power generator sets. It adopts V-type 12-cylinder four-stroke structure and turbocharged intercooled technology, with sufficient power reserve and strong load impact resistance. Compared with ordinary similar engines, it has higher combustion efficiency, so the full-load fuel consumption is lower under the same power level. In addition, it is matched with H-grade insulation brushless alternator and IP23 protection design, with better high temperature resistance and environmental adaptability. The brushless structure reduces failure points, and the overall operation stability and later maintenance convenience are significantly better than ordinary excitation generator sets.

Q3: What daily maintenance work is required for this 640kW diesel generator set?

The daily maintenance of the unit is simple and controllable. First, check the engine oil level, cooling water level and diesel oil quantity before startup every day to ensure sufficient operating materials. Second, regularly clean the dust and impurities on the unit surface and heat dissipation system to avoid affecting heat dissipation and causing overheating failure. Third, regularly inspect the circuit connection of the alternator and control system to ensure firm connection and no aging and damage. Fourth, replace engine oil, filter elements and coolant regularly according to the operating hours. Benefiting from the brushless excitation design, the unit does not need to replace carbon brushes regularly, which greatly reduces the daily maintenance workload compared with traditional generator sets.
