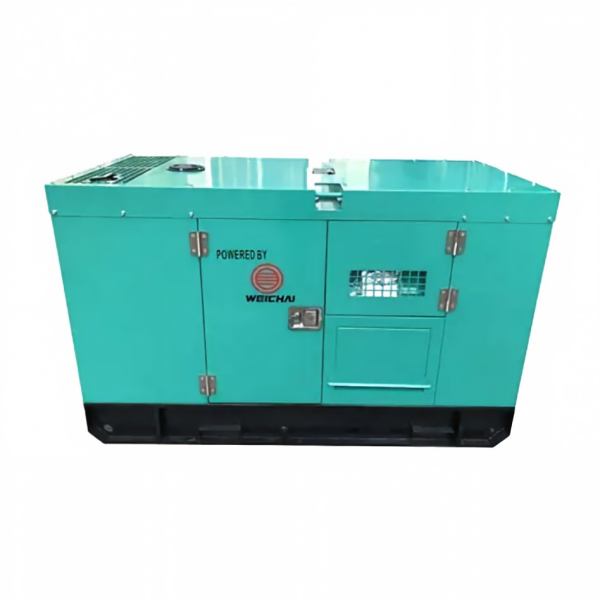

50HZ Weichai 16M33D1680E310 1400kW/1750kVA Diesel Generator Set

50HZ Weichai  1400kW/1750kVA Diesel Generator Set

1. Complete Technical Parameter Table

This chapter sorts out the original factory standard parameters and universal industry configuration parameters of the Weichai 16M33D1680E310 diesel generator set, covering unit overall parameters, engine parameters, alternator parameters and operating standard parameters, which fully reflects the operating performance of the 50Hz industrial heavy-duty generator set.

2. Core Product Features

As a high-power industrial diesel generator set launched based on Weichai M33 high-end power platform, the 1400kW/1750kVA 16M33D1680E310 generator set has outstanding advantages in power stability, operational reliability and energy-saving performance, and is a mainstream high-power backup and continuous power supply equipment in the industrial power industry.

2.1 Stable and Durable Power Output

Equipped with the original Weichai 16M33D1680E310 V16 four-stroke diesel engine, this heavy-duty generator set adopts turbocharged intercooling technology, with sufficient power reserve and strong load capacity. The prime power reaches 1400kW and the standby power is up to 1520kW, which can cope with instantaneous load surge and long-term full-load stable operation. Matched with brushless self-excited alternator, it avoids carbon brush wear and failure problems, effectively reduces voltage fluctuation, and ensures three-phase voltage balance output. The Class H high-temperature resistant insulation structure greatly improves the equipment's overload resistance and high-temperature working adaptability, suitable for long-term continuous power supply in harsh industrial environments.

2.2 Excellent Energy-Saving and Low-Consumption Performance

The unit adopts electronically controlled high-pressure common rail fuel injection system, with precise fuel atomization and sufficient combustion, realizing low fuel consumption and high efficiency operation. The full-load fuel consumption is only 367.2L/H, which has obvious energy-saving advantages compared with similar high-power generator sets. While ensuring strong power performance, it effectively reduces the daily operation cost of enterprises, and solves the problem of high energy consumption of traditional high-power diesel generators.

2.3 High Safety and Environmental Adaptability

The whole machine adopts IP23 protection grade design, which can effectively prevent dust, rain splash and foreign object intrusion, adapting to outdoor open-air workshops, construction sites and other complex working conditions. Compliant with China Non-Road Stage III emission standards, it has low exhaust emissions, low noise and low vibration during operation, meeting the environmental protection assessment requirements of industrial parks, municipal engineering and other scenarios. The water-cooled closed circulation cooling system ensures stable temperature control during long-hour operation, avoiding equipment overheating failure and extending the service life of the unit.

2.4 Low Maintenance and High Cost Performance

The brushless alternator design eliminates the need for frequent carbon brush replacement and maintenance, greatly reducing later maintenance workload and maintenance costs. Weichai's mature M33 platform technology has stable failure rate and strong part versatility, with perfect after-sales service and spare parts supply system nationwide. The unit supports manual start and optional ATS automatic switching function, which can realize unattended automatic power supply switching when mains power fails, improving the intelligent operation level of power supply system.

3. Main Application Scenarios

This 50Hz 1400kW industrial diesel generator set is specially designed for high-power power demand scenarios, widely used in industrial production, infrastructure construction, data communication, municipal engineering and other fields, and can be used as both emergency standby power and continuous main power supply.

3.1 Industrial Manufacturing Field

It is suitable for large chemical plants, metallurgical factories, food processing plants, mechanical processing industrial parks and other large-scale production enterprises. For industrial production lines that cannot be shut down for a long time, the unit can provide continuous stable main power supply or emergency backup power to avoid production shutdown losses caused by mains power outage, effectively guaranteeing the continuity of industrial production operations.

3.2 Data Center and Communication Industry

As the core emergency power supply equipment for large cloud data centers, 5G communication base station clusters and communication hub stations, the 1750kVA diesel generator set features stable voltage output and low harmonic interference, which can protect precision electronic equipment and server systems from power fluctuation damage. It can quickly start up and switch power supply in case of mains power failure, ensuring uninterrupted operation of data storage, network transmission and communication services.

3.3 Infrastructure and Municipal Engineering

Widely used in highway and railway engineering construction, urban subway construction, municipal water conservancy projects, bridge engineering and other large-scale infrastructure projects. The equipment adapts to outdoor harsh construction environments, with strong wind resistance, dust resistance and temperature adaptability, which can provide reliable mobile power support for large construction machinery and on-site construction equipment.

3.4 Commercial and Public Service Facilities

It can be used as standby power supply for large shopping malls, high-star hotels, hospital central power supply systems, exhibition centers and other public buildings. In case of sudden power outage, it can quickly supply power to ensure the normal operation of medical equipment, fire protection systems, elevator equipment and public service facilities, and guarantee the safety of personnel and property.

3.5 Special Industry Power Guarantee

It is also applicable to emergency power supply for mining enterprises, oil field operation areas, offshore auxiliary power equipment, cold storage logistics parks and other special scenarios. Its strong overload capacity and long-hour continuous operation performance can fully meet the long-term power demand of special industrial sites with poor power grid stability.

4. Core Product Purposes

Positioned as a high-power industrial power guarantee equipment, the Weichai 16M33D1680E310 diesel generator set mainly solves the power supply stability problem of high-load industrial scenarios, and its core purposes cover emergency power backup, continuous power supply, power grid auxiliary support and mobile power supply.

4.1 Emergency Standby Power Supply

This is the most mainstream usage of the unit. In scenarios dependent on municipal mains power, once the mains power fails, surges or is overhauled, the generator set can start quickly and automatically switch power supply to avoid equipment shutdown, data loss and production stagnation caused by power outage, providing reliable emergency power guarantee for high-power power consumption units.

4.2 Long-Term Continuous Main Power Supply

For remote mining areas, oil fields, field construction sites and areas with unstable or insufficient municipal power grid capacity, the 1400kW prime power can be used as the main power supply equipment for long-term continuous operation. With low fuel consumption and stable performance, it can replace municipal power grid to provide long-term stable power support for on-site production and living equipment.

4.3 Power Load Peak Shaving and Grid Stabilization

In industrial parks and large factories with large power load fluctuation, the unit can be used for peak load shaving. It starts to supply power during the peak period of industrial power consumption to reduce the load pressure of municipal power grid, avoid power limitation and tripping problems, and stabilize the on-site power supply voltage and frequency, ensuring the safe operation of precision production equipment.

4.4 Mobile and Temporary Power Support

The unit has strong environmental adaptability and flexible deployment performance, which can be used as temporary mobile power supply for large-scale engineering construction, emergency rescue and disaster relief, outdoor large-scale activities and other scenarios, solving the problem of no power or insufficient power supply in temporary operation scenarios.

5. Frequently Asked Questions (FAQ)

Q1: What is the difference between prime power and standby power of 16M33D1680E310 generator set?

Prime power (1400kW/1750kVA) refers to the long-term continuous operable rated power of the unit, which supports 24-hour uninterrupted operation and occasional 10% overload operation, suitable for long-term main power supply scenarios. Standby power (1520kW/1900kVA) is the emergency peak power, which is only used for short-time power supply in case of mains power failure. It cannot operate continuously for a long time, and is mainly applicable to emergency standby scenarios. Users can select the operation mode according to actual power demand.

Q2: What are the advantages of brushless self-excited alternator with Class H insulation and IP23 protection?

The brushless self-excited structure eliminates carbon brush friction and wear, reduces equipment failure points, and realizes maintenance-free operation for a long time. Class H insulation is the highest grade of industrial insulation, which can withstand high temperature operation and effectively avoid insulation aging and breakdown. IP23 protection grade can prevent solid foreign objects larger than 12mm and rain splash from entering the equipment, which is suitable for indoor workshop and outdoor open-air installation, and greatly improves the environmental adaptability and service life of the generator set.

Q3: Is the 367.2L/H fuel consumption of the unit fixed? How to reduce operating fuel consumption?

367.2L/H is the standard fuel consumption data under 100% full-load operation. The actual fuel consumption will decrease with the reduction of load rate, and the fuel consumption is the lowest when operating under 50%-70% economic load. To reduce daily operating fuel consumption, users can avoid long-term full-load and overload operation, regularly maintain the filter element and fuel injection system, keep the unit running at a constant speed, and match the power load reasonably, which can effectively improve fuel utilization rate and reduce operating costs.
