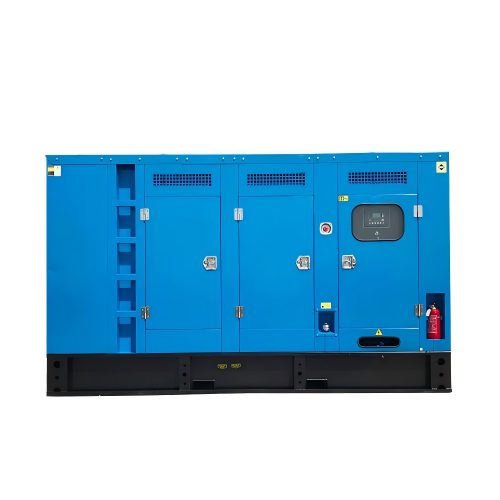

50HZ Yuchai YC4V45Z-D20 24kW/30kVA Diesel Generator Set

50HZ Yuchai   24kW/30kVA Diesel Generator Set

1. Complete Technical Parameter Table

The following table sorts out the full standard technical parameters of YUCHAI YC4V45Z-D20 diesel generator set, including power parameters, engine data, alternator configuration, operating parameters and industry common specifications, covering all core and conventional configuration indicators of the unit.

2. Product Features

This Yuchai YC4V45Z-D20 24kW/30kVA diesel generator set is a high-efficiency and low-consumption small and medium-sized power generation equipment independently developed by Yuchai Power, which is widely recognized in the market as a reliable emergency power supply and continuous power generation unit. Different from ordinary generator sets, this 30kVA diesel generator adopts a mature four-cylinder water-cooled engine structure, with stable power output and strong environmental adaptability, solving the problems of unstable voltage and high failure rate of small generator sets in complex working conditions.

In terms of power performance, the unit has a prime power of 24kW and a standby power of 26.4kW, with sufficient power reserve, which can meet the long-term continuous power demand of conventional loads and cope with instantaneous power surge of equipment. Equipped with a brushless self-excited alternator and AVR automatic voltage regulation system, the 50Hz fixed-frequency output ensures three-phase voltage balance, no voltage flicker, and effectively protects precision electrical equipment from damage caused by unstable current. The H-grade insulation and IP23 protection grade greatly improve the unit's dust-proof, rain-proof and high-temperature resistance, making it suitable for outdoor and harsh indoor working environments.

Energy-saving and low consumption is the core advantage of this Yuchai diesel generator set. The optimized direct-injection combustion chamber design and electronic fuel supply control technology keep the full-load fuel consumption stable at 8.1L/H, with lower operating costs compared with generator sets of the same power level. The whole machine adopts a reinforced body structure and integrated cylinder head water outlet design, which reduces pipeline failure points and improves overall sealing and operational reliability. Meanwhile, the DC24V electric start system supports quick start in low temperature and dry environments, avoiding the problem of difficult start-up of traditional generators.

In terms of daily maintenance and safety, the unit is equipped with a complete four-protection system, which can automatically alarm and shut down in case of overload, high temperature, low oil pressure and short circuit, effectively avoiding equipment burnout and safety accidents. The fully copper winding alternator has strong corrosion resistance and long service life, with low heat generation during long-term operation. The reserved forklift holes at the bottom of the unit are convenient for handling and displacement, realizing flexible mobile power supply, which is very suitable for temporary power consumption scenarios. As a hot-selling small industrial diesel generator set, it has the characteristics of low failure rate, easy maintenance and high cost performance, and is the preferred power equipment for civilian and small industrial standby power supply.

3. Application Scenarios

Relying on stable power output, low energy consumption and strong adaptability, the Yuchai 24kW/30kVA diesel generator set covers multiple scenarios such as civilian backup power, industrial temporary power, outdoor mobile power and engineering emergency power, and is widely used in various fields that require continuous and stable power supply.

3.1 Civil Commercial Backup Power

It is suitable for shopping malls, supermarkets, community property, office buildings, hotels and catering venues. When the municipal power grid is cut off or powered off unexpectedly, the unit can be quickly started to supply power for lighting, air conditioning, monitoring systems and office equipment, avoiding economic losses and operational stagnation caused by power outages. The low-noise operation design can adapt to urban commercial environments and will not cause noise interference to the surrounding environment.

3.2 Construction Engineering Temporary Power

As a common temporary power supply for construction sites, road construction and municipal engineering projects, this 30kVA diesel generator can supply power for small construction machinery, welding equipment, on-site lighting and temporary living electricity for workers. Its mobile and portable design adapts to frequent site relocation, and the stable power output ensures the normal operation of construction equipment and improves construction efficiency.

3.3 Outdoor Field Operation Power Supply

It is perfectly applicable for field exploration, geological survey, outdoor drone operation, forest protection and field rescue work. In remote areas without municipal power grid coverage, the unit can provide long-term stable mobile power support for field equipment, solving the power shortage problem of outdoor operation teams. The water-cooled heat dissipation structure ensures stable operation in high-temperature field environments.

3.4 Industrial and Special Scenario Power Supply

It can be used as standby power for small factories, processing workshops, cold storage and breeding farms. For production and breeding equipment that cannot be powered off for a long time, the unit can quickly switch to supply power to prevent product loss and breeding casualties caused by power outages. In addition, it is also suitable for emergency power supply of communication base stations, monitoring rooms and small power distribution rooms, providing reliable power guarantee for basic equipment operation.

4. Core Purposes

The core purpose of the Yuchai YC4V45Z-D20 24kW/30kVA diesel generator set is to provide stable emergency standby power and reliable temporary mobile power for various scenarios, solve the power supply problems of grid power failure and off-grid operation, and ensure the continuous and safe operation of electrical equipment. It is a core supporting equipment for civilian life, industrial production and engineering construction power guarantee.

First of all, it undertakes the emergency power guarantee function. As a mainstream standby diesel generator set, it can realize seamless power switching after municipal power failure, maintain the continuous operation of key equipment, and avoid safety risks and economic losses caused by sudden power outages. Its 24kW prime power and 26.4kW standby power can fully cover the load demand of small and medium-sized key electrical equipment, meeting the daily standby power demand of most civilian and small industrial scenarios.

Secondly, it provides stable off-grid mobile power support. In outdoor field operations, remote construction and other scenarios without grid power coverage, the unit acts as an independent power generation system to provide continuous 50Hz stable frequency and 380V three-phase power supply for construction equipment, detection instruments and living electrical equipment, solving the power bottleneck of off-grid operation.

In addition, the low fuel consumption design of 8.1L/H full-load operation makes it realize low-cost continuous power generation. Compared with similar generator sets, it can effectively reduce the daily operating fuel cost, with higher economic benefit in long-term standby and frequent power generation scenarios. At the same time, the high-protection and high-insulation design reduces equipment failure rate and later maintenance costs, realizing long-term stable and low-cost power supply.

Finally, as a high-cost-performance Yuchai diesel generator, it fills the market gap of small and medium-power power generation equipment, meeting the customized power demand of small enterprises, individual industrial and commercial households, and engineering teams, and is one of the most widely used general-purpose power generation equipment in the field of small industrial power supply.

5. FAQ (Common Questions)

Q1: What is the actual fuel consumption of the YC4V45Z-D20 generator set under different loads?

A1: The official fixed full-load (100% load) fuel consumption of this Yuchai 30kVA diesel generator set is 8.1L/H. In actual use, the fuel consumption will decrease with the reduction of the load. Under 50% medium load, the fuel consumption is about 4.5-5L/H, and under 75% conventional load, the fuel consumption is about 6.2-6.8L/H. The unit adopts optimized fuel injection and combustion technology, with lower fuel consumption than most generator sets of the same power, and the actual operating fuel consumption is stable without excessive fuel consumption, which is very suitable for long-term standby and intermittent power generation.

Q2: What are the advantages of brushless self-excited alternator compared with brushed generator?

A2: This Yuchai generator set is equipped with brushless self-excited alternator, which has obvious advantages over traditional brushed generators. First, it has no carbon brush wear problem, zero wearing parts in daily operation, lower failure rate and longer service life, reducing later maintenance frequency and cost. Second, it matches AVR automatic voltage regulation system, with more stable voltage output, no current fluctuation, and better protection for precision electrical equipment. Third, the fully enclosed brushless structure has better dust-proof and anti-interference ability, adapting to harsh working environments such as construction sites and fields, and the H-grade insulation further improves the high-temperature resistance of the alternator.

Q3: What working environment and starting conditions are suitable for this 24kW/30kVA generator set?

A3: The YC4V45Z-D20 diesel generator set has strong environmental adaptability, with a standard working temperature range of -15℃ to 45℃. It adopts DC24V electric start mode, which can start normally in low-temperature and dry environments without manual cranking. The IP23 protection grade can effectively block dust and splashing rainwater, supporting outdoor open-air use and indoor closed use. The water-cooled heat dissipation system ensures that the unit will not overheat and shut down during long-term full-load operation in high-temperature environments. It is suitable for conventional urban commercial environments, dusty construction sites, humid field environments and other complex scenarios, with low requirements for on-site placement conditions and strong scene compatibility.
