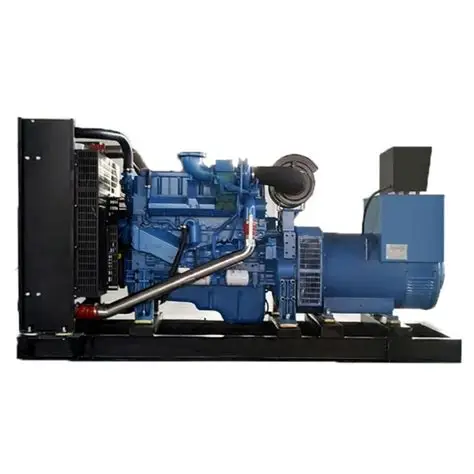

50HZ YUCHAI YC6K500-D30 300kW/375kVA Diesel Generator Set

50HZ YUCHAI  300kW/375kVA Diesel Generator Set

1.Technical Parameter

2. Core Product Features

The YUCHAI YC6K500-D30 300kW/375kVA diesel generator set is a high-end heavy-duty industrial power generation equipment built on Yuchai mature K-series large-displacement engine platform. Optimized for long-hour full-load continuous operation and high-frequency emergency power switching needs, this 375kVA 50Hz brushless diesel generator features sufficient power reserve, fast transient response and ultra-high operational stability. It is widely recognized in the industry as a reliable high-power power supply solution for large industrial parks, municipal key infrastructure and ultra-large commercial complex backup power projects.

2.1 High-strength Heavy-duty Structure with Extreme Durability

This industrial-grade high-power genset adopts the original Yuchai YC6K500-D30 dedicated power engine, equipped with high-rigidity integral cast iron cylinder block, alloy forged steel crankshaft and high-strength connecting rod structure. The built-in piston internal cooling oil channel effectively reduces thermal load and mechanical wear during long-term full-load operation, while the wet removable cylinder liner design greatly simplifies daily maintenance and parts replacement without integral engine disassembly. The inline six-cylinder four-stroke structure matches four-valve per cylinder configuration and professional turbocharged intercooled intake system, ensuring sufficient air inflow and uniform fuel combustion to maintain stable power output under long-duration heavy-load working conditions. Matched with premium brushless self-excited alternator, it completely eliminates common faults of traditional brushed generators such as carbon brush wear, electric spark interference and frequent shutdown maintenance. Supported by H-grade ultra-high temperature resistant insulation materials and IP23 dustproof and rainproof protection capability, the whole unit can operate stably for a long time in high-temperature, humid and dusty industrial harsh environments with extremely low failure rate.

2.2 Bosch Common Rail Control with High Fuel Economy & Low Emission

Powered by imported BOSCH electronic high-pressure common rail fuel injection system, the YC6K500-D30 generator set can intelligently adjust fuel injection volume and timing according to real-time load fluctuations, realizing precise fuel supply and full combustion. With advanced engine calibration technology, the minimum fuel consumption rate is as low as ≤192g/kW·h, and the full-load fuel consumption is stably controlled at 83L/H, delivering excellent energy-saving performance in long-hour continuous power generation scenarios. The optimized intake and exhaust structure effectively reduces exhaust smoke and carbon deposition, fully complying with Non-road National Stage III emission standards. It features low noise, low pollution and low carbon emission during operation, which can smoothly pass environmental assessment inspections of industrial parks, urban key construction projects and large public facilities, meeting the dual demands of high-efficiency power supply and green environmental protection operation.

2.3 Fast Transient Load Response & Strong Environmental Adaptability

Different from ordinary high-power generator sets, this330kW standby power diesel generator has superior transient load response and excellent speed regulation performance. It can quickly cope with instantaneous load surge and grid voltage fluctuation, with voltage regulation accuracy controlled within 0.5%, effectively stabilizing output voltage and frequency to protect precision industrial control equipment and automated production lines from power fluctuation damage. In terms of environmental adaptability, the unit supports reliable cold start at -25℃ without auxiliary heating equipment, adapting to winter outdoor construction and long-term power supply in alpine cold regions. It maintains stable non-derating operation at an altitude of 1500 meters, and the turbocharged intercooled system automatically adjusts air intake pressure and combustion state to adapt to plateau low-pressure working environments. The IP23 professional protection grade effectively blocks outdoor floating dust, sundries and light rain erosion, supporting long-term open-air placement and unattended continuous operation.

2.4 Low Lifecycle Operation Cost & High Comprehensive Cost Performance

The Yuchai K-series heavy-duty engine adopts mature industrial modular design with compact layout and fewer vulnerable parts, effectively reducing daily failure probability and operational risks. The brushless alternator structure saves regular carbon brush replacement and routine debugging work, greatly cutting down daily maintenance workload and technical threshold. Relying on Yuchai’s nationwide complete after-sales service network, users can enjoy convenient spare parts supply and professional after-sales maintenance services, with low later maintenance cost. The ultra-long major overhaul cycle of more than 12000 hours minimizes equipment shutdown maintenance time and long-term investment cost. Whether used for fixed indoor industrial standby power or mobile field heavy-load main power supply, this genset maintains stable performance and long-term operational reliability, occupying a leading cost performance position in the 300kW industrial generator market.

3. Main Application Scenarios

With stable 300kW prime continuous heavy-load power output, 330kW emergency peak power reserve and excellent multi-condition adaptability, the YUCHAI YC6K500-D30 diesel generator set covers large industrial production bases, municipal core infrastructure, ultra-large commercial complexes, field heavy-duty engineering and urban comprehensive emergency power guarantee fields, serving as the preferred high-power power supply equipment for large-scale high-load power demand projects.

3.1 Large Industrial Park & Factory Backup Power

This genset is widely used as core emergency backup power for large manufacturing bases, chemical industrial parks, metallurgical plants, new energy factories and large mining enterprises. For fully automated production lines, heavy mechanical processing equipment and precision industrial instruments that cannot tolerate sudden power outages, this 375kVA industrial diesel generator can start rapidly and switch power supply automatically within seconds after grid power failure. It effectively avoids large-area production shutdown, product scrapping and equipment burnout losses caused by power interruption, ensuring continuous and orderly industrial production operation. Meanwhile, it can serve as the main power supply for remote industrial parks and mining areas with unstable municipal grid power or insufficient power capacity to meet long-term heavy-load power generation demands.

3.2 Ultra-large Commercial & Public Infrastructure Power Guarantee

As a high-reliability heavy-duty emergency power unit, it is the standard standby power configuration for super high-rise office buildings, large shopping mall clusters, five-star hotel groups, tertiary comprehensive hospitals, university campuses and urban public service centers. For key facilities including hospital emergency rescue equipment, building fire linkage systems, large data center monitoring systems and public power distribution systems that require ultra-high power supply stability, the YC6K500-D30 genset provides 24-hour uninterrupted emergency power support, guaranteeing normal operation of public service facilities and eliminating major safety hazards caused by sudden power failures.

3.3 Municipal & Large-scale Field Engineering Main Power Supply

In municipal key projects, large-scale bridge and tunnel engineering, water conservancy and hydropower construction, railway transit engineering and remote field exploration projects where municipal power grid coverage is unavailable or unstable, this Yuchai heavy-duty generator acts as the core main power supply equipment. It steadily provides continuous power for large engineering machinery, high-power welding equipment, field construction assembly lines and temporary office facilities. Its excellent low-temperature startup performance and plateau non-derating operation capability enable reliable operation in complex and harsh field working conditions, making it an essential power guarantee equipment for large engineering construction teams and national infrastructure projects.

3.4 Urban Emergency Rescue & Special Scenario Power Supply

The unit is widely deployed for urban natural disaster emergency relief, power grid overhaul emergency power supply, large communication base station cluster backup power, scenic area peak power supply and remote regional power supply. When extreme weather, grid faults or sudden large-scale power outages occur, it can start up quickly and put into operation to sustain basic urban operation and public service power demands. It also meets high-load temporary power needs for large outdoor exhibitions, temporary engineering construction and emergency rescue sites, featuring strong scenario compatibility and practical value.

4. Core Product Purpose

The core purpose of the YUCHAI YC6K500-D30 300kW/375kVA diesel generator set is to provide stable, energy-saving and durable heavy-load power supply solutions for large industrial and commercial high-load projects. The 300kW prime power is designed for long-term continuous bearing of industrial heavy-load equipment, satisfying daily off-grid main power supply and long-duration continuous power generation demands of large enterprises, mining areas and large-scale engineering projects. The 330kW standby power reserves sufficient peak capacity for sudden power failure emergency response and instantaneous heavy-load power compensation, effectively solving common industry pain points such as municipal grid instability, regional power shortage and economic losses caused by unexpected power outages.

As a premium 50Hz industrial brushless self-excited heavy-duty diesel generator set, it focuses on industrial-grade heavy-load reliability and long-term operational economy. Adopting Yuchai K-series mature large-displacement heavy-duty engine technology and high-stability brushless alternator configuration, it enhances equipment anti-interference capability and heavy-load resistance, while lowering long-term operation and maintenance costs for users. It not only meets high-load power demands of large industrial production and ultra-large commercial complex operation, but also provides solid power guarantee for field engineering construction and urban comprehensive emergency rescue scenarios, standing as a cost-effective high-power generation equipment integrating energy saving, environmental protection, stability and durability.

5. Common FAQ

Q1: What is the practical difference between prime power and standby power of YC6K500-D30 generator set?

Prime power (300kW/375kVA) is the continuous usable rated power of the genset, supporting long-term cyclic full-load operation. It is mainly used for daily main power supply, long-term off-grid power generation and stable heavy-load industrial production operation. Standby power (330kW/412.5kVA) is short-term emergency peak power, specially designed for sudden grid power failure or instantaneous heavy-load surge scenarios. It only allows short-duration emergency operation and cannot run continuously at full load for a long time, otherwise it will accelerate aging of engine core components and shorten the overall service life of the unit. In actual engineering application, professional operators usually control the operating load within 80% of prime power to ensure long-term stable and efficient heavy-load operation.

Q2: Why is brushless self-excited alternator the mainstream configuration for this 300kW high-power genset?

The YC6K500-D30 generator set is equipped with industrial-grade brushless self-excited alternator, which completely abandons the traditional carbon brush and slip ring friction structure. This design eliminates common operational faults such as carbon brush wear, electric spark generation and frequent replacement maintenance during long-term heavy-load operation, greatly reducing daily failure rate and maintenance workload. Matched with H-grade high-temperature resistant insulation and IP23 dustproof and rainproof protection grade, it resists high-temperature aging and external environmental erosion effectively. The voltage regulation accuracy is controlled within ≤0.5%, avoiding voltage and frequency fluctuation and protecting industrial precision electrical equipment and automated production lines. It is highly suitable for long-term unattended heavy-load operation in industrial projects and outdoor working environments.

Q3: What extreme environments can the YC6K500-D30 diesel generator adapt to?

This heavy-duty large-displacement genset has passed strict extreme environment adaptation tests with excellent environmental tolerance. It achieves reliable cold start at -25℃ without auxiliary heating equipment, adapting to winter outdoor construction and industrial power supply in alpine cold regions. The unit maintains stable non-derating power output at an altitude of 1500 meters, and the turbocharged intercooled system can automatically adjust working status to adapt to plateau low-pressure environments. Equipped with IP23 professional protection structure, it can effectively resist outdoor dust, moisture and light rain erosion, supporting long-term open-air placement and unattended operation. It is fully competent for various complex working scenarios such as industrial parks, municipal engineering and field construction.
