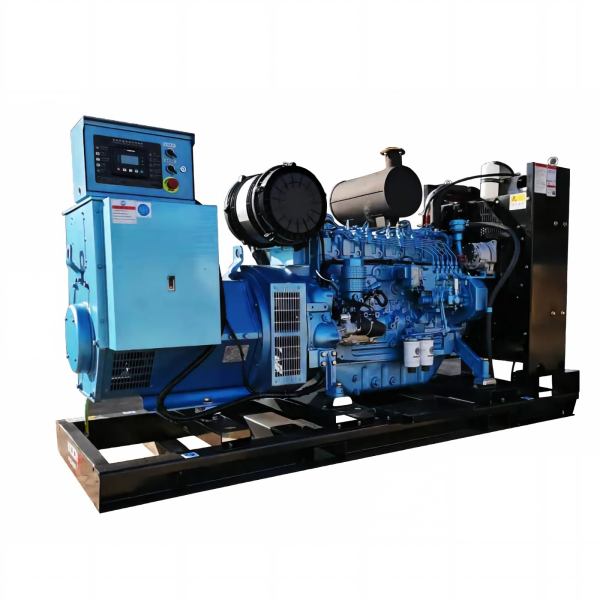

50HZ YUCHAI YC6MJ500L-D21 300kW/375kVA Diesel Generator Set

50HZ YUCHAI  300kW/375kVA Diesel Generator Set

1.  Technical Parameter

2. Core Product Features

The YUCHAI YC6MJ500L-D21 300kW/375kVA diesel generator set is a cost-effective mid-to-large industrial power generation solution upgraded based on Yuchai mature MJ-series heavy-duty engine platform. Optimized for long-hour continuous heavy-load operation and frequent emergency power switching needs, this 375kVA 50Hz brushless diesel generator delivers steady power output, improved fuel efficiency and strong environmental adaptability. It is widely adopted in industrial production, municipal engineering, commercial facility backup power and field construction power supply scenarios, standing as one of the most reliable 300kW industrial generator models in the current market.

2.1 Heavy-duty Reinforced Structure with Long-term Operational Stability

Powered by the original Yuchai YC6MJ500L-D21 dedicated power engine, this industrial-grade genset adopts an inline six-cylinder four-stroke structure with high-rigidity cast iron cylinder block and alloy forged crankshaft. The built-in piston internal cooling system and wet removable cylinder liner effectively reduce thermal wear during prolonged full-load operation, greatly extending the service life of core mechanical components. Compared with ordinary generator sets, this model features optimized structural rigidity and anti-fatigue performance, ensuring stable operation under long-duration heavy-load working conditions. Matched with high-quality brushless self-excited alternator, it completely avoids common failures of traditional brushed generators such as carbon brush aging, electric spark interference and frequent shutdown maintenance. Equipped with H-grade high-temperature resistant insulation materials and IP23 dustproof and rainproof protection grade, the whole unit can operate continuously and stably in high-temperature, humid and dusty industrial environments with extremely low failure rates.

2.2 Optimized Common Rail System with Lower Full-load Fuel Consumption

This Yuchai diesel generator is equipped with a mature electronic high-pressure common rail fuel injection system, which supports intelligent dynamic adjustment of fuel injection volume and timing according to real-time load changes. Precision fuel control realizes full fuel combustion and reduces unnecessary fuel waste. After professional factory calibration, the full-load fuel consumption is controlled at 81.4L/H, offering better energy-saving performance compared with conventional 300kW diesel generators. With four-valve per cylinder design and turbocharged intercooled intake technology, the engine achieves sufficient air intake and balanced combustion state, effectively lowering exhaust smoke and carbon deposition. The unit fully complies with Non-road National Stage III emission standards, featuring low noise and low pollution during operation, which can easily pass environmental assessment inspections for industrial parks and urban key construction projects.

2.3 Excellent Transient Response and Multi-scenario Environmental Adaptability

As a high-performance330kW standby power diesel generator, this unit has outstanding transient load response capability and ultra-high power supply stability. The voltage regulation accuracy is controlled within 0.5%, which can quickly respond to instantaneous grid load surges and voltage fluctuations, stabilize three-phase voltage and frequency output, and effectively protect precision industrial equipment, automated production lines and public electrical systems from power fluctuation damage. In terms of environmental adaptation, it supports reliable cold start at -25℃ without auxiliary heating devices, perfectly adapting to winter outdoor construction and power supply in alpine regions. It maintains non-derating stable operation at an altitude of 1500 meters, and the turbocharged intercooled system can automatically adjust intake pressure and combustion state to adapt to plateau low-pressure working environments. The IP23 professional protection structure can resist outdoor floating dust, sundries and light rain erosion, supporting long-term open-air placement and unattended automatic operation.

2.4 Low Lifecycle Maintenance and Outstanding Cost Performance

The Yuchai MJ-series heavy-duty engine adopts modular industrial design with compact layout and fewer vulnerable parts, effectively reducing daily failure risks and operational maintenance pressure. The brushless alternator structure eliminates regular carbon brush replacement and routine debugging work, greatly cutting down daily maintenance workload and long-term operational costs. Backed by Yuchai’s nationwide after-sales service system and complete spare parts supply chain, users can obtain convenient technical support and maintenance services with low after-sales thresholds. The ultra-long major overhaul cycle of more than 12000 hours minimizes equipment shutdown maintenance time and improves overall operational efficiency. Whether used for fixed indoor standby power or mobile field main power supply, this 300kW industrial diesel generator maintains stable long-term performance and has obvious comprehensive cost performance advantages in medium and high-power generator equipment.

3. Main Application Scenarios

Benefiting from stable 300kW prime continuous power, 330kW emergency peak power reserve and excellent multi-condition adaptability, the YUCHAI YC6MJ500L-D21 diesel generator set covers industrial production, municipal infrastructure, commercial real estate, field engineering and urban emergency power guarantee fields. It is widely recognized as reliable emergency backup power and off-grid main power supply equipment for medium and large-scale high-load projects.

3.1 Industrial Park and Manufacturing Factory Backup Power

This 375kVA three-phase industrial diesel generator is widely used as core emergency backup power for large processing factories, chemical industrial parks, metallurgical enterprises, new energy workshops and mining bases. For fully automated production lines, heavy mechanical processing equipment and precision industrial control instruments that cannot withstand sudden power outages, the unit can start quickly and complete automatic power switching within seconds after municipal grid failure. It effectively avoids large-scale production shutdowns, product scrapping and equipment burnout losses caused by power interruptions, ensuring continuous and orderly industrial production. In remote industrial zones and mining areas with unstable grid power or insufficient power capacity, it can also serve as long-term off-grid main power supply to meet continuous heavy-load power generation demands.

3.2 Large Commercial and Public Infrastructure Power Guarantee

With ultra-stable power output and high operational safety, the genset is an ideal standby power solution for super high-rise buildings, large shopping mall clusters, commercial plazas, five-star hotels, tertiary hospitals, university campuses and urban public service centers. It provides 24-hour uninterrupted emergency power support for key facilities such as hospital emergency rescue systems, building fire linkage equipment, data center monitoring systems and public power distribution systems. It effectively eliminates potential safety hazards and economic losses caused by sudden power failures, ensuring stable operation of urban public infrastructure and large commercial facilities.

3.3 Municipal and Field Heavy-duty Engineering Main Power Supply

In municipal key projects, bridge and tunnel construction, water conservancy and hydropower engineering, railway transit construction and remote field exploration projects without stable municipal grid coverage, this Yuchai heavy-duty generator acts as the primary power supply equipment. It can steadily provide continuous power for large engineering machinery, high-power welding equipment, field construction assembly lines and temporary office living facilities. Its excellent low-temperature startup performance and plateau non-derating operation capability enable stable operation in complex and harsh field environments, making it essential power guarantee equipment for large-scale infrastructure construction teams and field engineering projects.

3.4 Urban Emergency Rescue and Special Scenario Power Supply

The unit is commonly deployed for urban natural disaster emergency relief, power grid overhaul emergency power supply, large communication base station cluster backup power, scenic area peak power supply and remote rural regional power supply. When extreme weather, grid faults or large-scale power outages occur, it can start up rapidly and put into operation to guarantee basic urban operation and public service power demands. It also meets high-load temporary power needs for large outdoor exhibitions, temporary engineering construction and emergency rescue sites, featuring strong scenario compatibility and practical value.

4. Core Product Purpose

The core purpose of the YUCHAI YC6MJ500L-D21 300kW/375kVA diesel generator set is to provide stable, energy-saving and low-maintenance heavy-load power supply solutions for medium and large industrial and commercial projects. The 300kW prime power rating is specially designed for long-term continuous heavy-load operation, fully meeting daily off-grid main power supply and long-duration continuous power generation requirements of industrial enterprises, mining areas and large engineering projects. The 330kW standby power reserves sufficient peak power capacity to cope with sudden power failure emergencies and instantaneous heavy-load power surges, solving common industry pain points such as municipal grid instability, regional power shortage and economic losses caused by unexpected power interruptions.

As a practical and cost-effective 50Hz brushless self-excited industrial diesel generator set, this model focuses on industrial-grade operational reliability and long-term economy. Adopting Yuchai mature MJ-series heavy-duty engine technology and high-stability brushless alternator configuration, it improves equipment anti-interference ability and harsh environment resistance while reducing daily operation and maintenance costs. It not only satisfies high-load power guarantee demands for industrial production and commercial facility operation, but also provides reliable power support for field engineering construction and urban emergency rescue scenarios, serving as a mainstream high-power power generation device that balances stability, energy saving and cost performance.

5. Common FAQ

Q1: What is the practical difference between prime power and standby power of YC6MJ500L-D21 generator set?

Prime power (300kW/375kVA) is the continuous usable rated power of the genset, supporting long-term cyclic full-load operation. It is mainly used for daily main power supply, long-term off-grid power generation and stable heavy-load industrial production operation. Standby power (330kW/412.5kVA) belongs to short-term emergency peak power, only applicable to sudden grid power failure or instantaneous heavy-load surge scenarios. It does not support long-term continuous full-load operation, and prolonged overload operation will accelerate aging of engine core components and shorten the overall service life of the unit. In actual engineering applications, professional operators usually control the operating load within 80% of prime power to ensure long-term stable and efficient operation.

Q2: What are the actual advantages of brushless self-excited alternator on YC6MJ500L-D21 genset?

The YC6MJ500L-D21 generator set is equipped with industrial-grade brushless self-excited alternator, which completely cancels the traditional carbon brush and slip ring friction structure. This design fundamentally eliminates frequent faults such as carbon brush wear, electric spark generation and regular replacement maintenance during long-term heavy-load operation, greatly reducing daily failure rate and maintenance workload. Matched with H-grade high-temperature resistant insulation and IP23 dustproof and rainproof protection grade, the alternator can resist high-temperature aging and external environmental erosion effectively. The voltage regulation accuracy is controlled within ≤0.5%, which avoids voltage and frequency fluctuation and protects precision electrical equipment and automated production lines from power quality damage. It is very suitable for long-term unattended heavy-load operation in industrial workshops and outdoor harsh environments.

Q3: What working environments can the YC6MJ500L-D21 diesel generator adapt to?

This Yuchai heavy-duty industrial genset has excellent environmental tolerance after strict extreme environment tests. It can achieve reliable cold start at -25℃ without auxiliary heating equipment, adapting to winter outdoor construction and industrial power supply in alpine cold regions. The unit maintains stable non-derating power output at an altitude of 1500 meters, and the turbocharged intercooled system can automatically adjust air intake and combustion state to adapt to plateau low-pressure working conditions. With IP23 professional dustproof and rainproof protection capability, it can effectively resist outdoor dust, moisture and light rain erosion, supporting long-term open-air placement and unattended continuous operation for industrial, municipal and field engineering scenarios.
