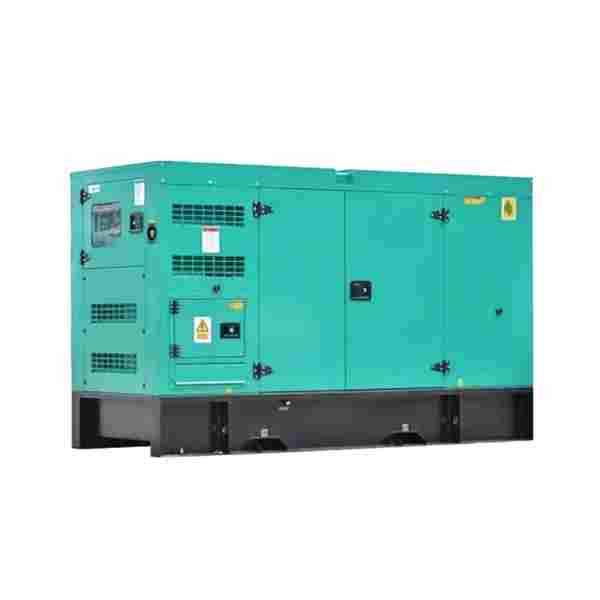

50HZ Yuchai YC6TH1320-D31 800kW/1000kVA Diesel Generator Set

50HZ Yuchai   800kW/1000kVA Diesel Generator Set

1.Technical Parameters

2. Core Product Features

The Yuchai YC6TH1320-D31 800kW/1000kVA diesel generator set is a large-scale heavy-duty power generation equipment built on Yuchai’s mature TH series high-load engine platform. As a hot-selling 50Hz industrial diesel generator set for large industrial and engineering projects, it adopts twin-turbo intercooled technology and electronically controlled fuel injection system. This 1000kVA diesel generator features large power reserve, ultra-strong load impact resistance and stable long-term continuous operation performance. It solves the power supply instability problem of ordinary high-power units under heavy-load working conditions, with low comprehensive failure rate and convenient daily maintenance, and is widely recognized as a reliable emergency standby and off-grid main power supply equipment in the industry.

2.1 Twin-Turbo High-Power Output, Excellent Heavy-Load Adaptability

Equipped with genuine Yuchai YC6TH1320-D31 dedicated power engine, this unit adopts advanced 6-cylinder four-valve twin-turbocharged intercooled structure, which greatly improves intake efficiency and power response speed compared with single-turbo generator sets. It stably provides 800kW long-term uninterrupted prime power and supports 880kW short-time emergency standby power output, with sufficient power reserve to cope with instantaneous load surge in heavy industrial production. In actual operation, it can maintain stable 50Hz frequency and 400V three-phase voltage output without flicker, frequency drift or sudden shutdown. It fully meets the ultra-high load operation demand of large automated production lines, heavy mining equipment and large-scale engineering mechanical facilities, and is suitable for long-term high-load continuous power supply scenarios.

2.2 Electronic Precise Fuel Control, Stable Fuel Economy

This 800kW Yuchai diesel generator set is equipped with an electronic controlled monomer pump fuel supply system, which can intelligently adjust fuel injection volume and timing according to real-time load changes, realizing precise oil-gas mixing and full combustion. The full-load fuel consumption is stably controlled at 216.4L/H, maintaining balanced fuel economy while outputting ultra-high power. The optimized combustion chamber structure reduces heat loss and invalid fuel waste, effectively cutting daily operating fuel costs for enterprises. Meanwhile, the TH series engine adopts serialized modular design with high parts versatility, avoiding the trouble of difficult accessory matching, and greatly reducing the difficulty and cost of later equipment maintenance and parts replacement.

2.3 High Safety and Durability, Adapt to Harsh Working Conditions

Matched with industrial-grade brushless self-excited alternator, the unit cancels traditional carbon brush and slip ring friction components, fundamentally eliminating mechanical wear, electric spark and electromagnetic interference during operation. The whole machine runs stably and safely, and will not interfere with precision instruments, communication equipment and flammable and explosive production environments. The H-grade ultra-high temperature resistant insulation material can resist long-term high-load and high-temperature aging, effectively preventing insulation breakdown, electric leakage and other common electrical faults. The IP23 professional dust-proof and splash-proof protection grade enables the unit to adapt to open-air construction sites, dusty industrial workshops, humid outdoor machine rooms and other complex working environments. The high-strength cast iron engine body and integral forged crankshaft ensure strong structural rigidity, low operation vibration and ultra-long service life.

2.4 Intelligent Full Protection System, Low Maintenance Threshold

This 880kW standby diesel generator set is equipped with a complete intelligent monitoring and fault self-protection system, covering overvoltage, undervoltage, overload, overspeed, high water temperature, low oil pressure and automatic shutdown protection functions. It can monitor core operating data such as unit temperature, oil pressure, voltage and frequency in real time, and automatically alarm and cut off power in abnormal conditions, effectively protecting equipment circuits and user property safety. The reasonable internal layout simplifies daily inspection and maintenance procedures. On-site operators can complete filter replacement, oil quality detection, circuit debugging and daily dust cleaning without professional technical operation, greatly reducing daily equipment management pressure and after-sales maintenance workload.

3. Main Application Scenarios

With the advantages of ultra-large power reserve, strong operational stability, fast load response and wide environmental adaptability, the Yuchai YC6TH1320-D31 large-power diesel generator set covers multiple high-standard power demand fields. It can be used as both long-term off-grid main power supply and municipal grid emergency backup power supply, and is widely applied in heavy industry production, municipal key infrastructure, large commercial supporting and large-scale field engineering construction.

3.1 Heavy Industry, Mining and Chemical Industrial Parks

This 1000kVA industrial diesel generator set is the core power guarantee equipment for large manufacturing factories, mining enterprises, metallurgical processing plants and chemical industrial parks. These heavy-duty scenarios have huge daily power consumption and extremely strict requirements for power supply continuity and stability. The 800kW continuous prime power can support 24-hour uninterrupted operation of heavy mechanical equipment, automated assembly lines and industrial supporting facilities. When the municipal grid is cut off, limited in power or fails suddenly, the 880kW high standby power can quickly take over the power supply, avoid large-area production shutdown and equipment damage, and effectively reduce economic losses caused by power interruption.

3.2 Municipal Key Public Infrastructure

It is widely used in large data center clusters, communication hub base stations, tertiary hospitals, airport and railway supporting facilities, and municipal emergency engineering projects. As key infrastructure supporting urban social operation, these scenarios have zero tolerance for power failure. Sudden power interruption will lead to core data loss, medical rescue stagnation and public facility paralysis. This Yuchai high-power generator set features quick start and seamless power switching, which can continuously supply stable and reliable power for precision medical equipment, server room systems, monitoring equipment and public service facilities, ensuring the stable operation of urban core infrastructure.

3.3 Large Commercial Complexes and Super High-Rise Buildings

For large shopping malls, commercial complexes, super high-rise office buildings and large-scale residential communities, this generator set serves as standard fire emergency and backup power supply equipment, fully complying with national building fire safety acceptance standards. In case of grid power failure, planned power maintenance and peak power limitation in peak power consumption periods, the unit can start instantly to supply stable power for fire linkage systems, building elevators, emergency lighting, security monitoring and weak current systems, ensuring building fire safety and personnel evacuation safety in emergency situations.

3.4 Off-Grid Field Engineering and Special Scenarios

In remote road and bridge construction sites, new energy project bases, large-scale breeding parks, field operation teams and national defense engineering without stable municipal grid coverage, this 50Hz Yuchai diesel generator set can be used as the main power supply equipment. Relying on excellent high-temperature resistance, dust resistance and splash resistance performance, it can operate stably in harsh outdoor environments, providing continuous and stable power for field construction machinery, living supporting equipment and professional production facilities, solving the power supply blank problem of large-scale off-grid engineering projects.

4. Core Product Uses

As a flagship large-power heavy-duty generator set of Yuchai TH series, the YC6TH1320-D31 unit focuses on emergency power backup, off-grid continuous power supply, grid peak shaving and special scenario all-weather power guarantee, which can flexibly meet the diversified high-standard power demand of industrial and commercial users.

4.1 Municipal Grid Emergency Standby Power Supply

Emergency power backup is the most mainstream application of the 800kW prime power diesel generator set. In daily standby state, the unit keeps hot standby. Once the municipal power grid trips, fails or undergoes planned overhaul, the equipment can start quickly and complete seamless power switching in a short time. It focuses on protecting core production equipment and key public facilities, avoiding safety accidents and economic losses caused by sudden power interruption, and providing reliable emergency power support for various high-demand scenarios.

4.2 Long-Term Off-Grid Main Power Supply

In remote areas, field operation sites and industrial zones with insufficient grid capacity and unstable voltage, the 1000kVA continuous stable power output can be used as long-term main power supply. With excellent continuous operation stability and strong load resistance, it can support 24-hour uninterrupted operation of production and living equipment, completely replacing municipal grid power supply, and fully meeting the long-term high-power consumption demand of off-grid engineering and large-scale production scenarios.

4.3 Power Grid Peak Shaving and Voltage Stabilization

In industrial areas with tight grid power supply and obvious peak power shortage, the unit can assist the municipal grid in peak shaving operation. During peak power consumption periods, it supplements grid power shortage, stabilizes 50Hz frequency and 400V rated voltage, suppresses power fluctuation and voltage drop, effectively protects precision electrical equipment and automated production lines from damage caused by unstable power supply, and improves the overall stability of regional power consumption.

4.4 All-Weather Power Guarantee for Special Industries

Relying on H-grade high-temperature resistance insulation and IP23 high protection grade, the unit adapts to various harsh working conditions such as high temperature, humidity and dust. It can provide professional all-weather power guarantee for municipal emergency rescue, national defense engineering, large-scale event power guarantee and industrial breeding industries, meeting the high-reliability power demand of special industry scenarios.

5. Common FAQ

Q1: What is the practical difference between prime power and standby power of YC6TH1320-D31 generator set?

The 800kW/1000kVA prime power is continuous rated power, which supports long-term full-load stable operation and is suitable for daily off-grid main power supply and long-time continuous load operation. The 880kW/1100kVA standby power is emergency peak power, only used for short-time power supply when the municipal grid fails. According to industry specifications, the cumulative annual use time of standby power shall not exceed 500 hours, and long-term full-load operation is prohibited. Frequent overuse of standby power will accelerate engine mechanical wear, increase equipment failure rate and significantly shorten the overall service life of the generator set.

Q2: Why is brushless self-excited alternator the preferred configuration for this large-power Yuchai generator set?

Different from traditional brushed alternators, the brushless self-excited structure cancels carbon brushes and slip ring friction components, fundamentally eliminating mechanical wear, electric spark and electromagnetic interference during high-power operation. For 1000kVA large-power units, brushed structures are prone to high-temperature aging and frequent failures under long-term heavy load, while brushless alternators have lower failure rate and higher operational safety. Meanwhile, it removes the need for regular carbon brush inspection and replacement, only requiring daily dust cleaning and oil circuit inspection, which greatly reduces long-term operation and maintenance costs for users.

Q3: How to effectively control fuel consumption of YC6TH1320-D31 800kW diesel generator set in daily operation?

First, avoid long-term no-load idle and light-load operation, and keep the unit operating load stable at 60%-80% of rated power, which is the most energy-efficient working range for this TH series large-power unit. Second, regularly replace air filters, diesel filters and oil filters to ensure sufficient air intake and full fuel combustion of the twin-turbo system. Third, regularly check the closed-cycle water cooling system and fuel injection system to avoid power attenuation and increased fuel consumption caused by poor heat dissipation and abnormal fuel supply. In addition, using qualified standard diesel oil and special lubricating oil can effectively optimize combustion efficiency and reduce comprehensive operating fuel consumption.
